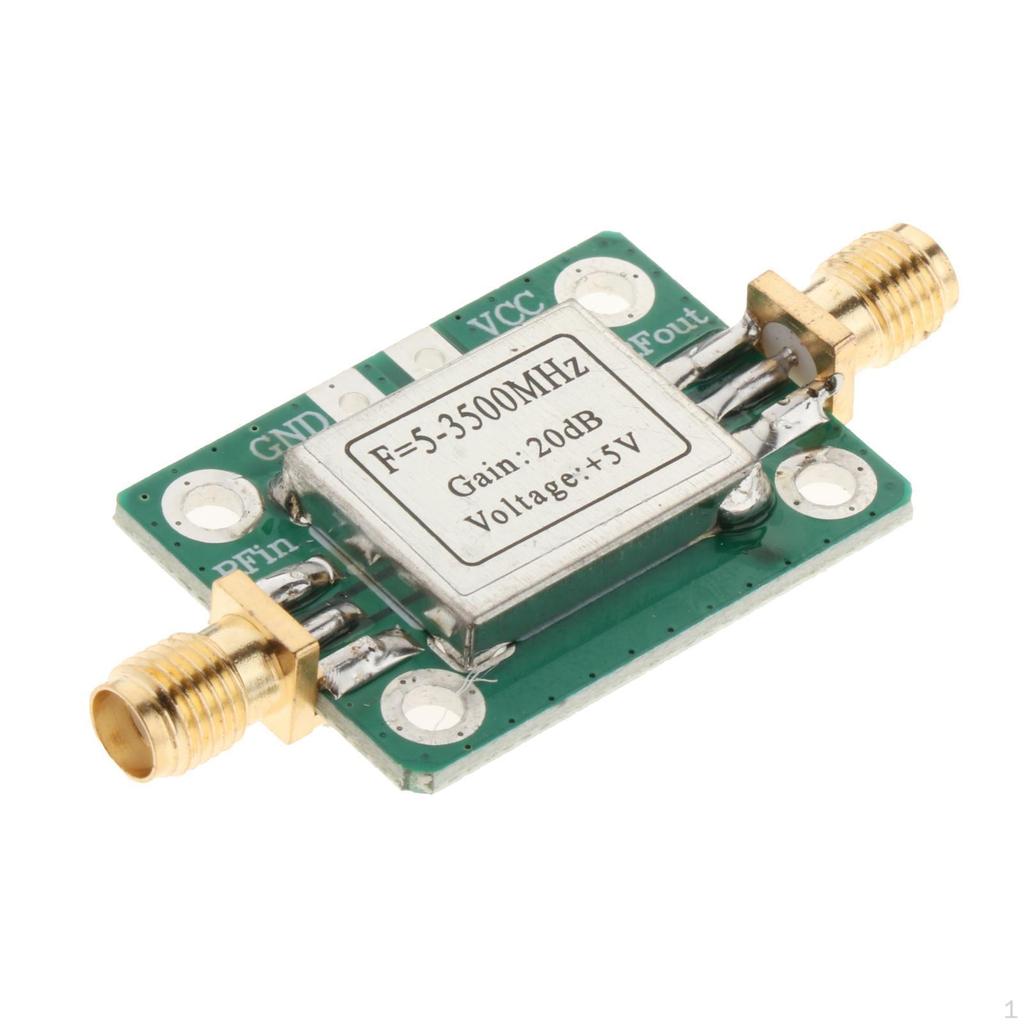

5-3500MHz RF Wideband Amplifier Switch Module for FM HF VHF Ham Radio

Description:

- RF broadband low noise amplifier LNA with shield 5-3500MHz Gain 20dB Shortwave FM radio Remote receiver.

- This provides communication between the receiver and the transmitter.

- This product with wide frequency range, high gain, low noise figure.

- The amplifier operates from a single +5V supply, good stability.

- Suitable for fixed gain amplification of various RF signals.

Specification:

- Material: PCB Circuit Board

- Working Frequency: 5-3500MHz

- Amplification Gain: 20dB

- Noise Figure: 1.3dB

- Working Current: 80mA (5V)

- Power Supply Voltage: 3.3-6VDC

- System Impedance: 50Ω

- Large Output Power: + 20dBm (100mW) @ 1dB Compression Point Size Chart: 5.2x2.4cm/2.05x0.94inch

Package Includes: 1 Piece RF Amplifier Module
