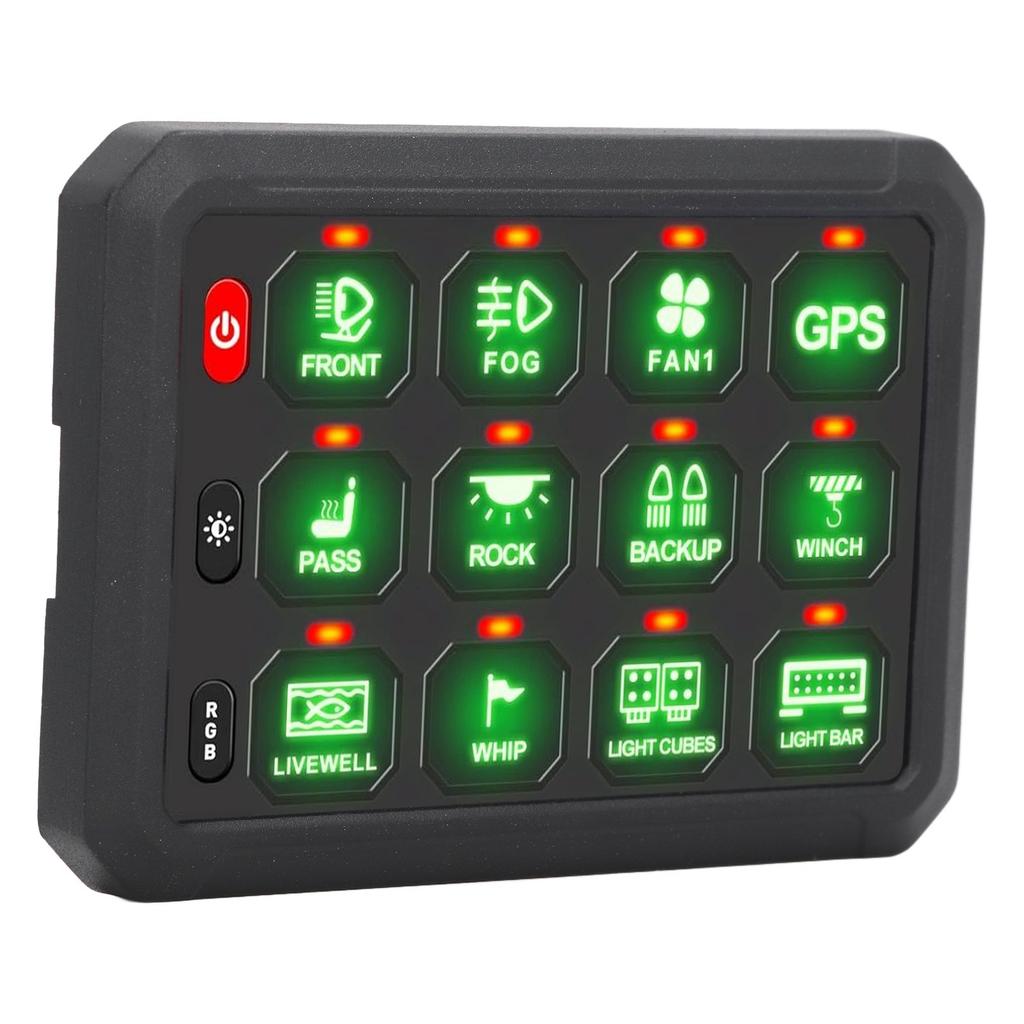

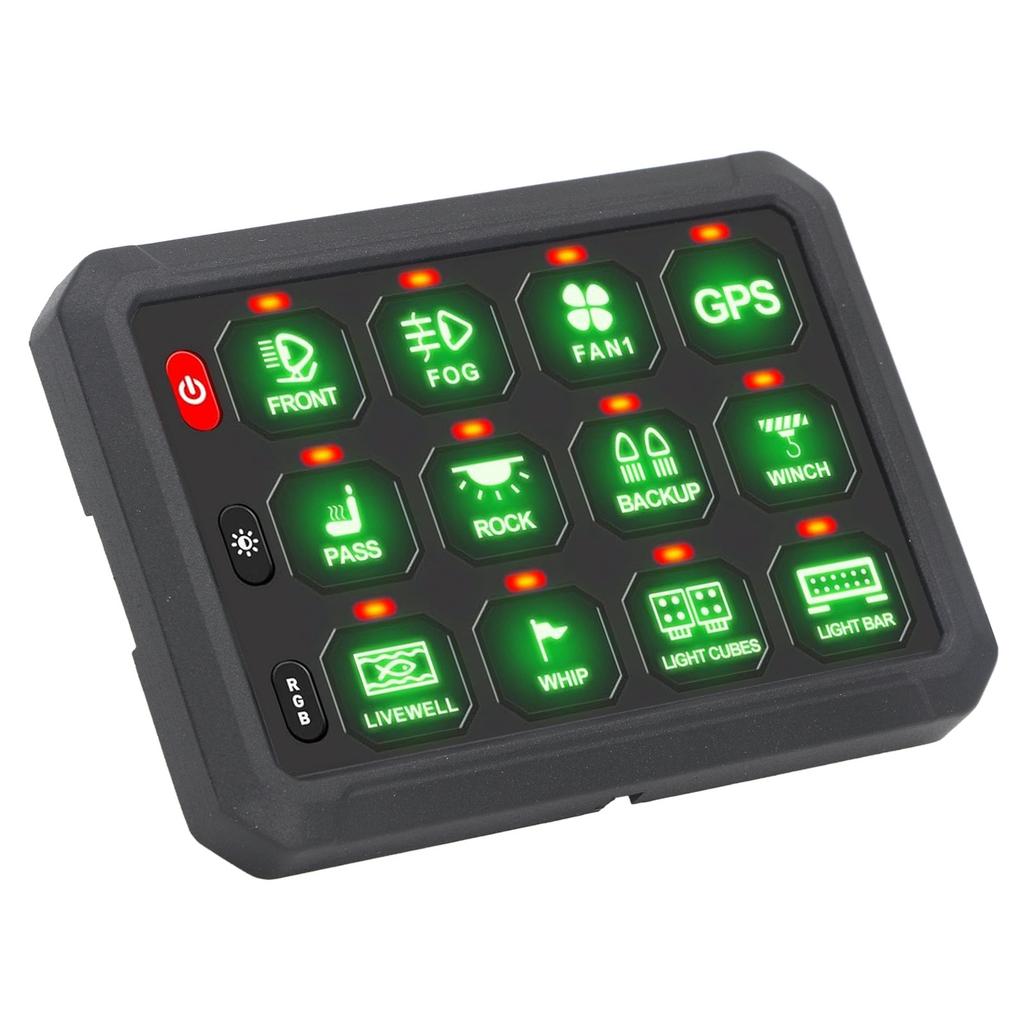

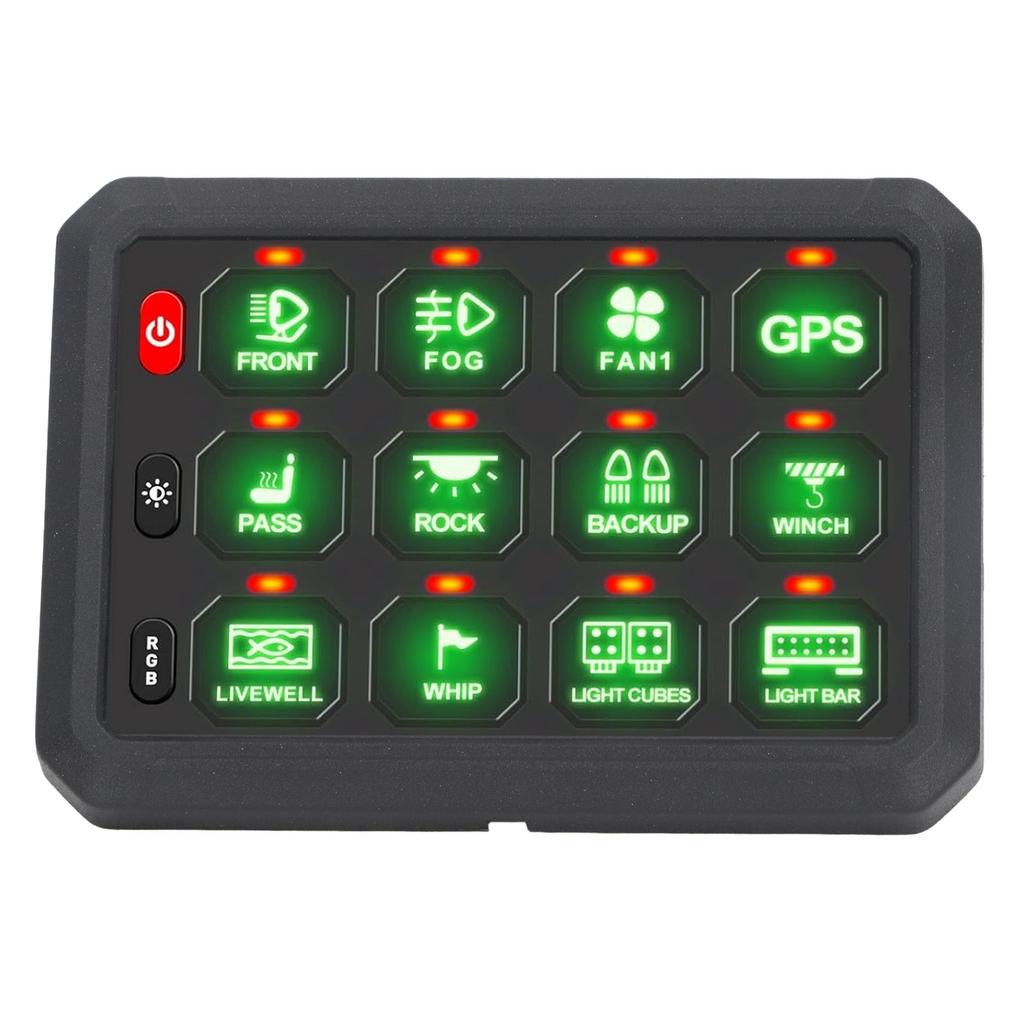

12 Gang Switch Panel Bluetooth RGB Button Circuit Control Relay System with 100A Circuit Breaker DC12‑24V

Feature: 1. [12 Gang Switch Panel] Features on off button with memory function, adjustable brightness button, RGB color mixing button. Silicone buttons enable blind operating, enhance the hand feel. 2. [APP Control] Not only can you control your car accessories through this switch panel, but you can also control your car accessories through the APP, customize panel colors, adjust brightness, etc. 3. [Multiple Lighting Modes] RGB switch panel allows you to choose from 11 colors to match your vehicle and mood. RGB buttons can switch among 8 single colors (red, orange, yellow, green, cyan, blue, purple, white) and long press to switch among gradient, jumping, and breathing. 5 level brightness adjustment (100 percent, 75percent , 50percent , 25percent , 10percent ) for comfortable visual. 4. [Upgraded and Larger] The 12 gang switch panel has been upgraded to 5 inch and optimized various specifications to make the panel safer and more convenient, with DC 12 to 24V operating voltage, 80A maximum current, 960W (12V), 1920W (24V) maximum rated power. 5. [Safer] The switch panel design can withstand a wide temperature range of ‑40 celsius to 85 celsius , with IP66 proof rating, ensuring dependable performance in various conditions. 6. [Simplified Power Control] Experience easy power control with our 12 gang switch panel. Easily install with the included 5 brackets and screws for flexible placement in vertical and horizontal directions. Customize settings according to your preferences, optimize auxiliary functions and features. Choose between ACC or battery connection with convenient button switch. 7. [Fully Compatible] This RGB 12 gang switch panel allows you to easily control up to 12 different electrical devices, such as LED lights, fans, etc. Suitable for 12 to 24V vehicles, trucks, off road vehicles, DC boats, ATV UTV, yachts, etc. Specification: Item Type: 12 Gang Switch Panel Material: ABS, Silicone Voltage: 12 24VDC Power: 960W 12V, 1920W 24V Maximum Current: 80A Operating Temperature: 40 celsius to 85 celsius

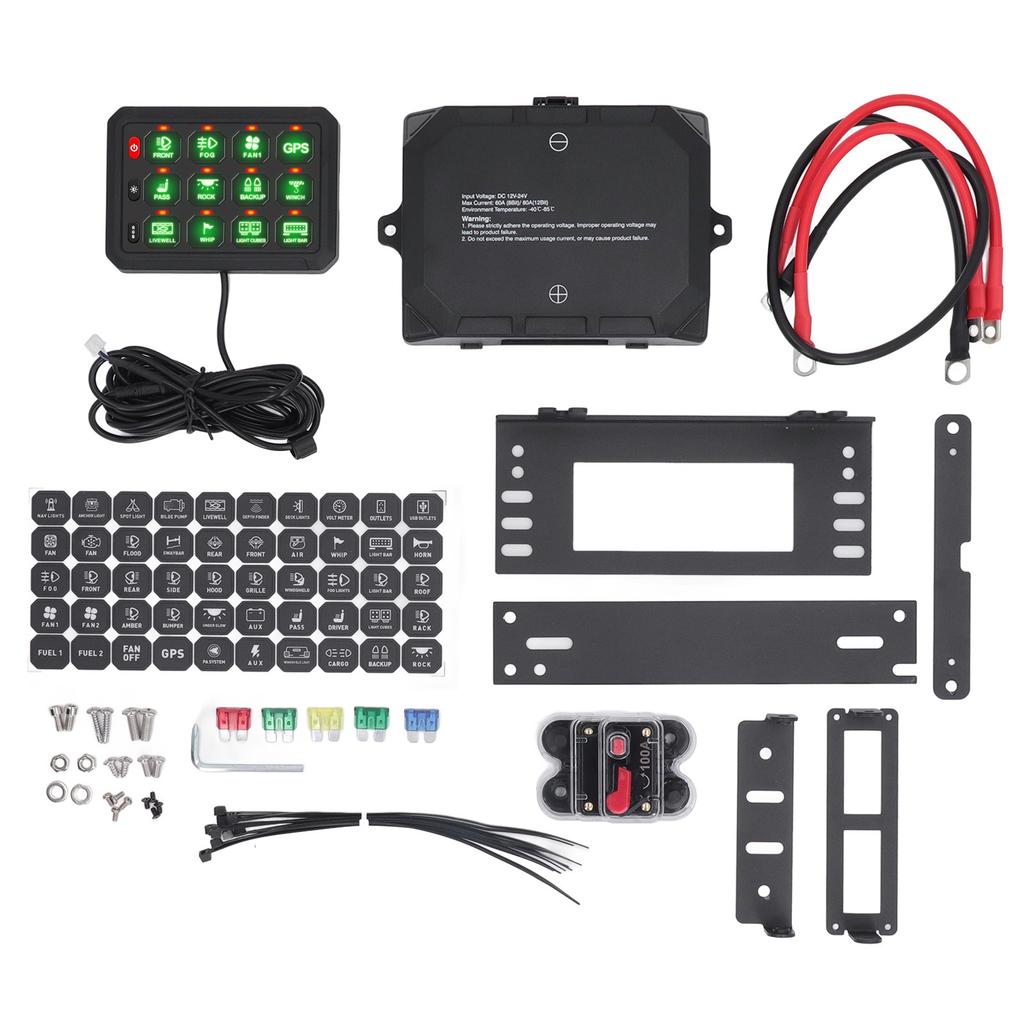

12 Way Fuse Box Circuit 1 Circuit 2 Circuit 3 Circuit 4 Circuit 5 Circuit 6 30A 30A 20A 15A 10A 10A Circuit 7 Circuit 8 Circuit 9 Circuit 10 Circuit 11 Circuit 12 30A 30A 20A 15A 10A 10A . Package List: 1 x 12 Gang Switch Panel 1 x Circuit Control Box 1 x 100A Circuit Breaker 3 x Wire Harness 10 x Cable Ties 5 x Mounting Bracket 18 x Mounting Screws 2 x Nuts 2 x Washers 1 x Wrench 5 x Fuses 1 x Sticker 1 x User Manual
