Feature:

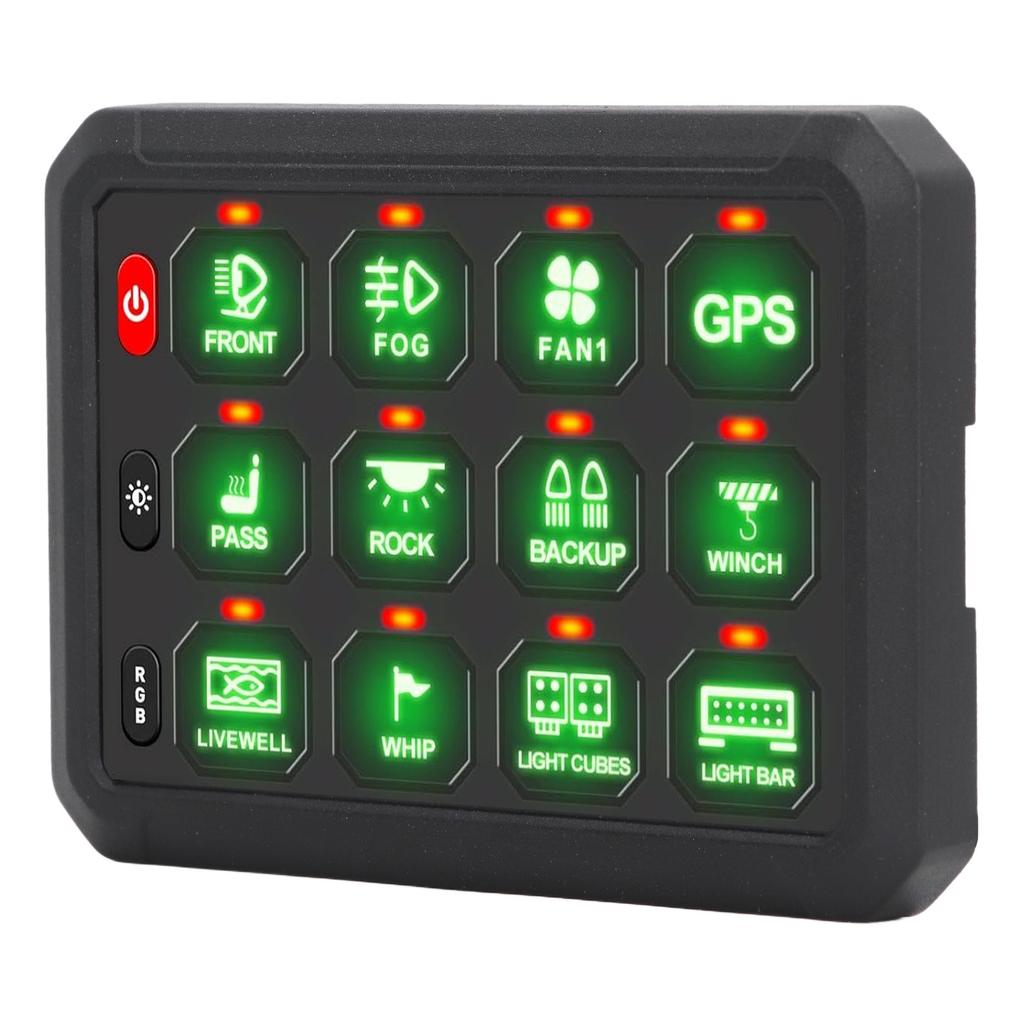

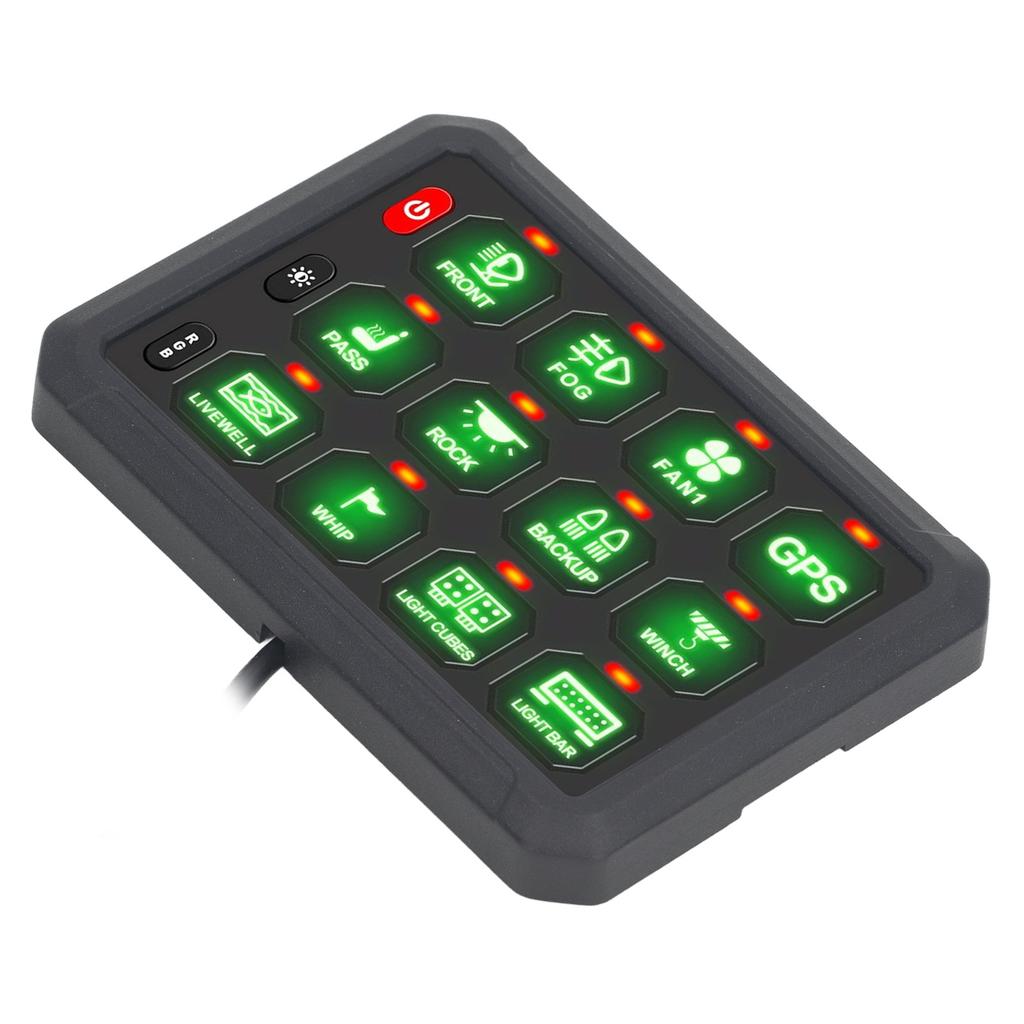

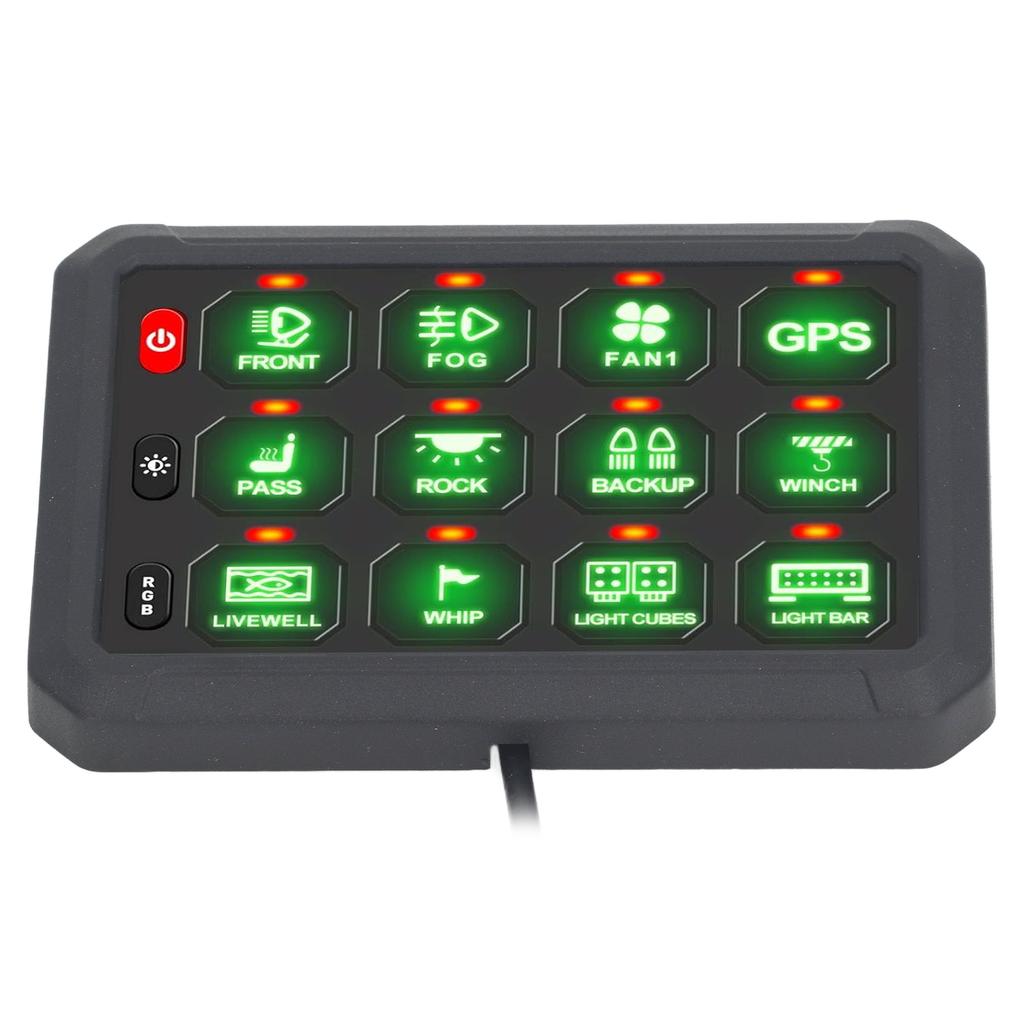

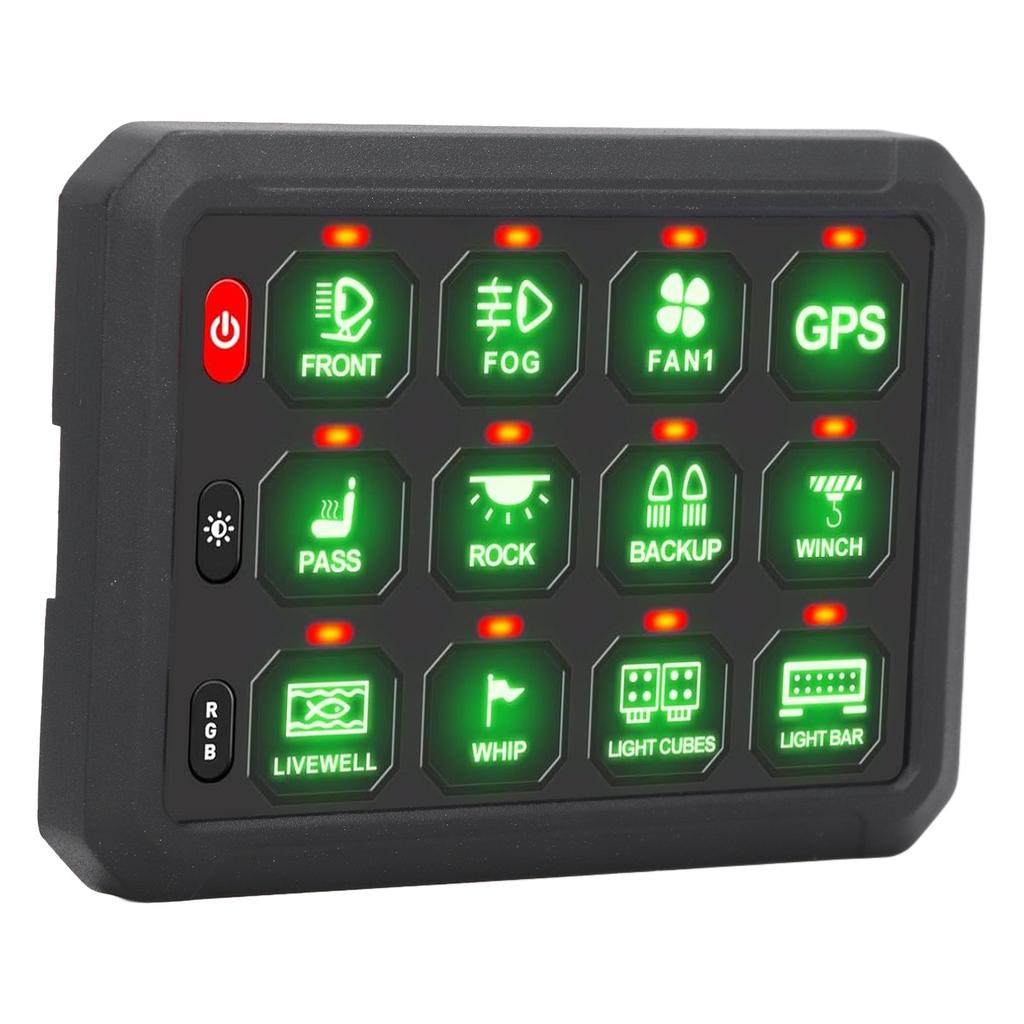

1. Multifunctional: This auxiliary circuit control box has 3 silicone buttons for more comfortable operation, and the button functions include on and off button with memory function, adjustable brightness button (5 levels), and RGB colour mixing button.
2. Multiple Light Modes: This switch panel features multiple light modes that allow you to choose from 11 colours to match your vehicle and your mood. The RGB button not only allows you to switch between 8 single colours (red, orange, yellow, green, cyan, blue, purple and white), but a long press allows you to switch between fade, jump, breathe. And the 5 levels of brightness adjustment are (100percent , 75percent , 50percent , 25percent , 10percent ) to provide you with a comfortable visual brightness.
3. IP66 Waterproof: This RGB 12 gang switch panel is made of excellent quality ABS and silicone material, which can withstand a wide temperature range of ‑40 celsius ‑85 celsius and has an IP66 waterproof rating to ensure reliable performance under various conditions.
4. Easy To Use: This 12 gang switch panel is simple to use and easily mounted with the included 5 brackets and screws, allowing for flexible placement in both vertical and horizontal orientations. Customise the settings to your liking to optimise auxiliary functions and features. You can choose between ACC or battery connection.
5. Wide Application: This auxiliary switch panel has a wide range of applications and allows you to easily control up to 12 different LED lights or electrical devices, such as LED fog lights, LED light bars, off road lights, fans and more. It is suitable for 12V‑24V cars, trucks, off road vehicles, DC boats, ATV, UTVs, yachts, RVs and more. Includes very detailed instruction manual, no need to worry about installation.
Specification:
Item Type: Switch Panel
Material: ABS, Silicone
Voltage: 12 24VDC
Power: 960W 12V, 1920W 24V
Maximum Current: 80A
Operating Temperature: 40 degrees C 85 degrees C
12 Gang Fuse Box:
Line 1: 30A
Line 2: 30A
Line 3: 20A
Line 4: 15A
Line 5: 10A
Line 6: 10A
Line 7: 30A
Line 8: 30A
Line 9: 20A
Line 10: 15A
Line 11: 10A
Line 12: 10A.
Package List:
1 x 12 Gang Switch Panel
1 x Circuit Control Box
1 x 100A Circuit Breaker
3 x Wiring Harness
10 x Ties
5 x Mounting Brackets
18 x Mounting Screws
2 x Nuts
2 x Gaskets
1 x Wrench
5 x Fuses
1 x Sticker
1 x Manual
