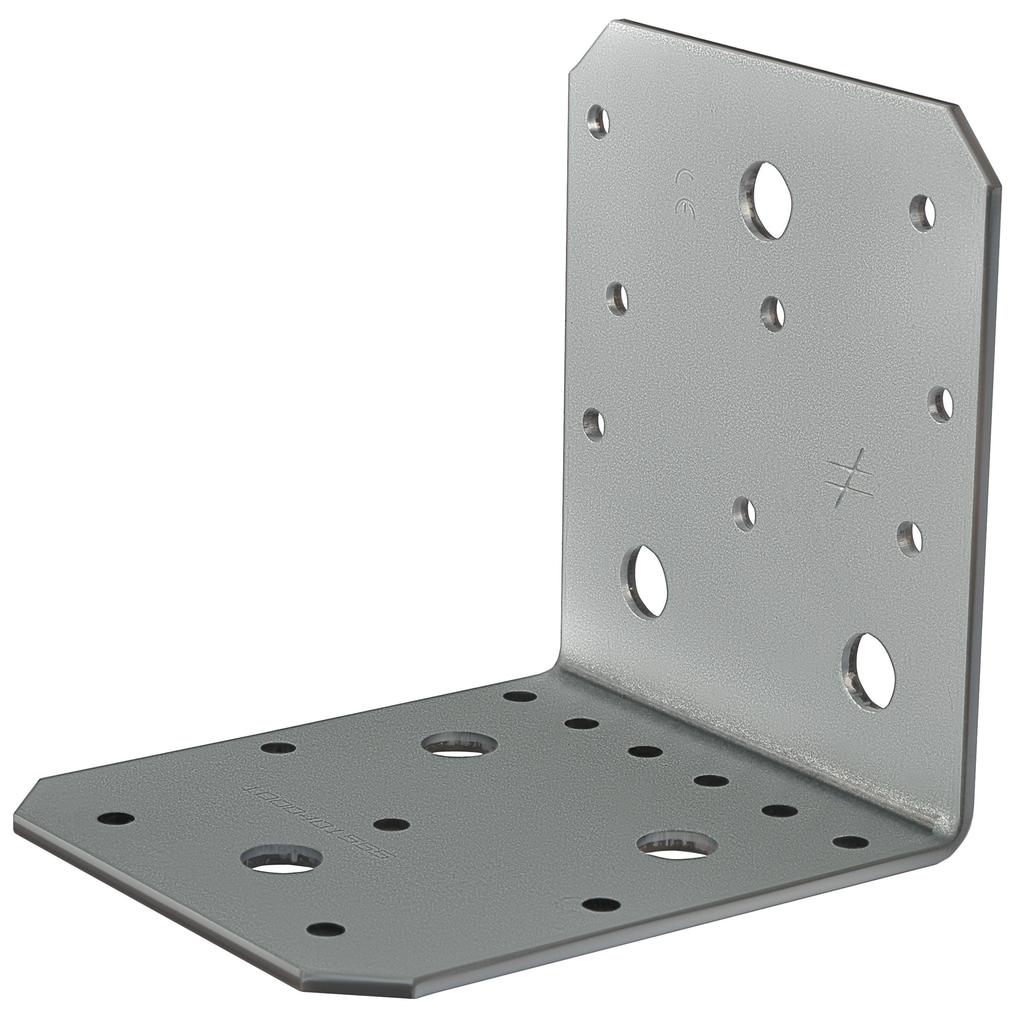

AB105 angle connector 105x105x90x3mm (1)

Perforated steel angle joiner

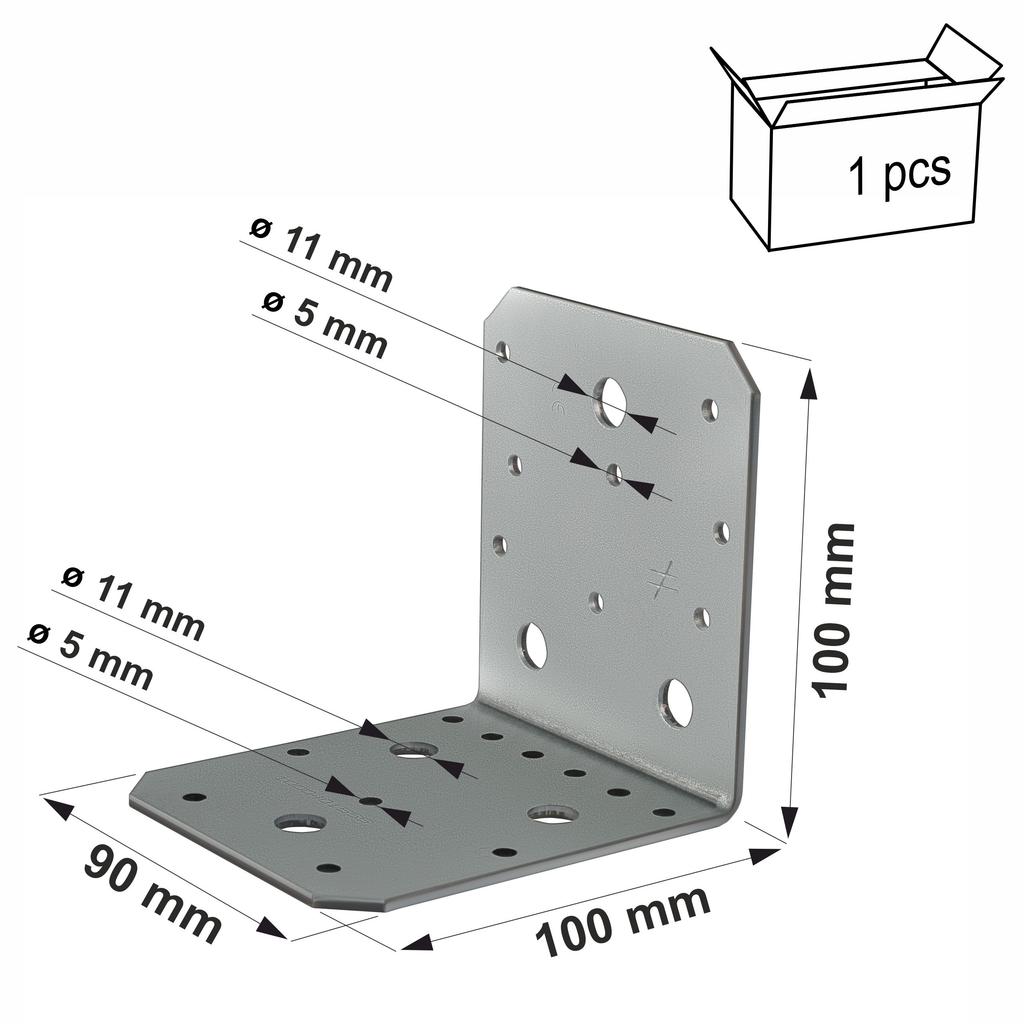

• Model: AB105

• Size: 100 x 100 x 90 mm

• Sheet thickness: 3.0 mm

• Packaging: 1 pc.

• Arm holes A: 8 pcs. x Ø 5 mm, 3 pcs. x Ø 11 mm

• Arm holes B: 11 pcs. x Ø 5 mm, 3 pcs. x Ø 11 mm

• Material: S250GD steel galvanized with 275 g/m2 (20 µm)

• Intended for connections: wood - wood, wood - concrete

Original product of the renowned companySIMPSON Strong-Tie ®

Despite the lack of a reinforcing rib, the AB series connectors retain very high load-bearing capacities thanks to the use of thick sheet metal (AB105 – 3.0 mm) and, above all, optimized perforation for both nails and anchors.

Thanks to this, even though they are one of the simplest connectors, they are used in many connections.

Application and assembly method

Area of ​​application: They are used in places where the use of reinforced joints is impossible and may interfere with other building elements. Thanks to this, they are used in many connections.

• Connections of rafters with wall plates or concrete ring beams,

• Fixing wooden elements to concrete,

• Connections of wooden posts with beams,

• All other structural elements where high load-bearing capacity is required.

1. Simple assembly

The connector has been designed to be intuitive and quick to install, which significantly reduces work time and makes it ideal for both professionals and DIY enthusiasts.

2. Strong and durable connections

Thanks to the use of high-quality steel (S250GD steel) and the Sendzimir hot-dip galvanizing process, the connector ensures exceptional strength and durability of connections in a variety of wooden structures.

3. High load-bearing capacity

The connector has excellent load-bearing capacity parameters that have been statically calculated, ensuring the safety and stability of the constructed elements, which is crucial in load-bearing structures and garden architecture.

4. Usage class 2

Characterized by material moisture corresponding to a temperature of 20°C and a relative humidity of the surrounding air exceeding 85% only for a few weeks a year (e.g. open sheds or unheated attics)

DoP-e 06 / 0106

This European Standard specifies requirements and test methods for the materials, geometry, strength, stiffness and durability (i.e. corrosion protection) of joints used in load-bearing timber structures.

The products we offer are of the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

Perforated steel angle joiner

• Model: AB105

• Size: 100 x 100 x 90 mm

• Sheet thickness: 3.0 mm

• Packaging: 1 pc.

• Holes Arm A: 8 pcs. x Ø 5 mm, 3 pcs. x Ø 11 mm

• Holes Arm B: 11 pcs. x Ø 5 mm, 3 pcs. x Ø 11 mm

• Material: S250GD steel galvanized with 275 g/m2 (20 µm)

• Intended for connections: wood - wood, wood - concrete

Original product of the renowned companySIMPSON Strong-Tie ®

Despite the lack of a reinforcing rib, the AB series connectors retain very high load-bearing capacities thanks to the use of thick sheet metal (AB105 – 3.0 mm) and, above all, optimized perforation for both nails and anchors.

Thanks to this, even though they are one of the simplest connectors, they are used in many connections.

Application and assembly method

Area of ​​application: They are used in places where the use of reinforced joints is impossible and may interfere with other building elements. Thanks to this, they are used in many connections.

• Connections of rafters with wall plates or concrete ring beams,

• Fixing wooden elements to concrete,

• Connections of wooden columns with beams,

• All other structural elements where high load-bearing capacity is required.

1. Simple assembly

The connector has been designed to be intuitive and quick to install, which significantly reduces work time and makes it ideal for both professionals and DIY enthusiasts.

2. Strong and durable connections

Thanks to the use of high-quality steel (S250GD steel) and the Sendzimir hot-dip galvanizing process, the connector ensures exceptional strength and durability of connections in a variety of wooden structures.

3. High load-bearing capacity

The connector has excellent load-bearing parameters that have been statically calculated, ensuring the safety and stability of the constructed elements, which is crucial in load-bearing structures and garden architecture.

4. Usage class 2

It is characterized by material moisture corresponding to a temperature of 20°C and relative humidity of the surrounding air exceeding 85% only for a few weeks a year. (e.g. open sheds or unheated attic)

This European Standard specifies requirements and test methods for the materials, geometry, strength, stiffness, and durability (i.e., corrosion protection) of joints used in load-bearing timber structures.

The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products supplied to our contractors are safe and adapted to specific tasks.

Intended for connections: wood - wood, wood - concrete Main element: solid wood, composite wood, glued laminated timber, concrete. Secondary element: solid wood, composite wood, glued laminated timber. Intended for connections: wood - wood, wood - concrete Main element: solid wood, composite wood, glued laminated timber, concrete. Secondary element: solid wood, composite wood, glued laminated timber.
