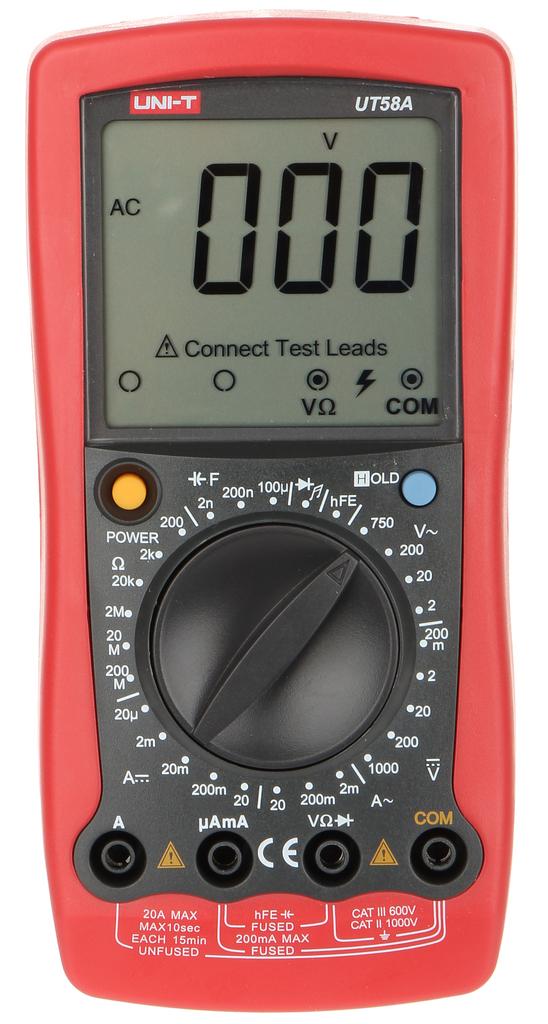

UNI-T UT-58A MULTIMETER
UT-58A is a universal digital meter used to measure: voltage, current, resistance, capacitance, hFE, and checking the correct operation of diodes.
• DC voltage measurement: 200 mV ± (0.5% + 1) @ 0.1 mV ,2 V ± (0.5% + 1) @ 1 mV ,20 V ± (0.5% + 1) @ 10 mV ,200 V ± (0.5% + 1) @ 100 mV ,1000 V ± (0.8% + 2) @ 1 V
• AC voltage measurement: 2 V ± (0.8% + 3) @ 1 mV ,20 V ± (0.8% + 3) @ 10 mV ,200 V ± (0.8% + 3) @ 100 mV ,750 V ± (1.2% + 3) @ 1 V
• DC current measurement: 20 µA (0.8% + 1) @ 0.01 µA ,2 mA ± (0.8% + 1) @ 1 µA ,20 mA ± (0.8% + 1) @ 10 µA ,200 mA ± (1.5% + 1) @ 0.1 mA ,20 A ± (2% + 5) @ 10 mA
• AC current measurement: 2 mA ± (1% + 3) @ 1 µA ,200 mA ± (1.8% + 3) @ 0.1 mA ,20 A ± (3% + 5) @ 1 mA
• Resistance measurement: 200 Ω ± (0.8% + 3) @ 0.1 Ω ,2 kΩ ± (0.8% + 1) @ 1 Ω ,20 kΩ ± (0.8% + 1) @ 10 Ω ,2 MΩ ± (0.8% + 1) @ 1 kΩ ,20 MΩ ± (1% + 2) @ 10 kΩ ,200 MΩ ± (5% + 10) @ 100 kΩ
• Capacitance measurement: 2 nF ± (4% + 3) @ 1 pF ,200 nF ± (4% + 3) @ 0.1 nF ,100 µF ± (5% + 4) @ 0.1 µF
• Inductance measurement: None
• Frequency measurement: None
• Temperature measurement: None
• Automatic measurement range change: None
• hFE: Yes
• Diode test: Yes
• Continuity indication: Yes
• Checking TTL logical states: None
• RS-232: None
• Power supply: 9V battery, type 6F22 - included
• Weight: 0.35 kg
• Dimensions: 179 x 88 x 39 mm
• Manufacturer / Brand: UNI-T
• Warranty: 2 years
• Large, clear LCD display with backlight
• Freeze last reading
• Low battery alarm
• Automatic shutdown after 15 minutes of inactivity
• Aesthetic and solid workmanship
