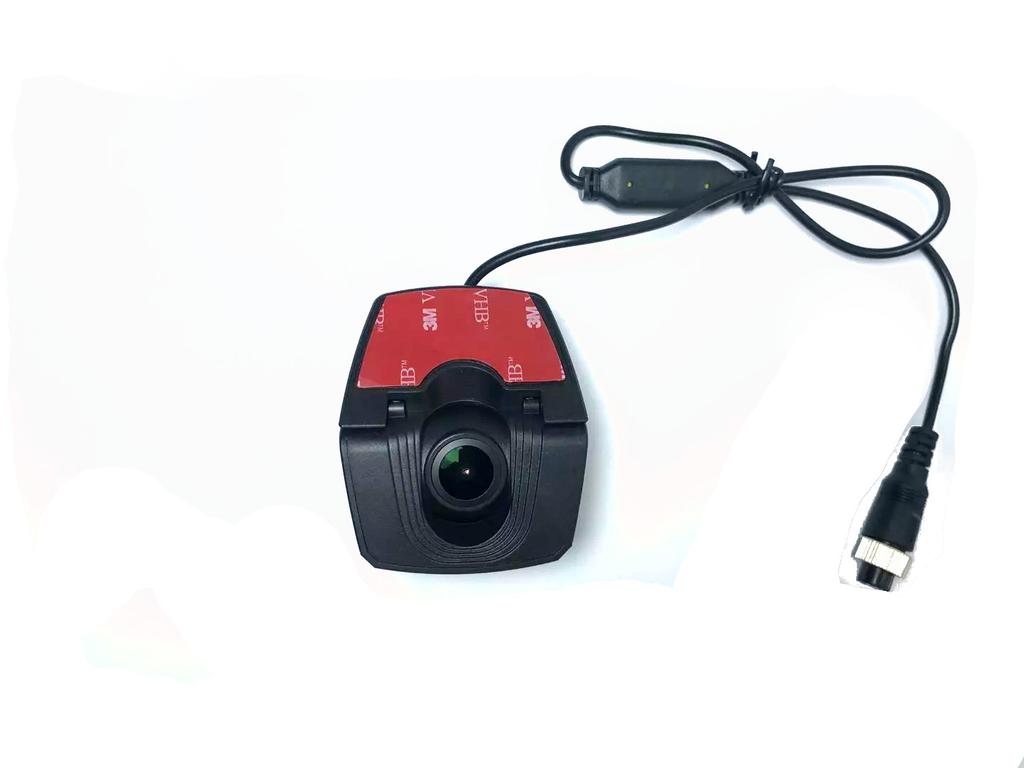

Reversing Camera with Adapter for ISOBUS Terminals
We present a professional reversing camera, designed specifically for modern agricultural machinery. Thanks to the adapter for ISOBUS terminals, this camera is the perfect complement to your system, providing excellent visibility and making field work easier.
Visibility in All Conditions and Durability
Equipped with 18 high-performance infrared (IR) LEDs, the camera guarantees clear images even in complete darkness, which is crucial when working at night or in poorly lit conditions.
It has a solid handle with adjustment in one plane and an adjustable visor.
Reliable Connection and ISOBUS Compatibility
The professional screw-on connector ensures a reliable and tight camera connection, protecting against moisture and guaranteeing stable signal transmission. Most importantly, the set includes a reduction that allows connection of the camera to 8-PIN ISOBUS terminals such as: CCI.50 / CCI 50, CCI.100 / CCI 100, CCI.200 / CCI 200.
This makes it easy to integrate it into your existing system.
Tested on a GRIMME combine harvester
Not suitable for KUBOTA - different connection configuration
This product is not suitable for KUBOTA machines due to a different connection configuration. Using it may damage the camera. A special adapter for KUBOTA will be available soon.
• Sensor: SONY CCD
• System: PAL
• Lens Angle: about 120 degrees (wide viewing angle)
• Mirror Function: The image is seen as in a rearview mirror (facilitates orientation)
• IP Protection Class: 67 (high resistance to dust and water)
• Current Consumption: 130mA-150mA (max.)
• Power Supply: 12V
• Operating Temperature: -20 to +75°C
• Number of Infrared LEDs: 18 pieces
The camera cable length is approximately 50 cm, if you need a longer cable, look for 4-PIN cables in our other offers.
