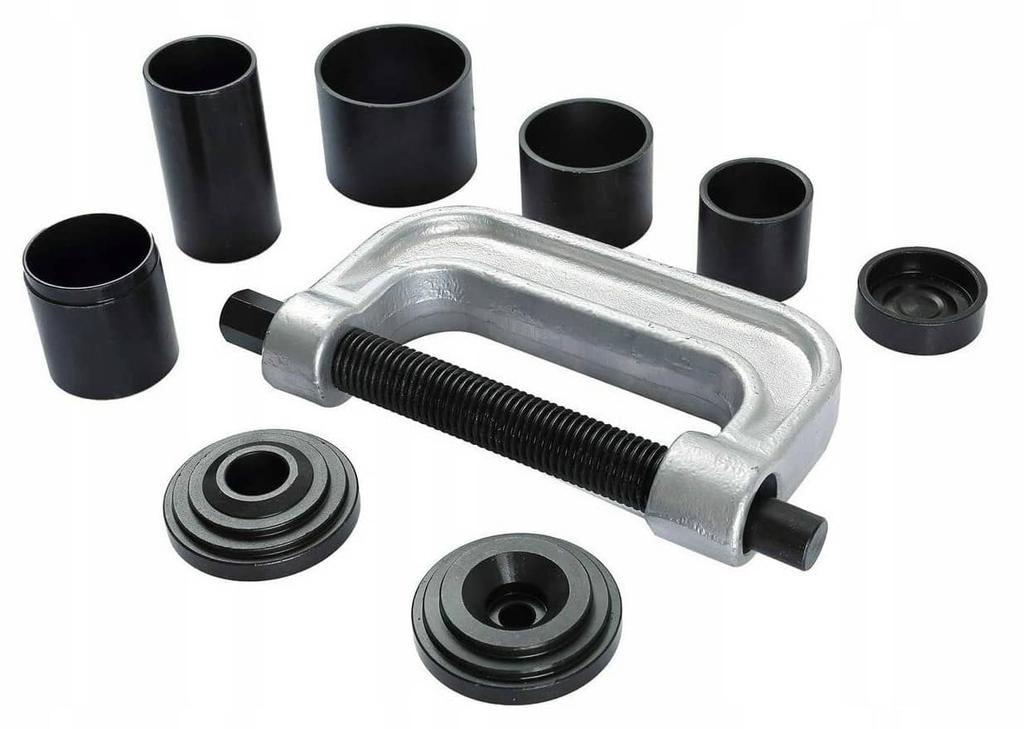

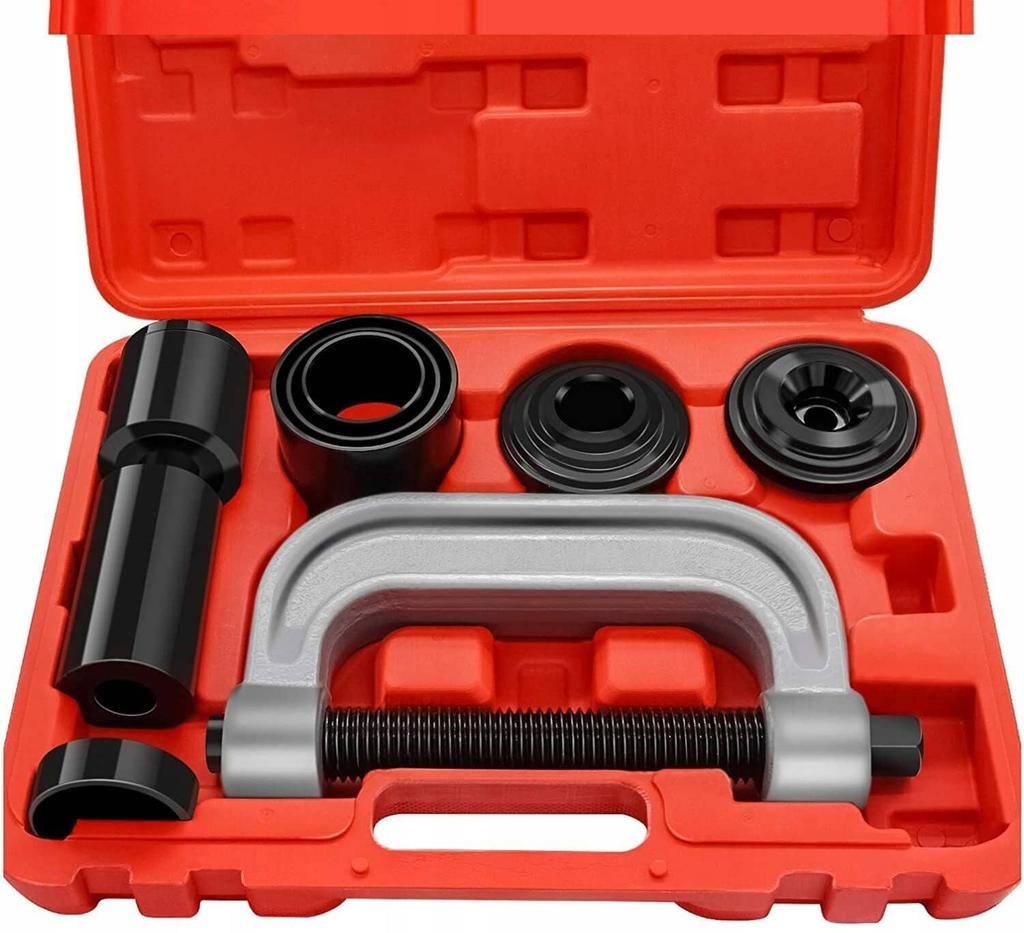

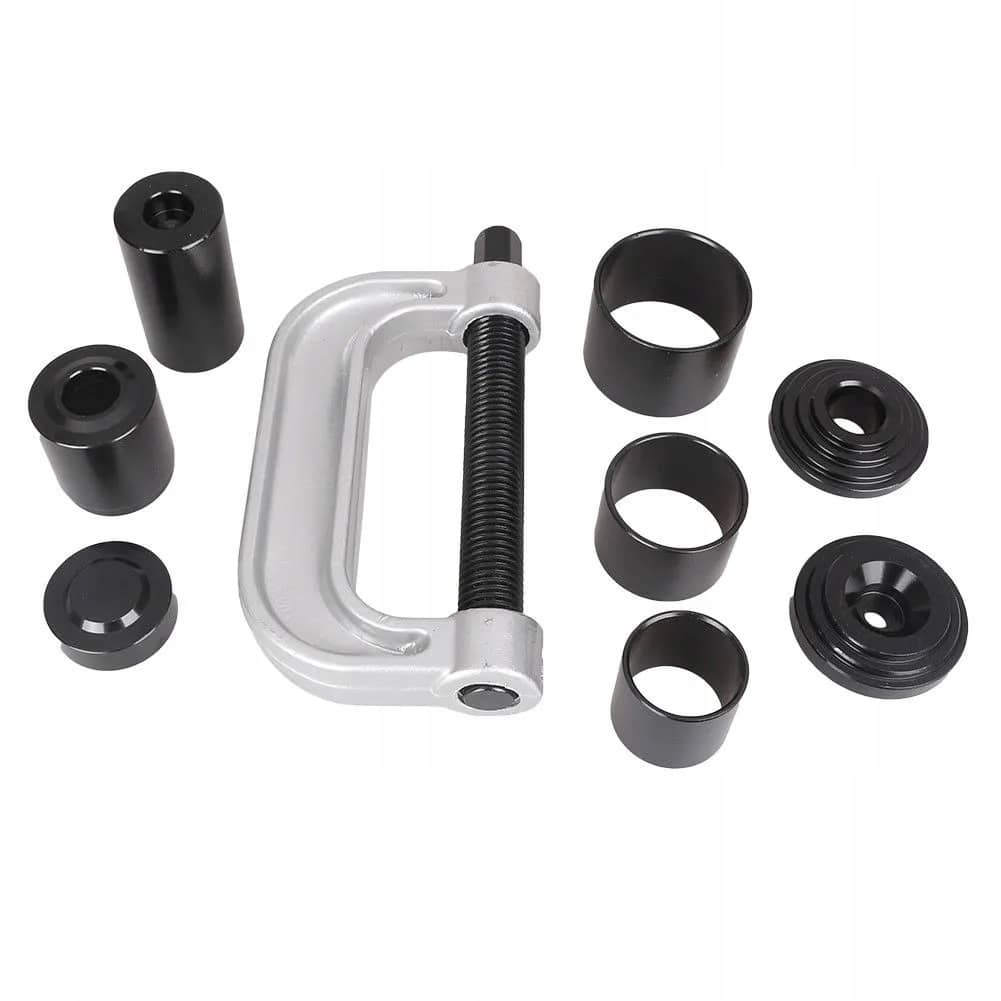

9-PIECE PULLER FOR PINS, JOINTS, CONTROL ARM BUSHINGS
Professional AMD TOOLS puller for pressing out pins, joints and suspension bushings without having to disassemble the component.
Packed in a functional and aesthetic case.
Designed for quick and easy replacement of control arm joint bushings. Eliminates the need to remove the rear or front control arm beam.
⬇️ Kit Includes:
✅ 1 x Screw Press
✅ 2 x Bushing Discs
✅ 6 x Bushings:
• inner diameter 44.0mm / outer diameter 51mm / height 43mm
• inner diameter 57.0mm / outer diameter 64mm / height 45mm
• inner diameter 69.0mm / outer diameter 75.5mm / height 56mm
• inner diameter 48.0mm / outer diameter 57.0mm / height 22mm
• inner diameter 51.0mm / outer diameter 57.0mm / height 62mm
• inner diameter 45.0mm / outer diameter 51.0mm / height 93.5mm
✅ 1 x Handy solid suitcase
⬇️ Technical data:
• screw with a diameter of 28mm for a 22 key
• Reinforced "C" type frame (very durable) for assembly and disassembly
• 3 pcs. through-hole sleeves: Ø=2 ¾” L=3”, Ø=2¼” L=2 ½”, Ø=1 ¾” L=2”
• stepped mounting adapter Øinternal=0.941”
• stepped disassembly adapter Øexternal=1/2”
• mounting sleeve Øinternal=1 ¾”
• adapter Øexternal=2 ¼” L=2 ½”
• mounting adapter Øexternal=2 ¼” L= 0.845”
• case color: red / blue
• Number of elements: 9 pcs.
• Made of: reinforced steel
• Diameter of through-hole sleeves: 70mm, 56mm, 43mm
• MAXIMUM RECOMMENDED TORQUE UP TO 180NM
• LUBRICATE THREAD WITH GREASE
• Do not use electric wrenches, impact wrenches, or pneumatic wrenches
AMD TOOLS - Is a manufacturer of automotive tools. "Automotive is our passion, we support and actively participate in car racing."
The AMD TOOLS brand meets the expectations of professionals.
