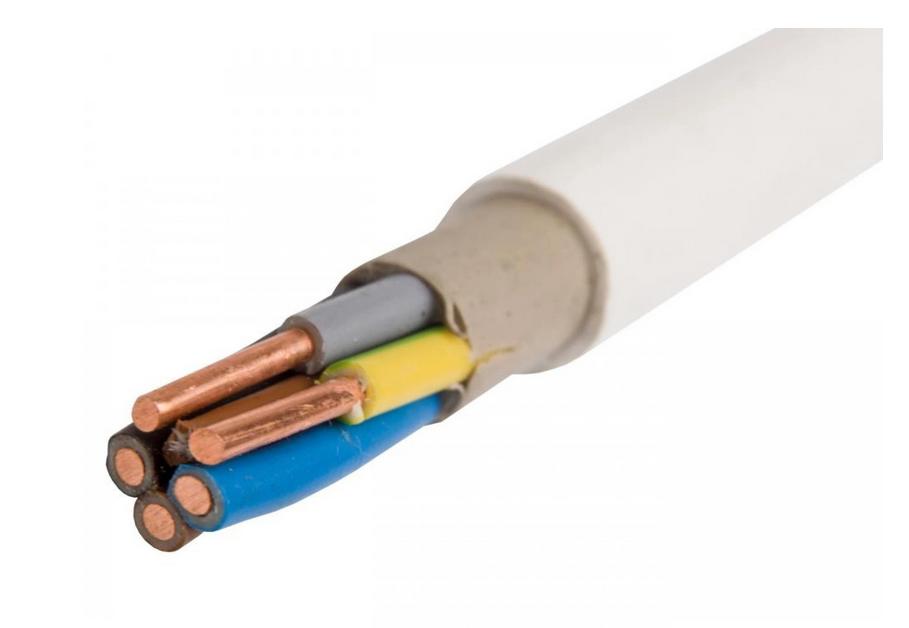

Installation Cable Ydy 5X10 Żo White 450/750V 172170007C0100 /100M/

Halogen-free EN 50267-2-2: No

Permissible temperature of permanently installed cable [°C] up to: 70

Permissible temperature of permanently installed cable [°C] from: -40

Maximum core temperature [°C]: 70

Nominal voltage U [V]: 750

Nominal voltage U0 [V]: 450

Low smoke emission (according to EN 61034-2): No

Approximate outer diameter [mm]: 17.8000

Approximate cable weight [kg/km]: 834

Nominal conductor cross-section [mm2]: 10

CN: 85444991 Length: 540 EAN: 5907802040881 Shield: No Core identification: Color Manufacturer index: 172170007C0100 Core insulation: PVC Core class: Class 1 = Solid Insulation color: White Number of cores: 5 Outer sheath material: PVC Core material: Made of copper (Cu) Flame retardant: According to EN 60332-1-2 Lead sheath: No Series: YDY Width: 550 Weight: 50.0000 Height: 200 Protective conductor: Yes Earth conductor: No Size: 100m
