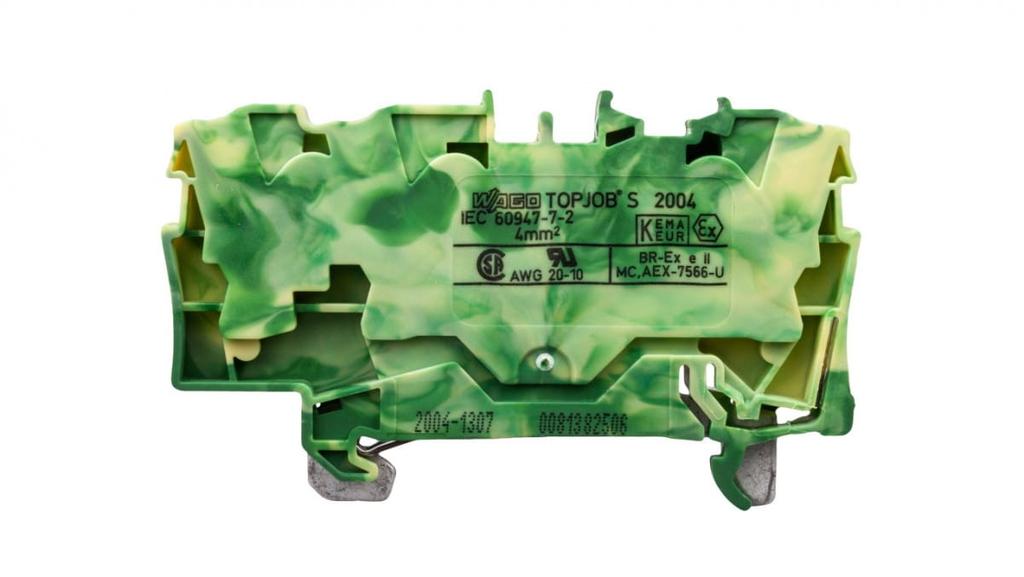

3-Wire Rail Connector 4Mm2 Yellow-Green 2004-1307 Topjobs

Length [mm]: 66.5

Manufacturer's index: 2004-1307

Insulating material flammability class according to UL94: V0

Rated voltage [V]: 800

Rated current In [A]: 32

Connectable cross-section of solid wire [mm2] up to: 4

Connectable cross-section of solid wire [mm2] from: 0.5

Connectable cross-section of stranded wire without ferrule: 4

Connectable cross-section of stranded wire with ferrule: 4

Connectable cross-section of multi-core wire [mm2] up to: 4

Connectable cross-section of multi-core wire [mm2] from: 0.5

Type of electrical connection 1: Spring terminal

Type of electrical connection 2: Spring terminal

series: 2004

Width / grid size [mm]: 6.2000

Explosion-proof version "EEx e": Yes

Height at lowest mounting method [mm]: 33

Operating temperature range [°C] to: 105

Operating temperature range [°C] from: -35

CN: 85369010 Length: 65 EAN: 4017332071604 Color: Gray Number of levels: 1 Number of terminals per level: 3 Connection position: From above/top Type of insulating material: Thermoplastic Mounting method: DIN mounting rail 35 mm Width: 40 Weight: 0.0200 Internal floors bridged: No Closing plate required: Yes Height: 7
