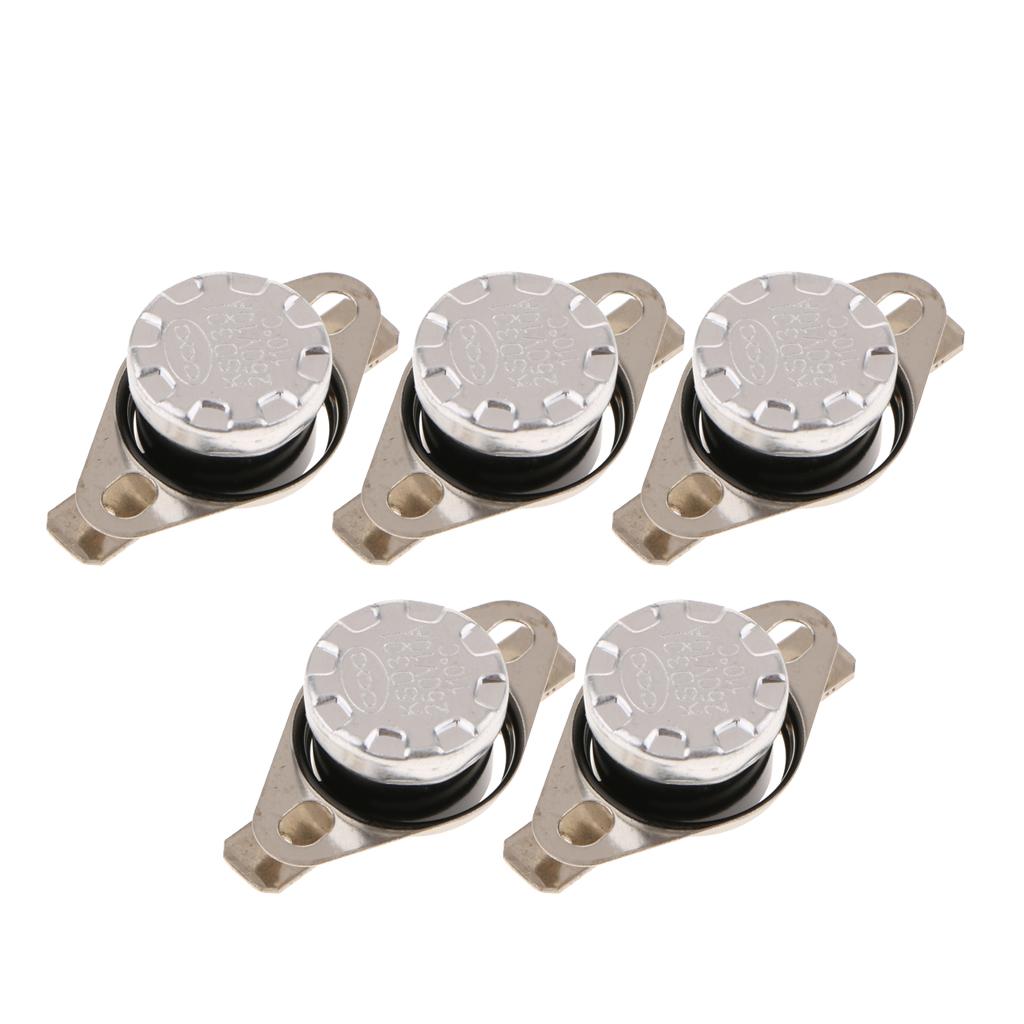

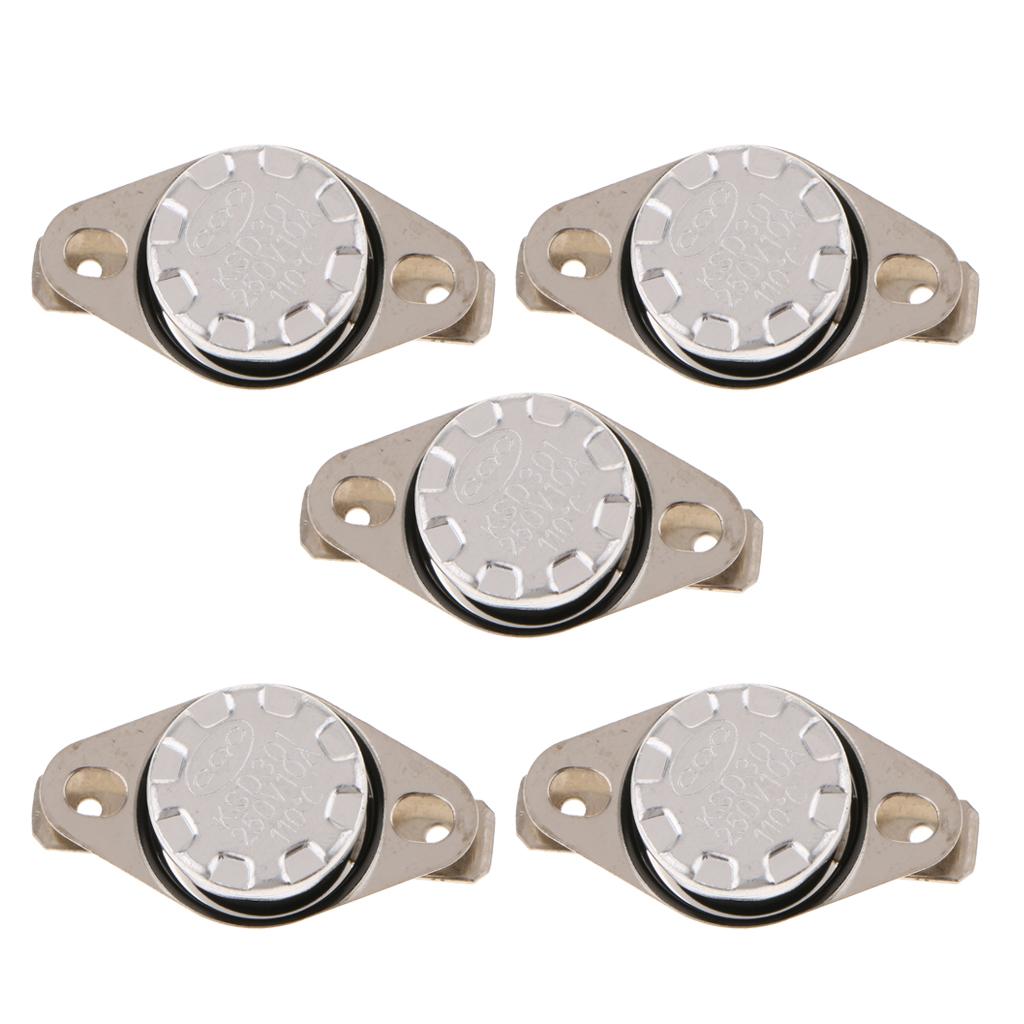

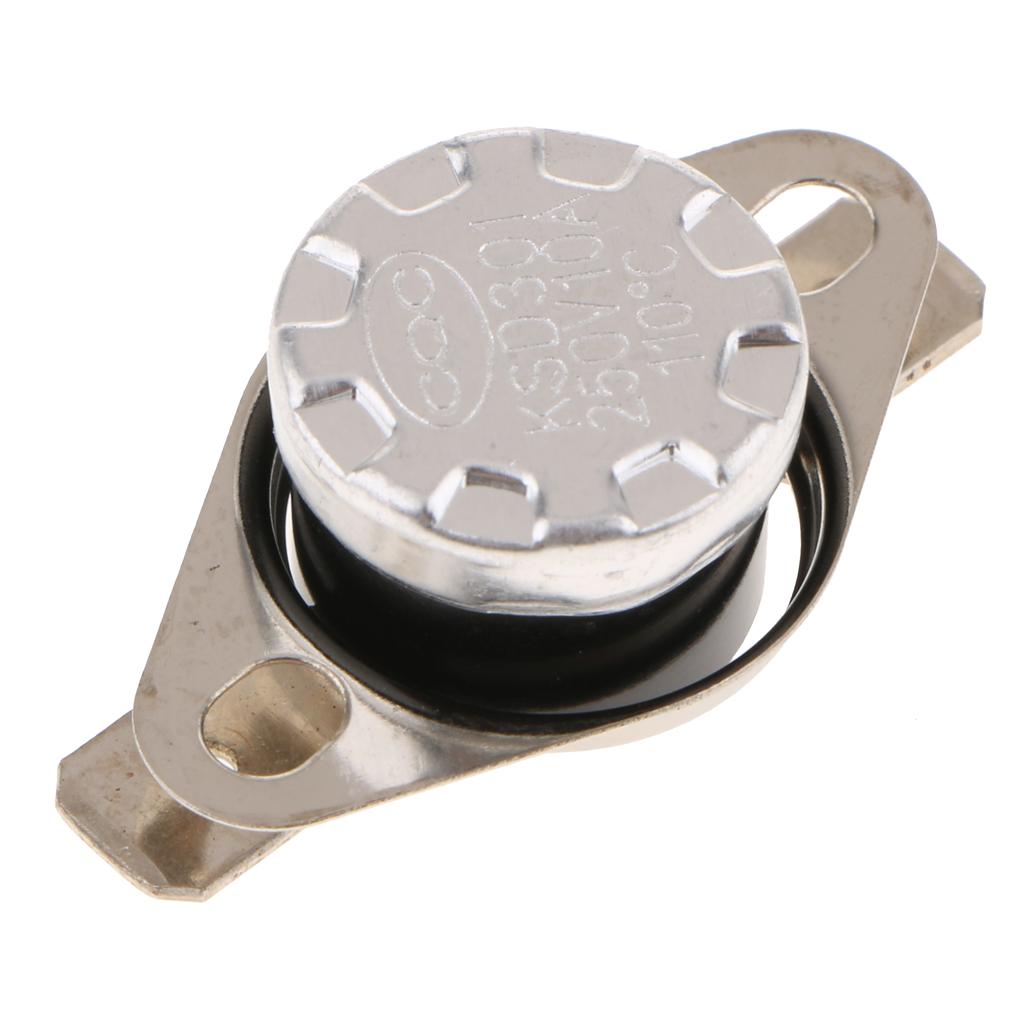

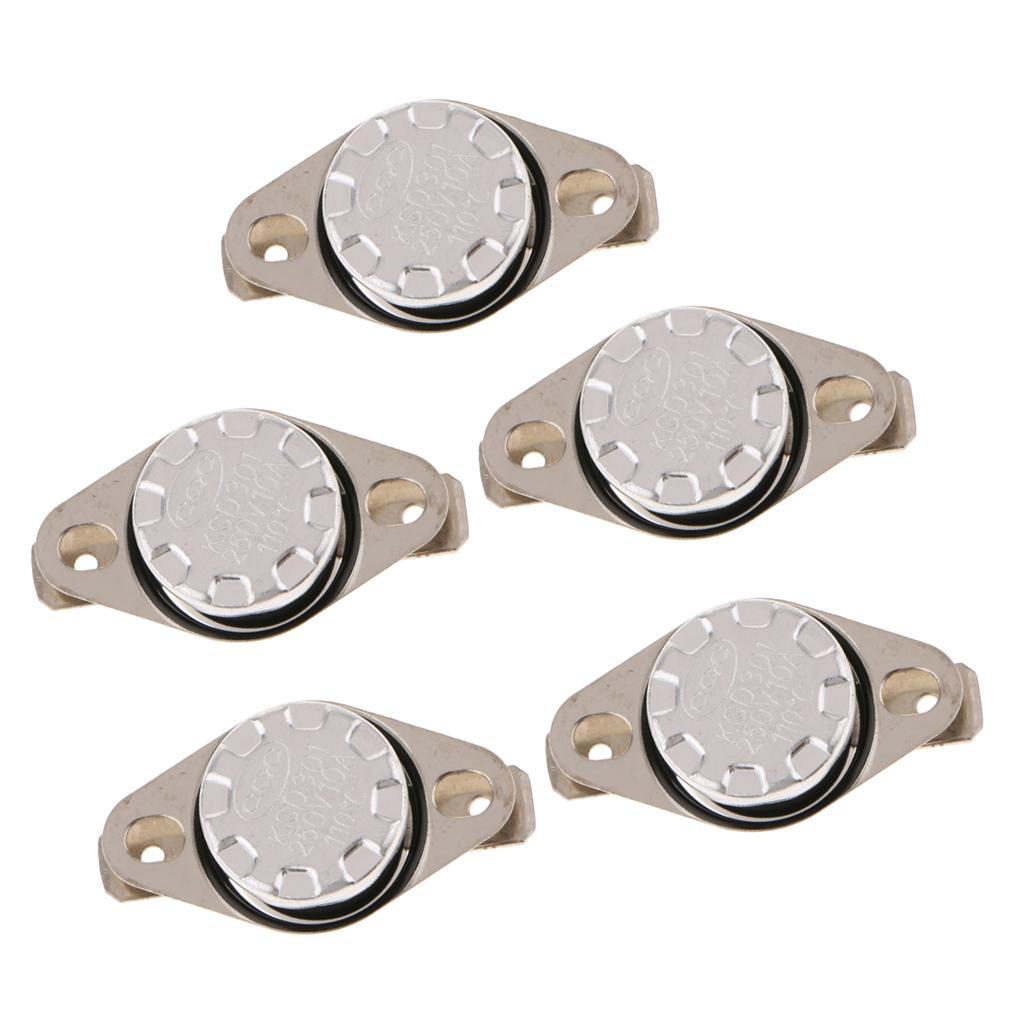

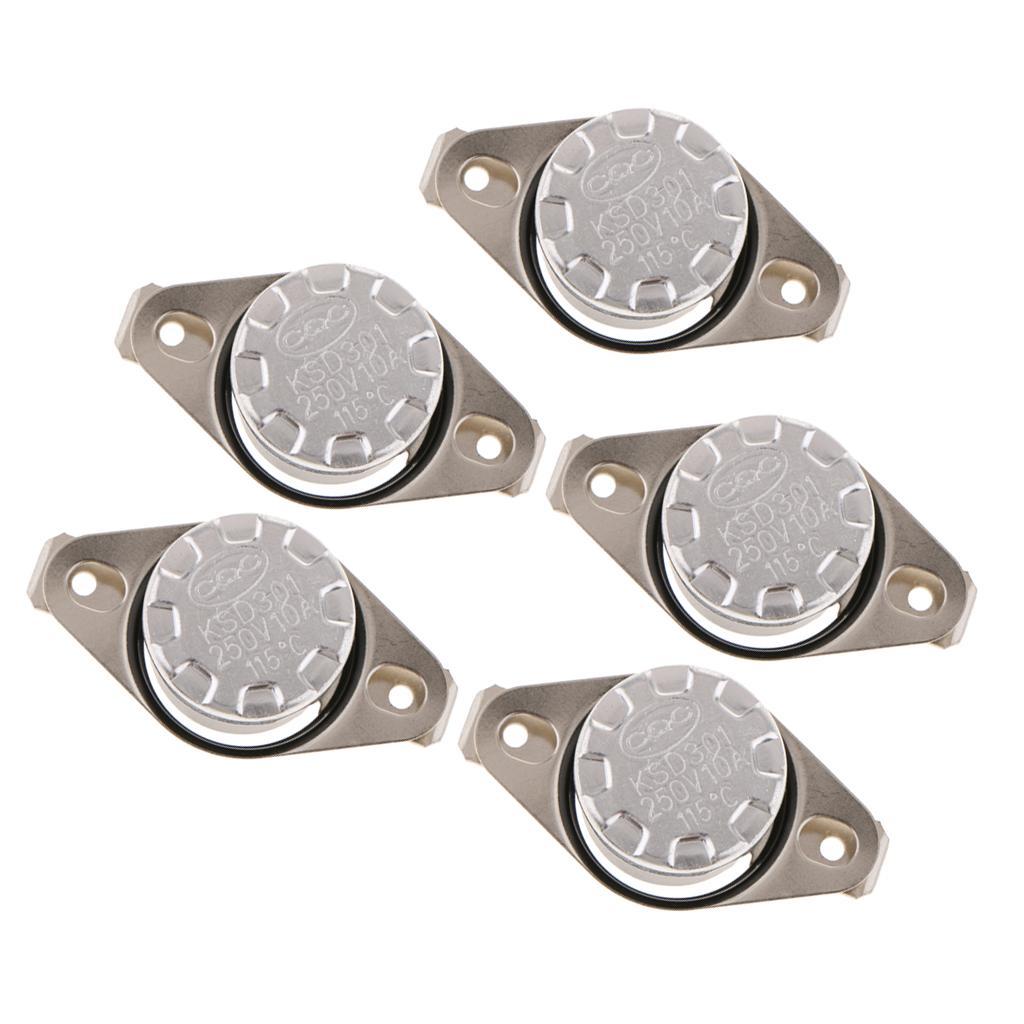

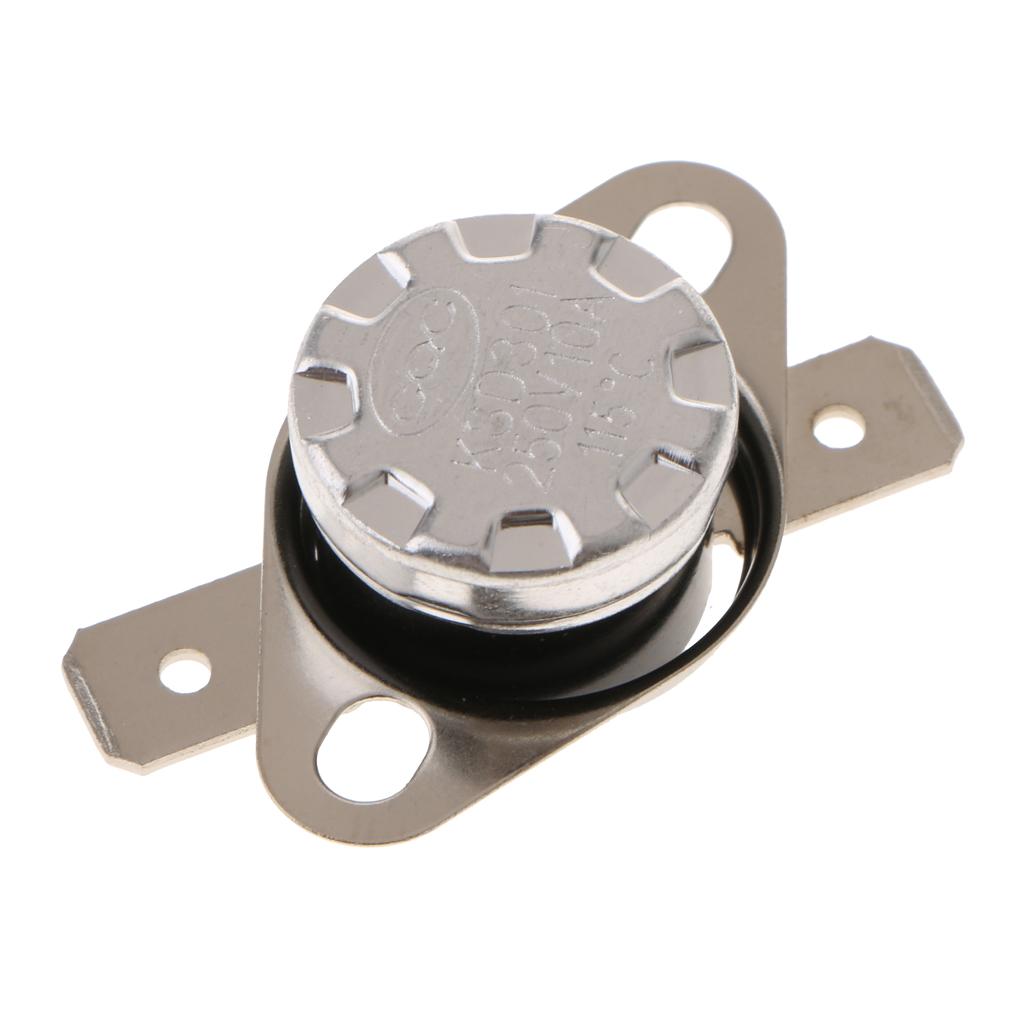

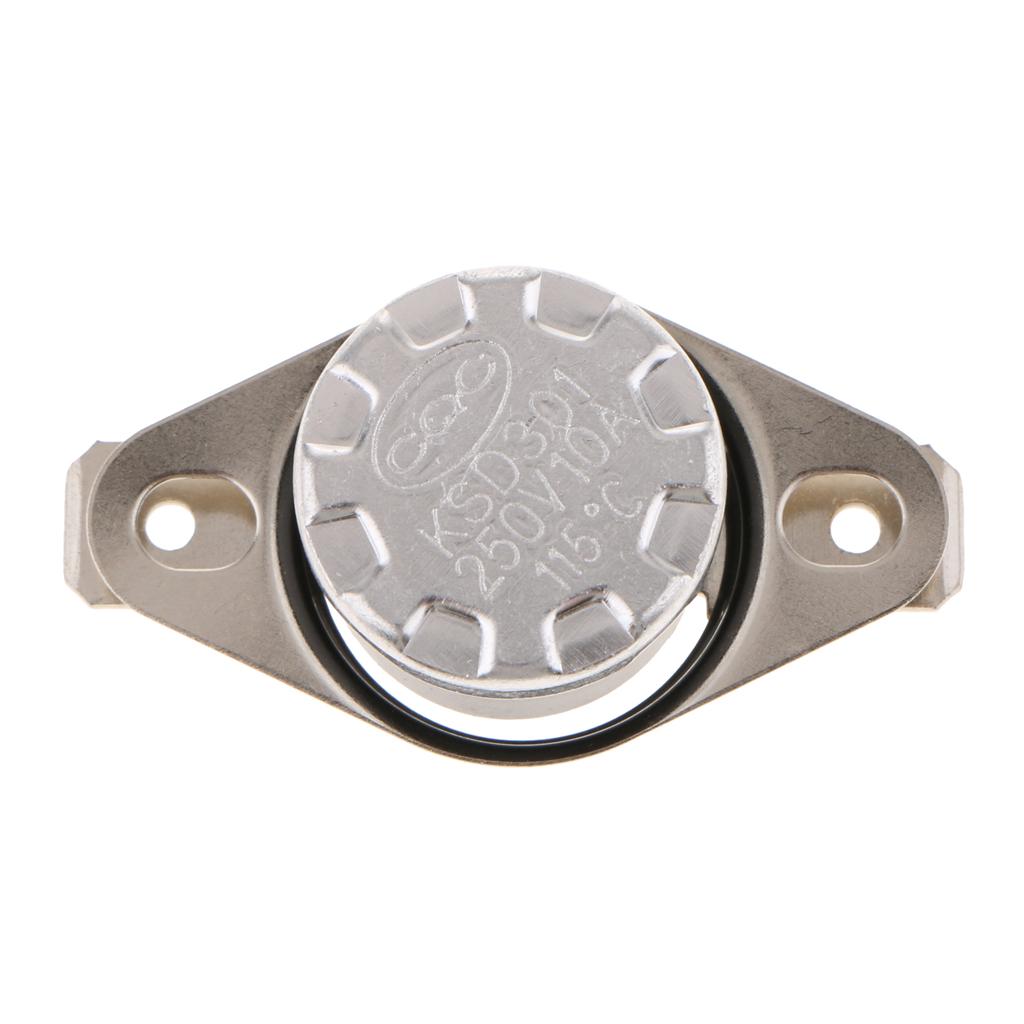

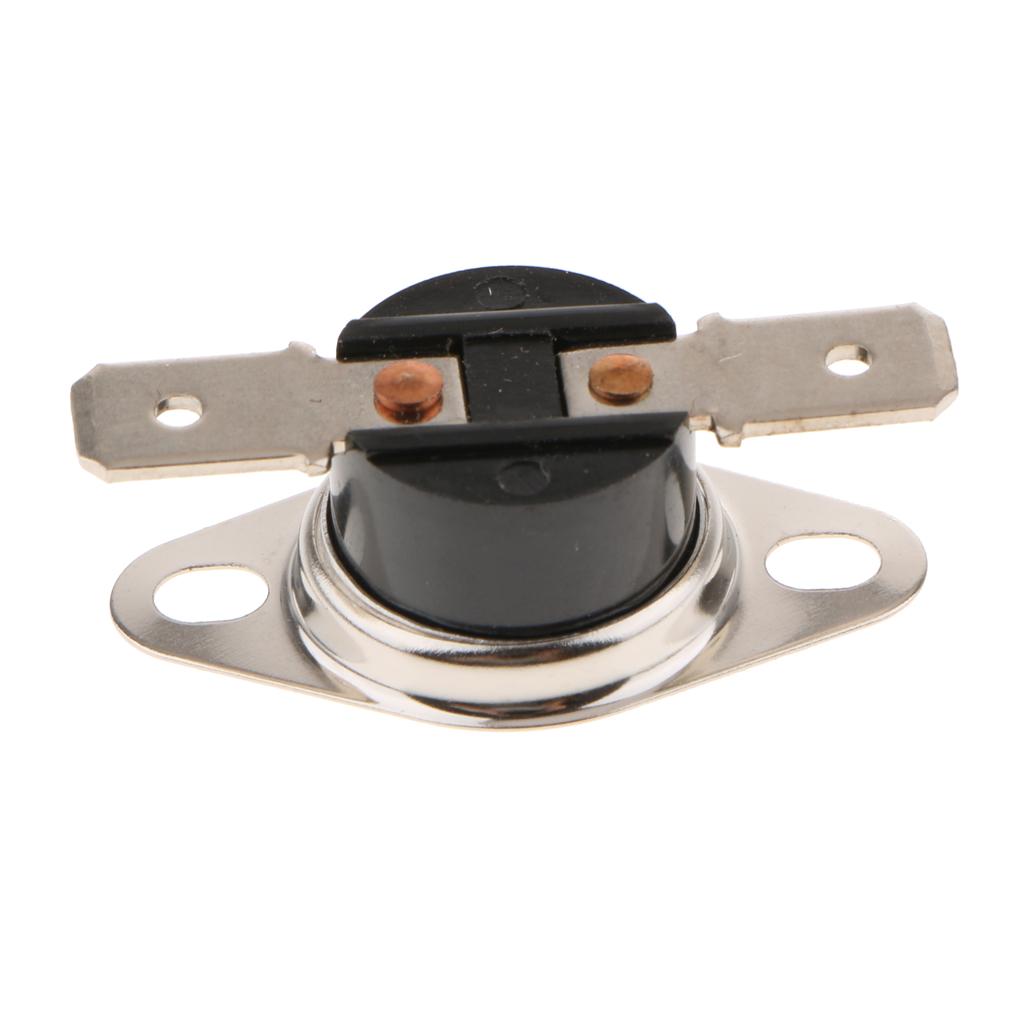

250V 10A KSD301 Normally Open Of 5

Description:

- Application: water dispenser, electric open water bottles, sterilizer, microwave, coffee maker, rice cookers, air conditioners and other electric appliances.

- Widely used for temperature control or protection for household electric appliances.

- It turns on until the surface reaches a certain temperature value, then the switch turns off.

- General purpose, automatic reset, low cost, large capacity, minute current thermostats.

- Stable performance，the service life is up to 100,000 times.

Specification:

- Product Name : Temperature Switch

- Model : KSD301

- Material : Metal

- Fusing speed: TT / special slow speed

- Automatic reset function: Yes

- Maximum voltage: 220V

- Maximum current: 16A

- Operating range: 0-220 ° C

- Temperature control range: 0-220 ° C

- Electrical parameters: AC250V 50-60HZ

- Action Type : NO(Normal Open)

- Circuit Resistance : 50 Mohm

- Insulation Resistance : 100 Mohm

- Length: 33mm / 1.29 inch

- Top diameter: 11mm / 0.43 inch

- Bottom diameter: 9mm / 0.35 inch

Package Includes: 5 Pieces temperature switch

Note: Since the size above is measured by hand, the size of the actual item could be slightly different from the size above.
