Features:
1. High efficiency performance: Low power consumption of 5V/290mA, transmission power of 19dBm to 21dBm, with both power consumption and performance.
2. High frequency transmission: Operating in the 5645-5945MHz ISM frequency band, supporting FM audio and video synchronous transmission, with clear and stable signals.
3. Compact design: The surface mount package is only 19x22x3mm, with a small size, suitable for embedded applications to save space.
4. Flexible multi-channel switching: Supports 8-channel transmission, compatible with SPI control mode, and meets diverse application scenarios.
5. Wide applicability: Suitable for various fields such as FPV models, baby monitors, wireless security, and medical equipment.
Product Overview:
This transmission module is an FM audio and video transmission module that operates in the 5645-5945MHz ISM frequency band (or uses SPI mode to control the frequency band through an external microcontroller). The module adopts a single-chip design, which integrates VCO PLL、 Broadband FM video modulation and FM audio modulation make the module small in size, low in power consumption, and high in sensitivity; The module adopts a patch packaging form, occupying very little machine space; The application of this module only requires simple connection of power supply, audio cable, video cable, and antenna to transmit sound and image signals.
Parameter:
5.8G broadband FM synchronous audio and video transmission
Low power consumption: 5V 290mA
Transmission power: 19dBm to 21dBm
Directly input analog audio and video signals
Channel 8 transmission
SPI control mode/switch control mode (optional)
Additional RF amplifier can modulate 3W-10W power
Size: 19 * 22 * 3mm
Application:
FPV model aircraft audio and video wireless transmission:
Baby monitor;
Image monitoring of construction sites;
Wireless camera security system;
Wireless imaging medical equipment
Wireless visual reversing camera transmission
Wireless video toys
Wireless Doorbell
Package Include:
1X module
difference:

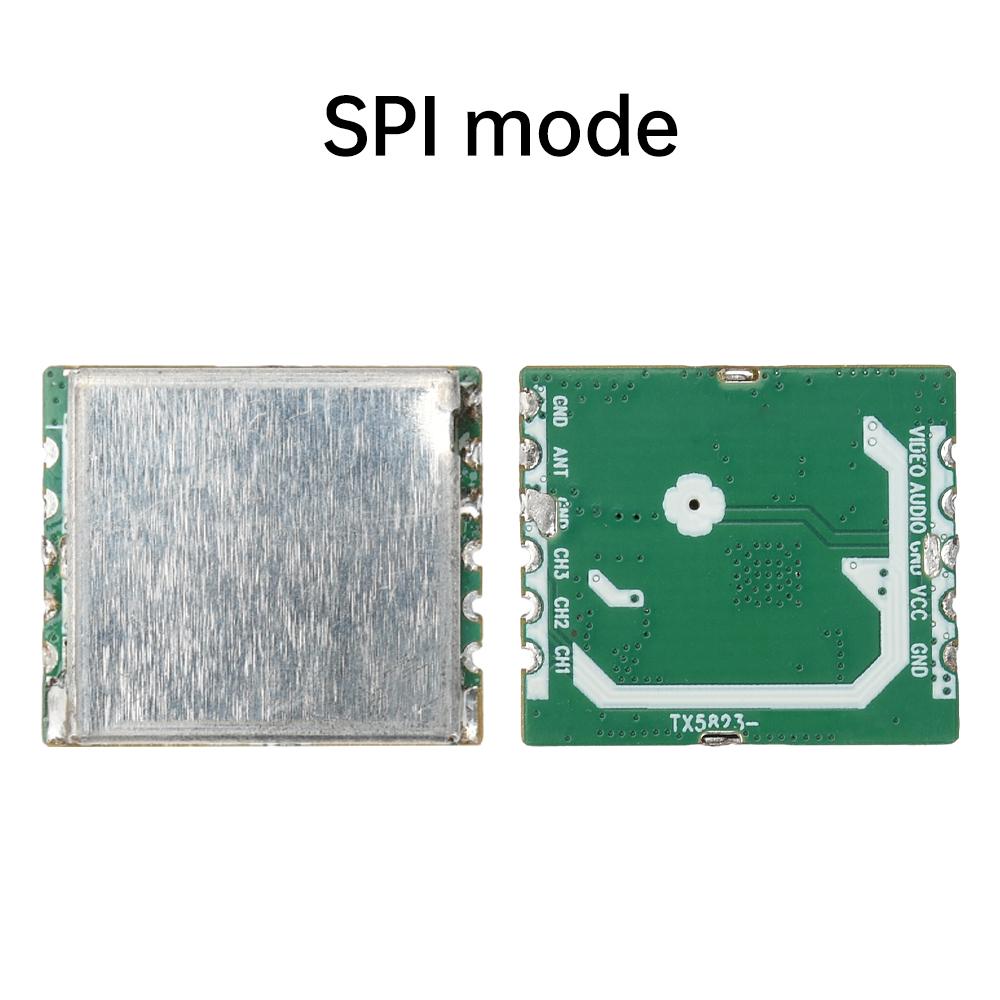

SPI control mode: SPI is a custom channel that supports multiple frequency points.

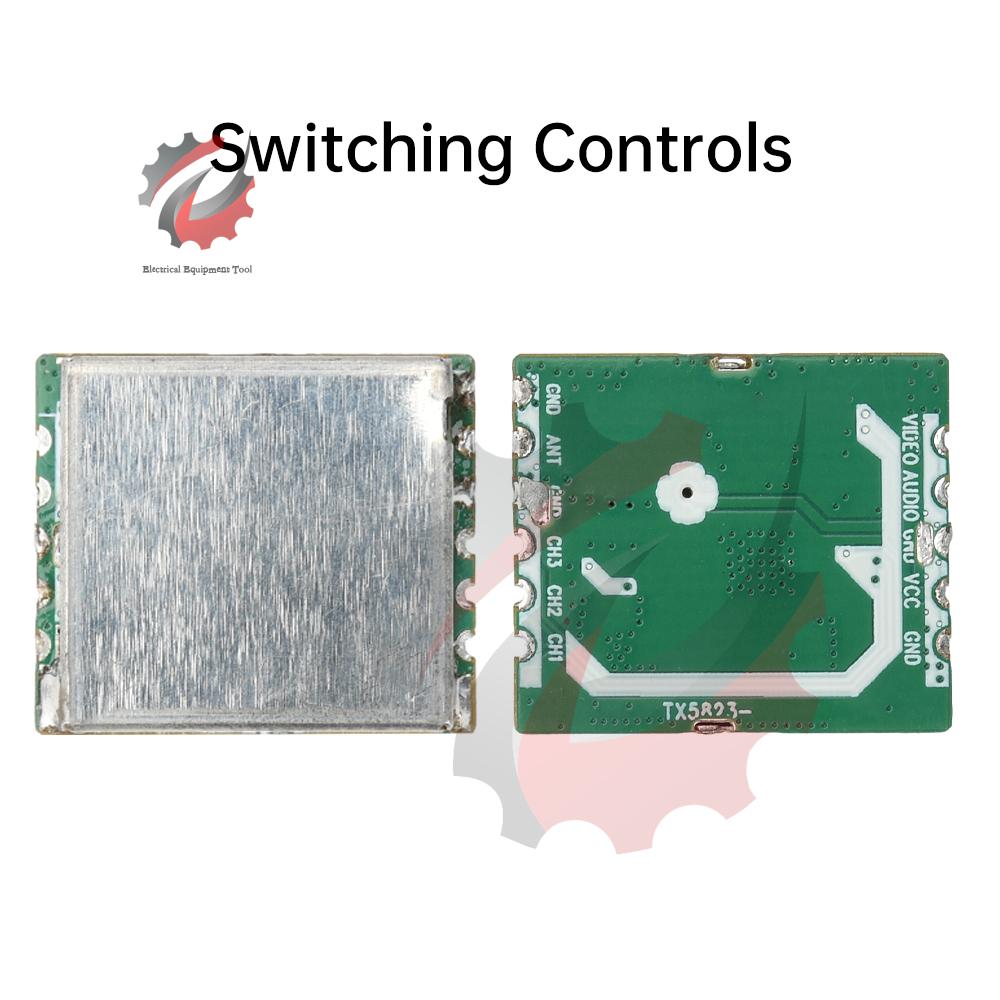

Switch mode: The switch module is a fixed channel with a fixed frequency point.
