Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Wholesale discounts : Complete variety, welcome to contact us for consultation
Features:

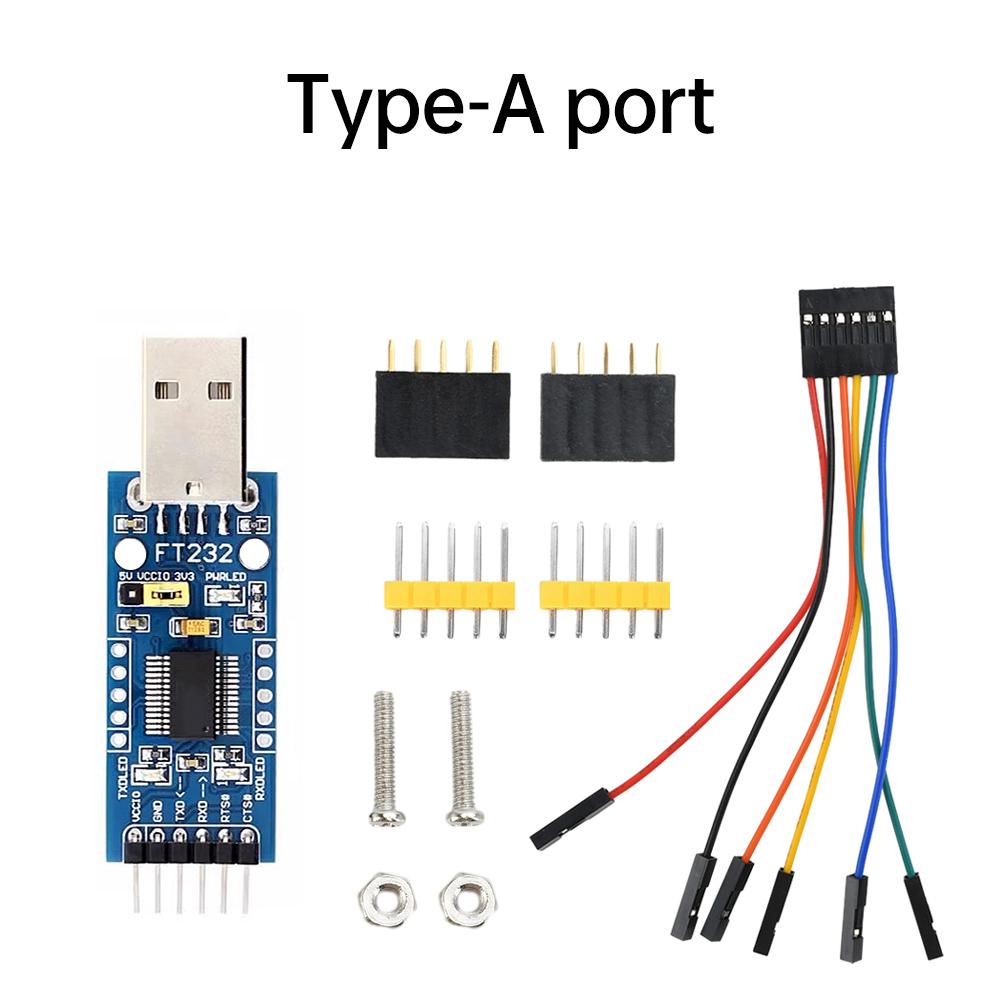

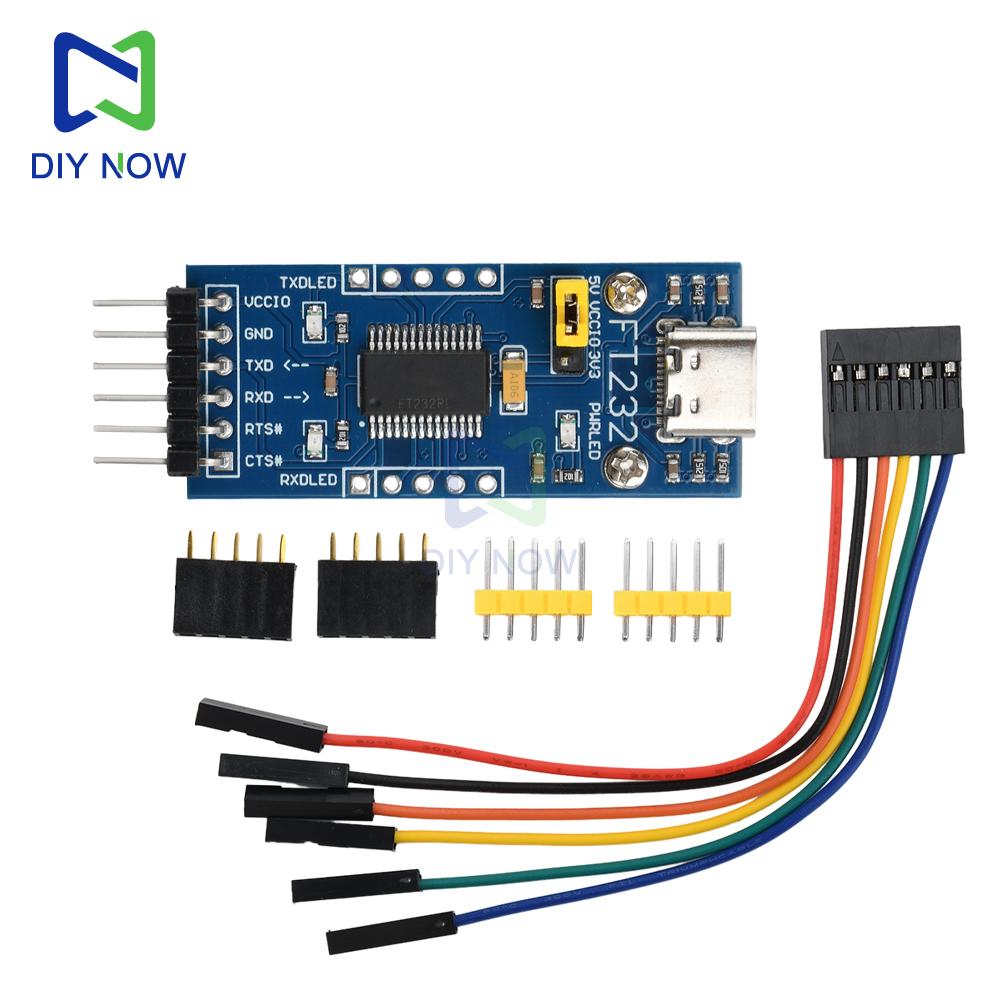

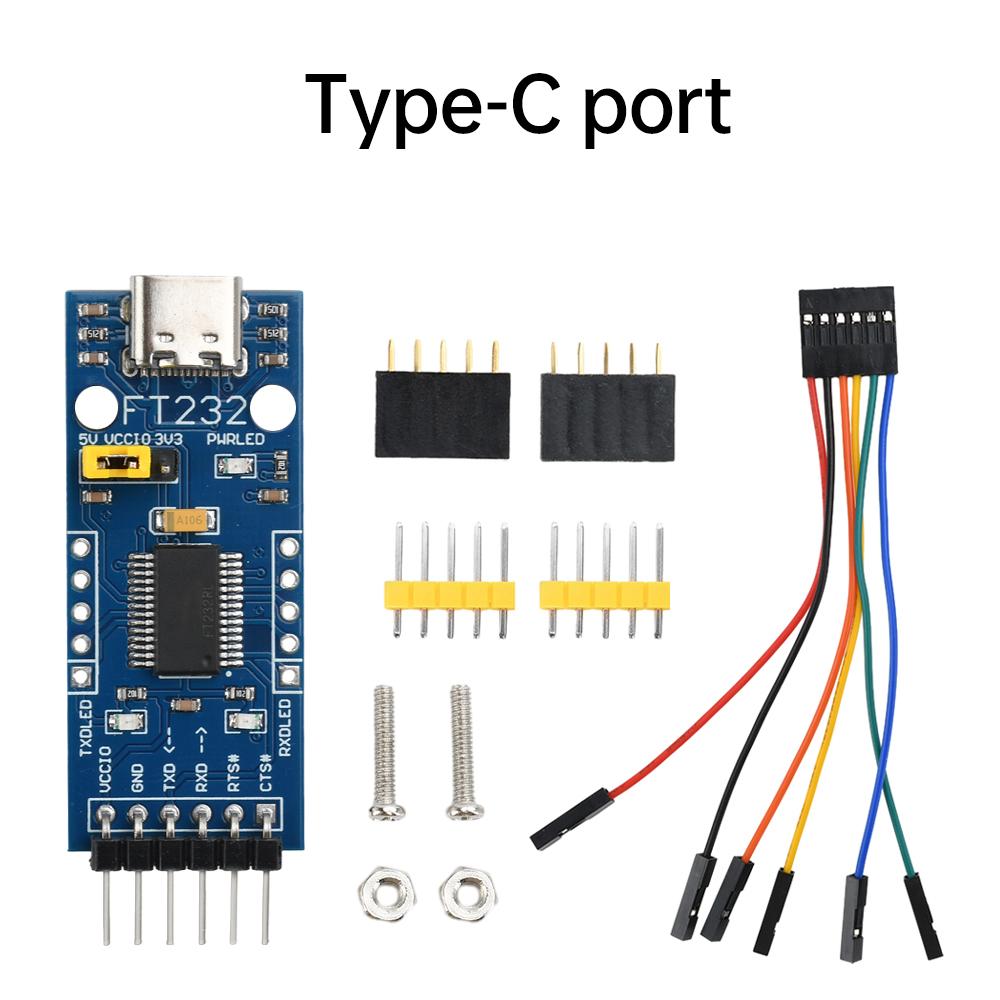

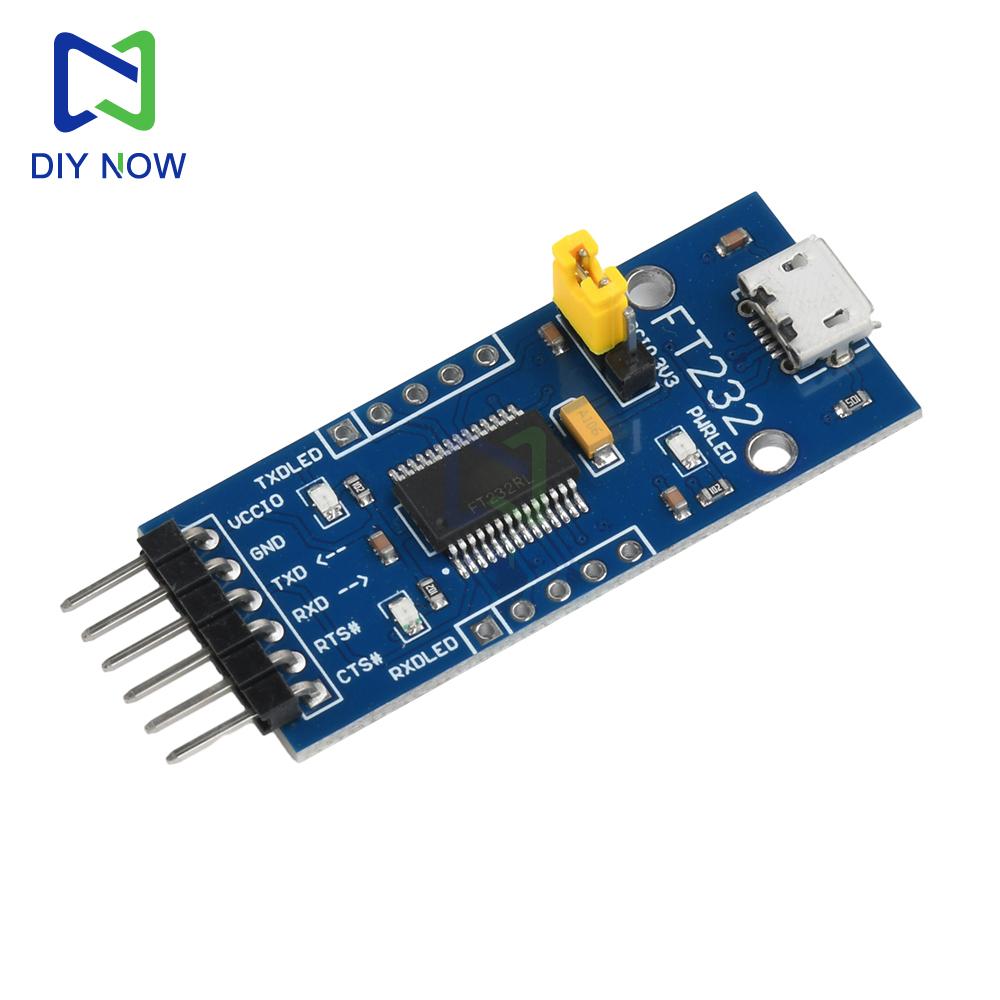

1. Multiple interface options: Type-A, Micro USB, Mini USB, Type-C, with wide compatibility.
2. Supports multiple operating systems: compatible with Linux, Windows 7/8/8.1/10/11, etc., suitable for multiple operating systems.
3. Flexible power supply method: VCCIO can be set through jumper caps, supporting external power supply of 5V, 3.3V or external power supply (3.3V~5V).
4. Clear work instructions: Equipped with three LED indicators, TXD, RXD, and PWR, for easy debugging and viewing of work status.
5. Convenient pin design: TXD, RXD, RTS #, and CTS # pins are led out using bent pins, while other function pins have reserved solder pads for easy access to user systems.
Parameter:

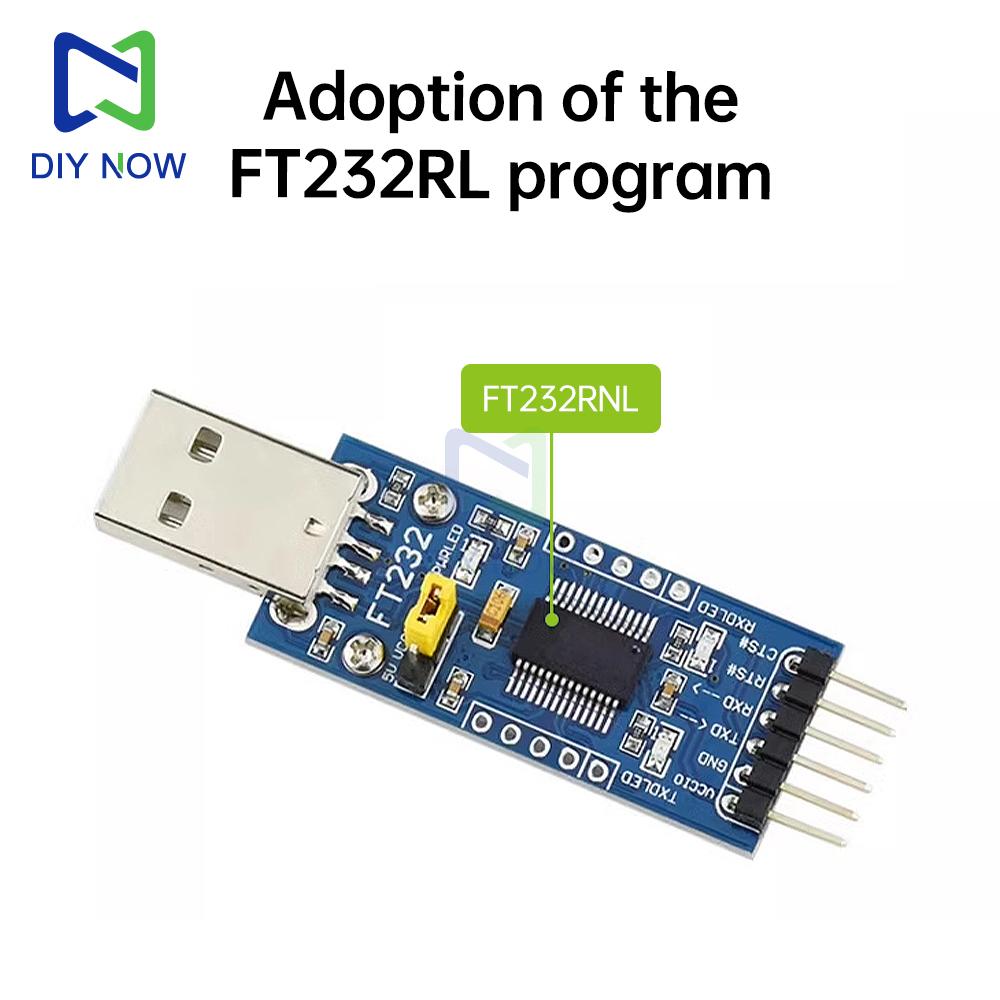

Using FT232RL chip
Four optional interfaces: Type-A Micro USB、Mini USB、Type-C
Supports Linux Windows7/8/8.1/10/11......
Support setting VCCIO3 power supply modes through jumper caps:
VCCIO-5V: 5V external power supply
VCCIO-3.3V: 3.3V external power supply
Not connected to jumper cap: powered by external source (supports 3.3V~5V)

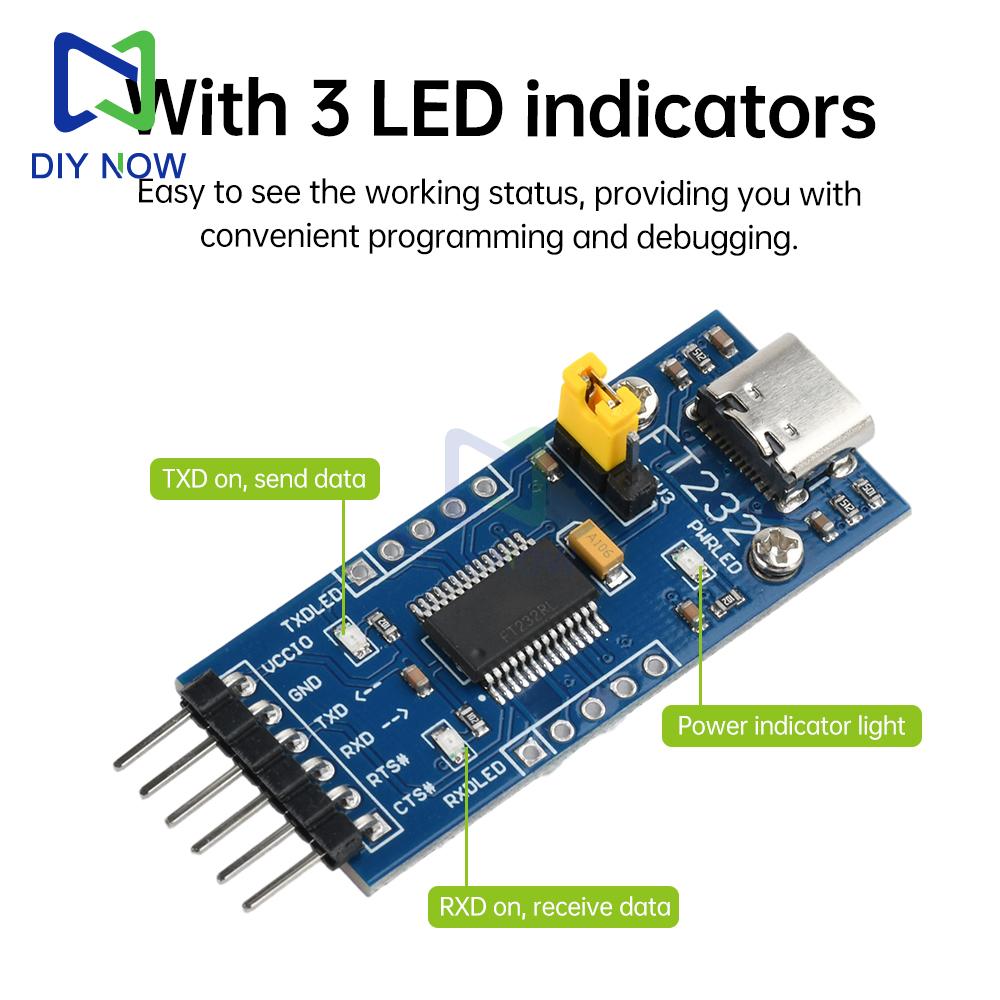

Onboard 3 LED indicator lights: TXD、RXD、PWR
Equipped with 3 LED indicator lights, it is easy to see the working status, providing convenient programming and debugging for you

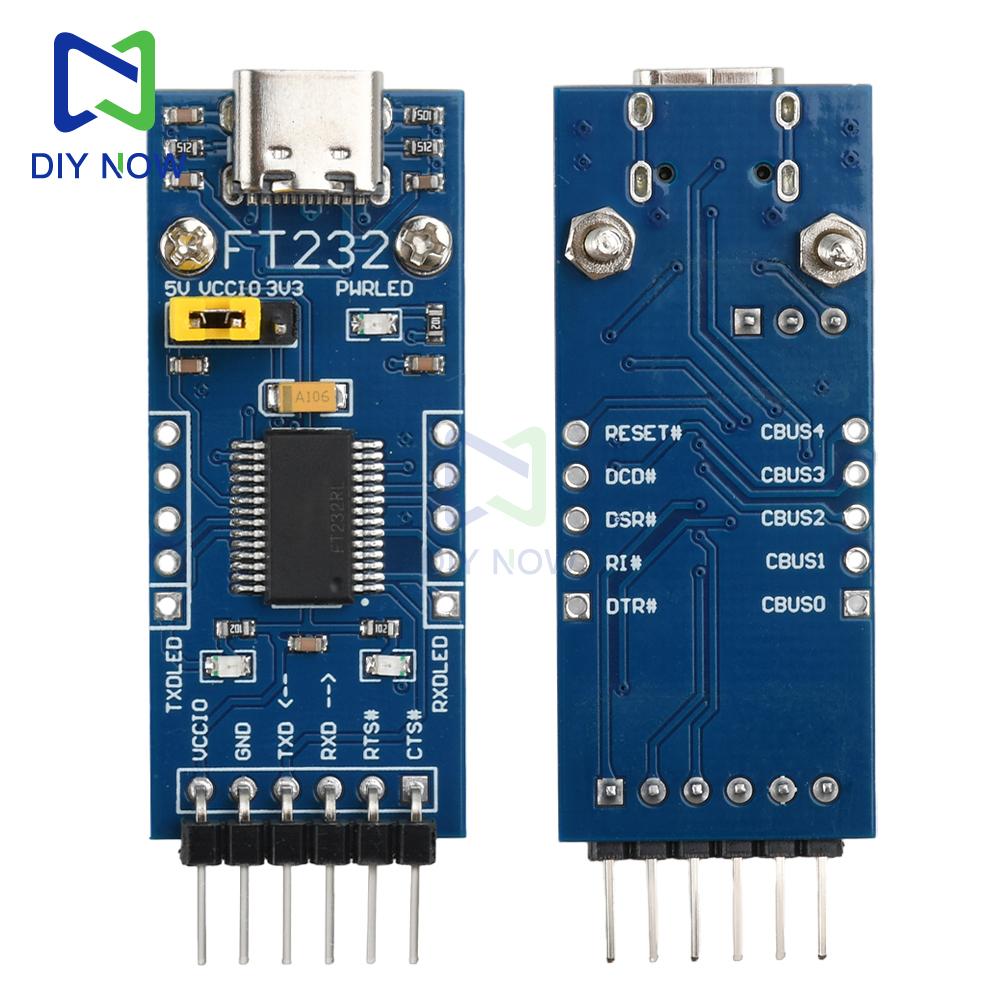

TXD, RXD, RTS #, and CTS # are all led out using bent pins
Other functions PIN: Reserved solder pads (can be plugged in or out to access the user system; PIN spacing supports insertion into a universal board)
PCB board size: 45mm * 19mm
Package Include:
1 * Module
2 * Needle arrangement
2 * seating arrangement
2 * screws
2 * Nut
1 * DuPont Line
