Quantity : 1
High-concerned chemical : none
Package : SOP
Supply Voltage : DC 6-30V
Application : MOBILE PHONE
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Product selling points:
1. Support QC4+/PD3.0/PPS and other fast charging protocols, suitable for mainstream devices
2. Up to 140W, meet the fast charging needs of high-power devices such as laptops/mobile phones
3. DC6-30V input, suitable for various power supply scenarios such as car/power supply

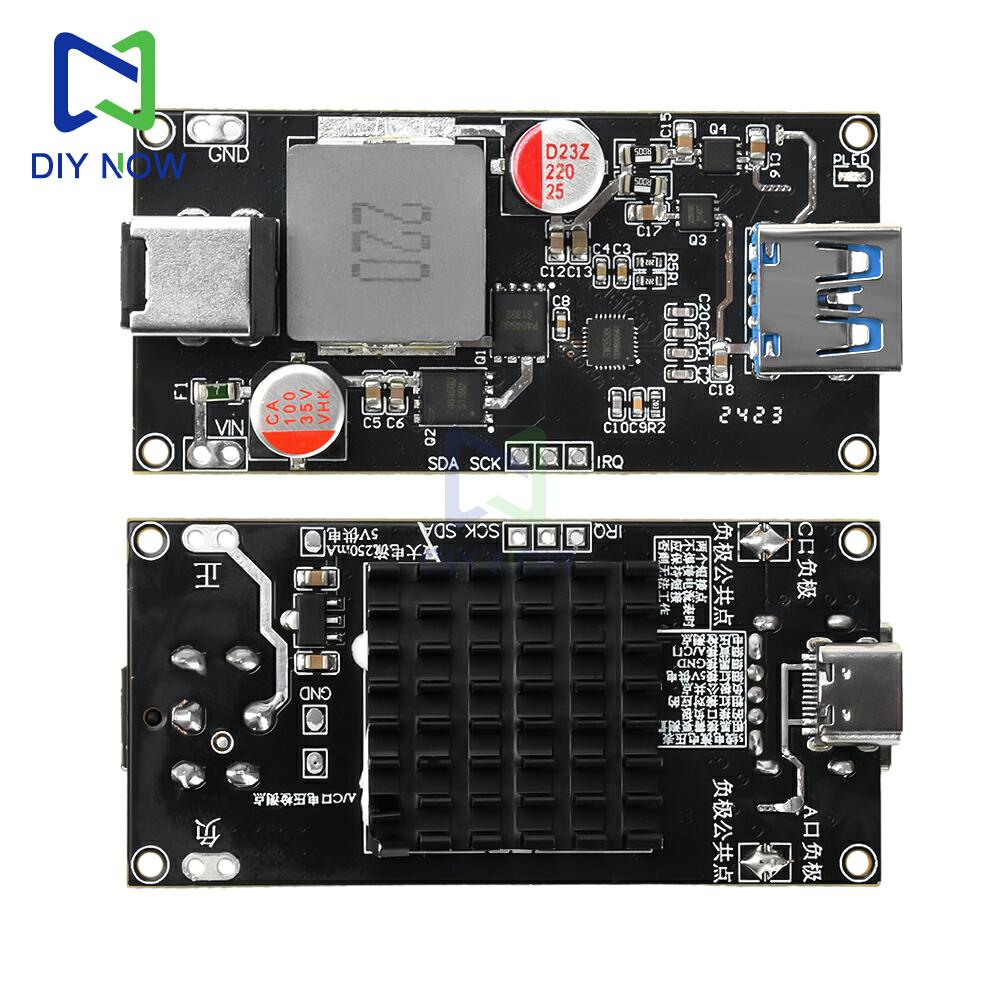

4. Integrated thermistor temperature protection, and equipped with an extra-large heat sink, safe and does not damage the machine
5. Multiple protection mechanisms input overvoltage, undervoltage protection, output overcurrent, short circuit protection, etc.

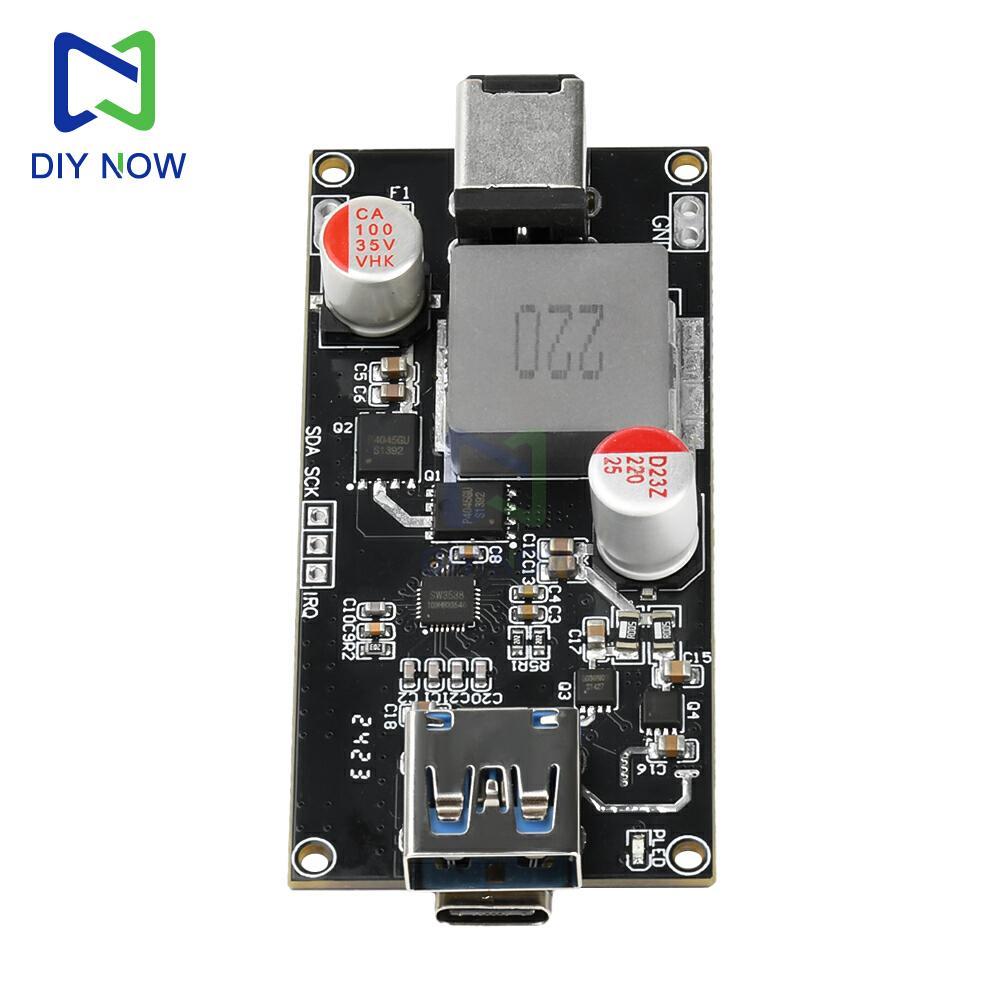

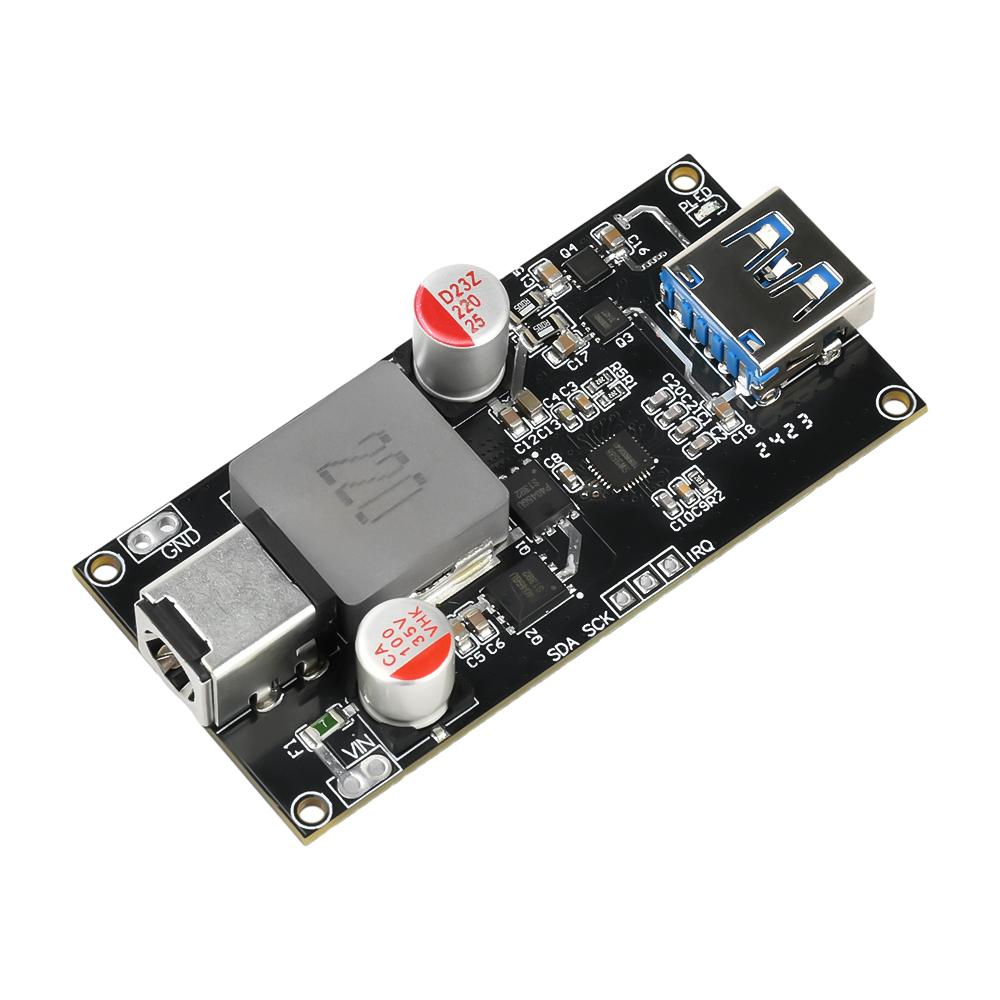

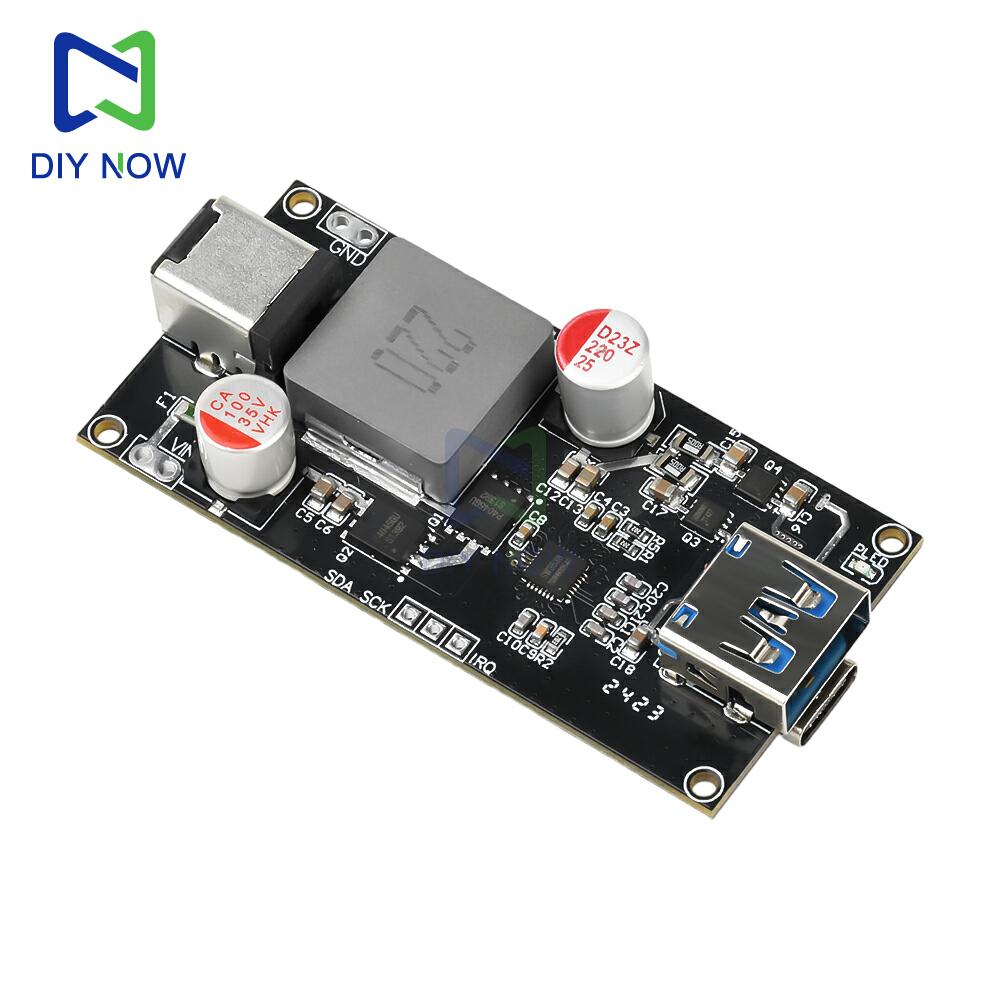

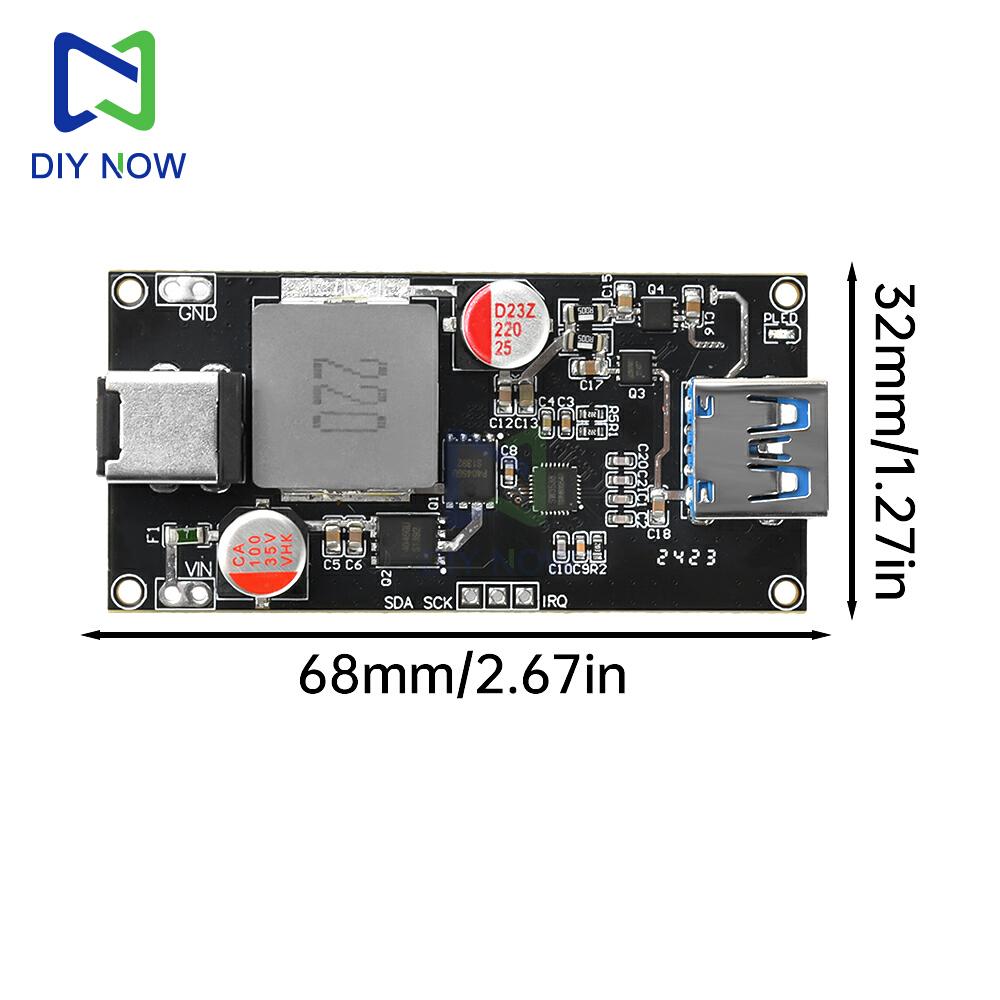

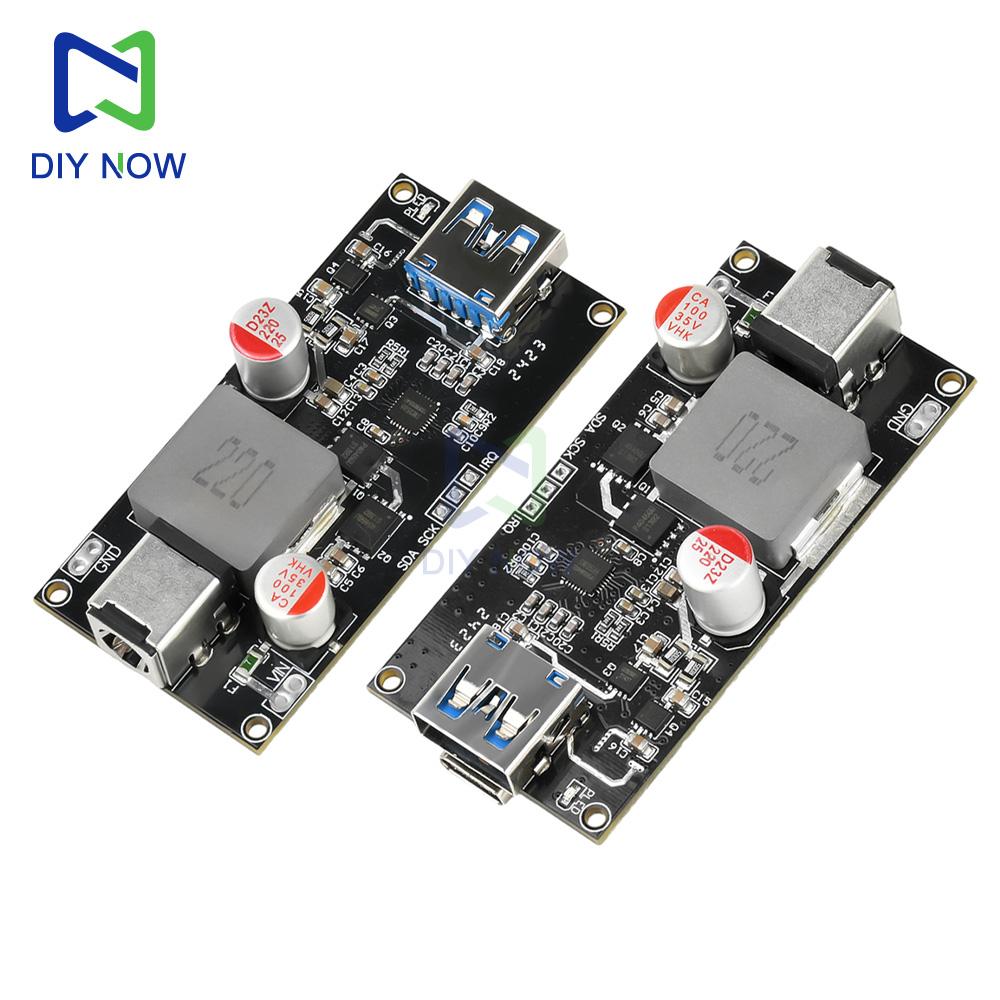

Product parameters:
Input voltage: DC6-30V
Recommended input parameters: DC24V 7A
Boost and buck type: buck (input must be greater than output 1.2V)
Input and output type: only supports output (battery power supply is not recommended)
Output interface: USB-A and USB-C
Input socket size: 5.5*2.1MM (DC5521)
Support full-speed PPS3.3-21V 6.3A 133W
Support PD140W 20V7A@140W
Support QC5/QC4+/QC3+/QC2.0
Support AFC/FCP/high voltage SCP/SFCP
Module input method problem:
This module can be understood as a charger that integrates multiple protocols, but it cannot be connected to AC power. It needs to be used with a DC power supply (power adapter). It is recommended to use a 24V DC power supply. If you need a 100W output, consider the power life at *20%, so choose a 24V5A power supply; 200W output requires a 24V10A power supply
Output power problem:
Since the module is a step-down module, the output must be greater than the input 1.2V. Since 140W is 20V7A of the PD protocol, it can only be fully output if it is greater than 21.2V
Battery power supply problem:
The module can only output and cannot charge the battery. If it is only powered by a battery, it can be used with a 24V battery pack. If it is a car 12V, 12V cannot be full power, the PD protocol is up to 36W, and it is no problem to only charge the mobile phone
A port and C port output at the same time:
Single-channel A port and C port can output at the same time, but there is no fast charging. When outputting at the same time, it is allocated as 5V2A/5V2A
Note:
We cannot guarantee that your mobile phone must support fast charging. Mobile phones from major manufacturers basically have private protocols and are about 30W. You can only use the original charger at full power!
label:yes
Connector type: type-c
GaN support: no
Plug type: European socket
Number of ports: 1 port
