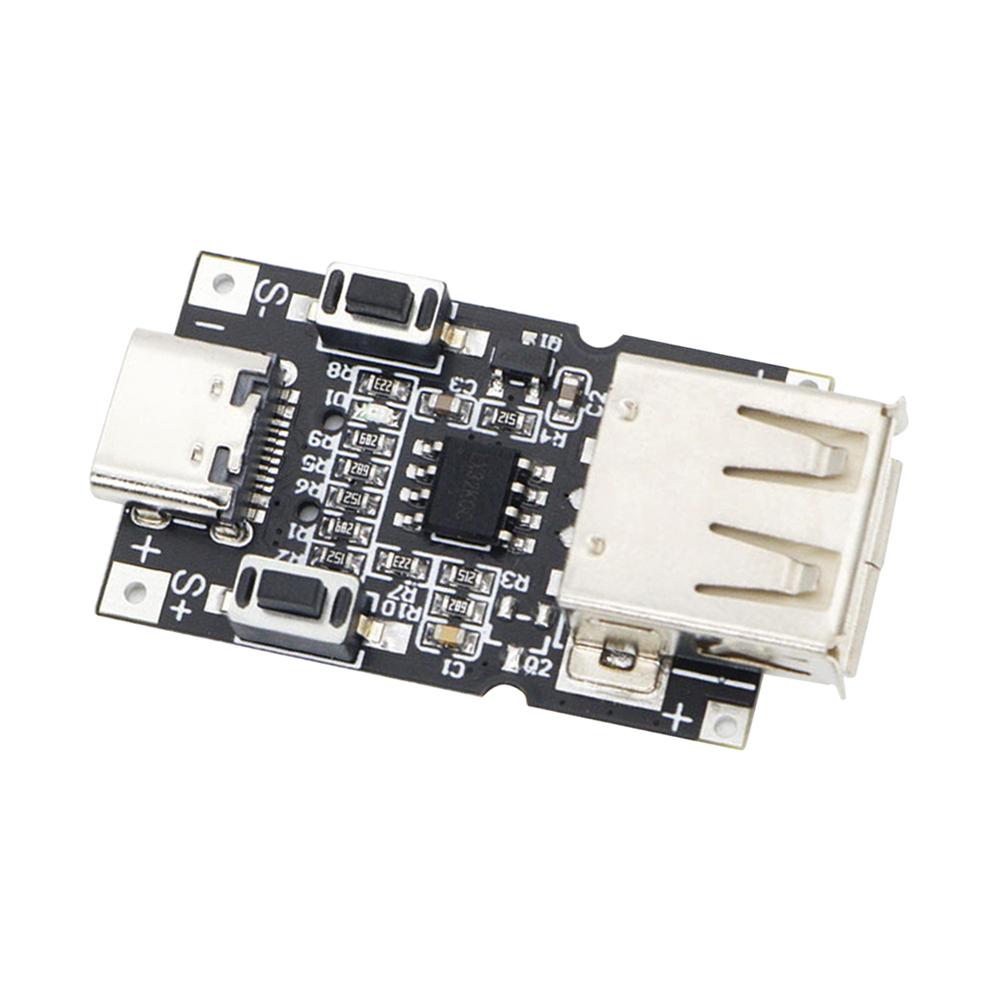

Product selling point:
TYPE-C input port, type-c plus USB output port (the input can be TYPE-C male or female)
Support QC3.0, QC2.0 voltage decoy output, free mode switching
3.QC2.0 mode supports 5V/9v/12V/20V decoy output
QC3.0 mode supports 3.6V to 20V with 0.2V precision regulation
Communication interruption restart function. When the decoy voltage is greater than or equal to 9V, when external interference or other problems cause the decoy to be interrupted, the module will actively restart the decoy
With key lock function to prevent misuse
7.5V/9V/12V/20V quick setting. Suitable for blind switching
The parameters are braked and saved, and the power is turned on again to execute the last decoy setting
No heat, support 100W output
Instructions for use (power supply with QC protocol must be used):
QC2.0 mode features and settings:
Compatible with QC2.0/QC3.0/QC4.0 power supply. The output is fixed at 9V/12V/20v, and the stable operation is as simple as pressing and holding the S-button, and then plugging the module into the power supply, then 9V is tricked out.
Press and hold the S+ button, then plug the module into the power supply, and then trick out 12V.
Press and hold the S+ and S- buttons at the same time, then plug the module into the power supply, and then trick out 20V.
QC3.0 mode features and settings:
Compatible with QC3.0/QC4.0 power supply. The output range is 3.6-20v, and the adjustment takes 0.2V as a step to add and subtract. The specific output range is related to the decoy power supply.
After the module is powered on, first press and hold S+, then press S-, release S- and S+ in turn after 1 second. The module is unlocked and reset to 5V output. After unlocking, the voltage can be increased or decreased by short pressing S+ and S-. Short press once to increase or decrease the voltage by 0.2V. You can also press and hold S- first and then short press S+ to quickly increase the voltage. Short press S+ once to increase the voltage by 1V.

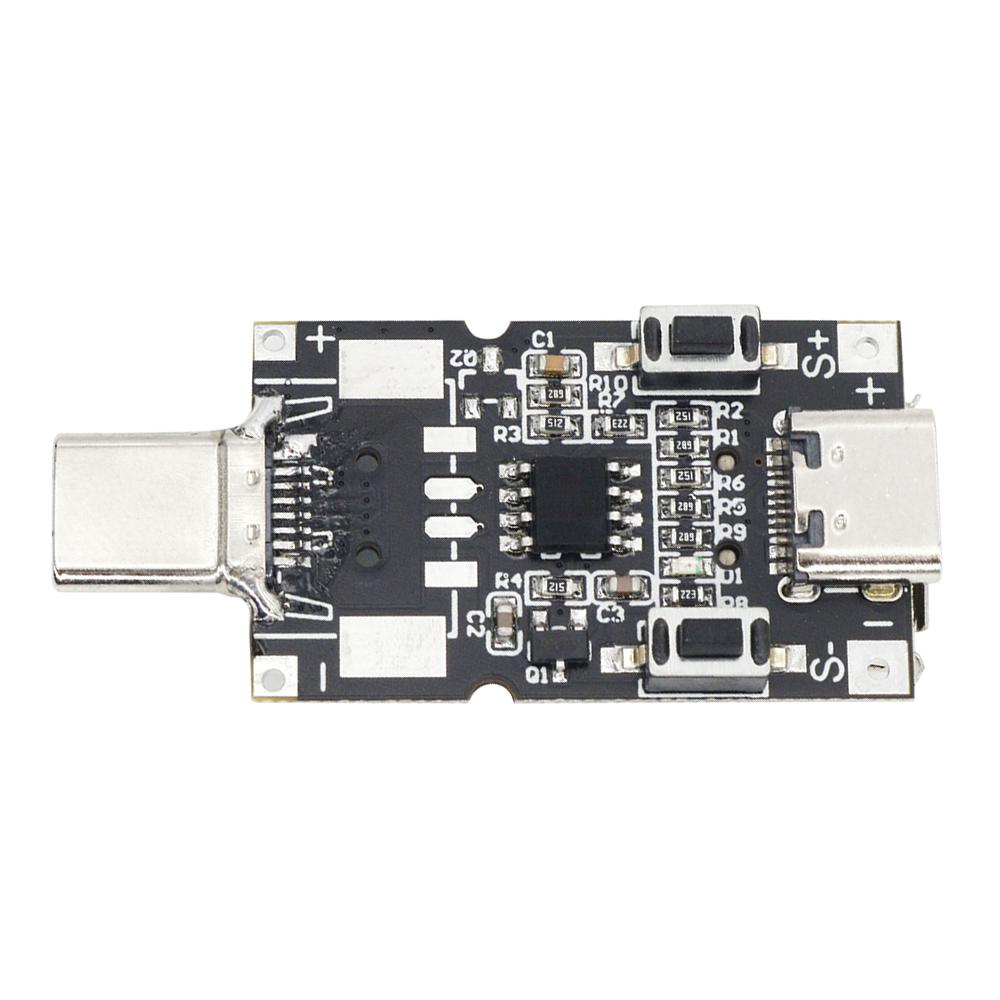

Interface and parameters:

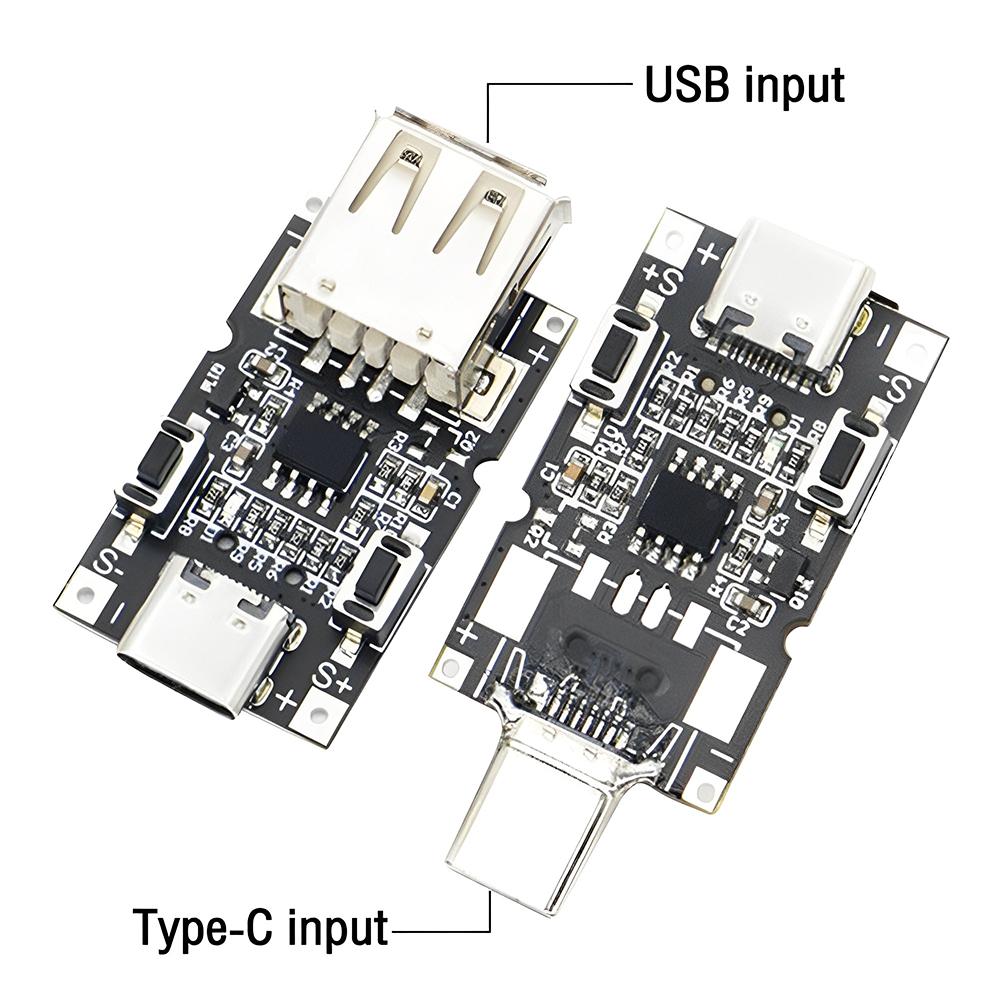

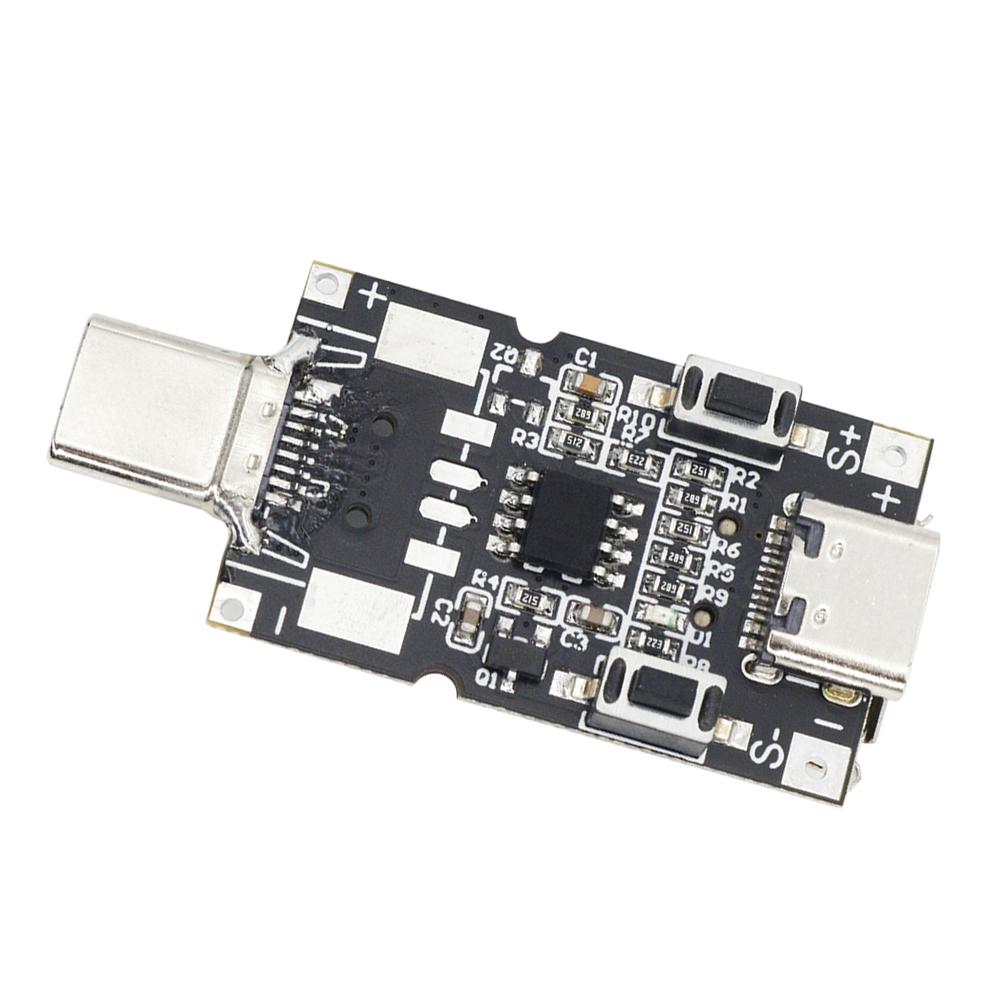

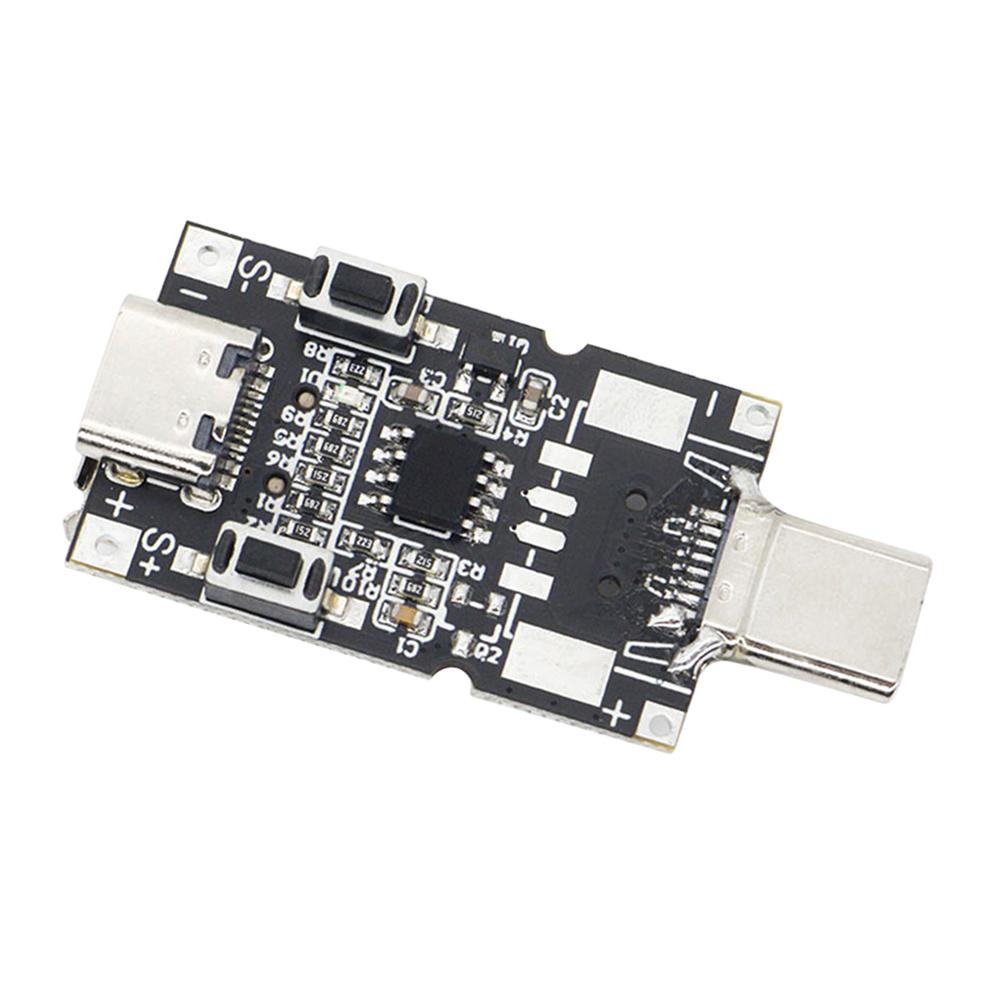

Type-c male: connected to the PD power supply as an input, which can pass 20V5A voltage and current.
Type-c female: connected to the PD power supply as an input, and can also be used as an output interface (keep at this time
CC line is suspended), can pass 20V5A voltage and current.
USB-A female: As an output, it can pass 20V3A voltage and current.
Positive and negative wiring pads: As an output, it can pass 20V5A voltage and current.
Question: how much current can be tricked out
Answer: The board is responsible for deceiving the voltage, and the current should not exceed the voltage that the USB interface can withstand. The output current of the Type-c male and female connectors is 5A, and if the USB-A port is used, the withstand current is generally 3A. So do not exceed this current. There will be no problem. actual current size. It depends on your power supply and your load. The board is only responsible for tricking out the voltage. ((For example: your mobile phone charging head is 9V2A/12v1.5A, then the current will not exceed 1.5A after being tricked out with a 12v decoy)
Problem: Measuring the decoy voltage is not accurate
Answer: The decoy is only responsible for telling the power supply how high the voltage I need you to output. The module does not have the function of determining the actual voltage. This is affected by factors such as the voltage accuracy and current of the power supply itself.
Package list:
Decoy *1 (style optional)
label:yes
Connector type: type-c
GaN support: no
Plug type: European socket
Number of ports: 1 port
