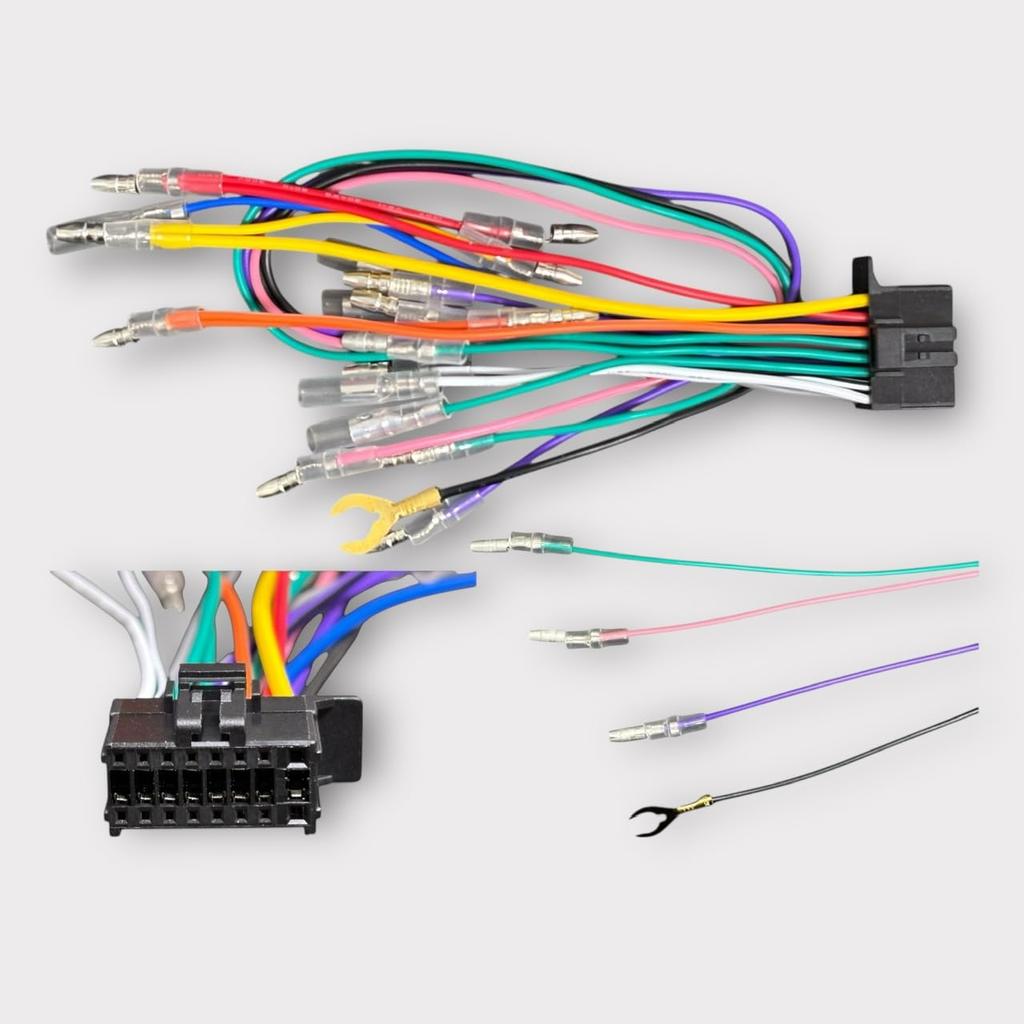

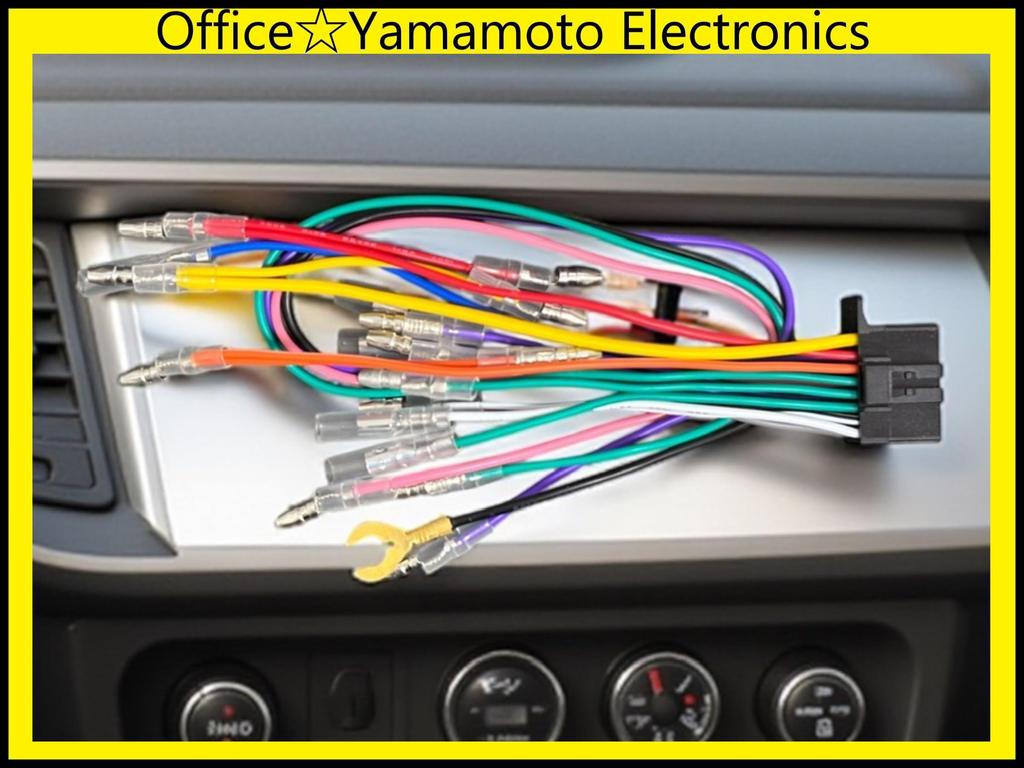

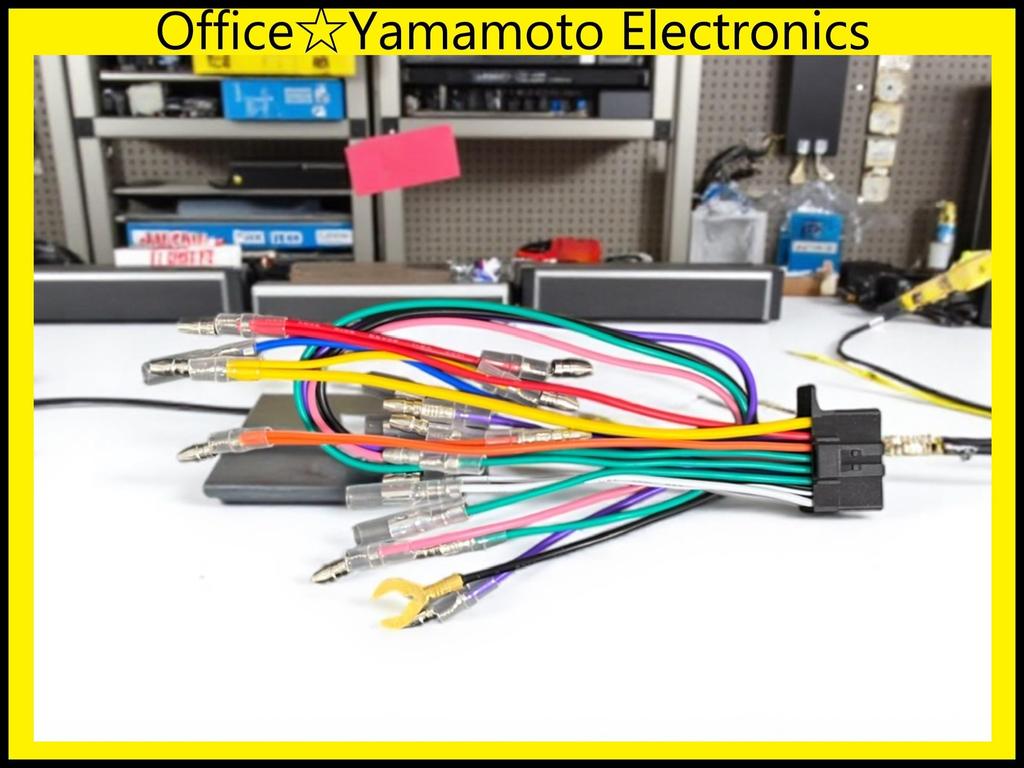

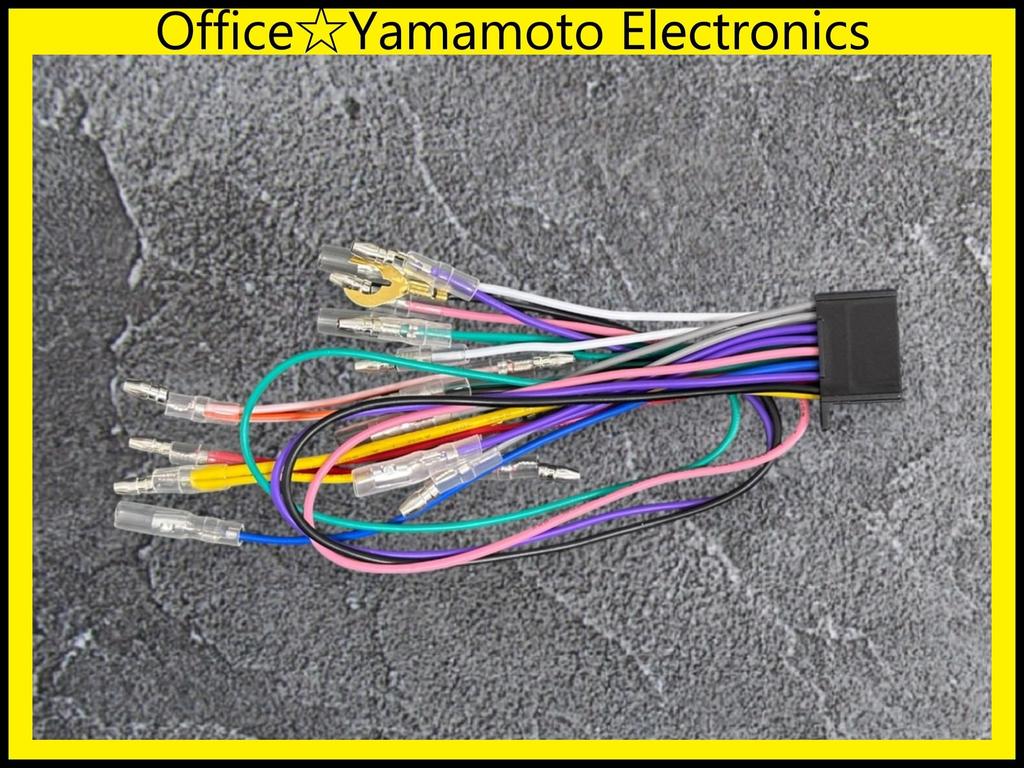

connector for car compatible with Carrozzeria/Pioneer 16-pin harness, audio/navigation systems, 30cm/8cm wiring, AVIC-CW/RW/RZ

---------------------------------------------------------------------- [JOOM-Certified Top Store] 🔹 Operated by a certified Japanese seller. Shop with confidence. ---------------------------------------------------------------------- ------------------------------------------------------------------------------------------------------------------ ★ (While we carry a wide variety of products, the following precautions apply to some of them. Please note that these precautions are listed for all products.) 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

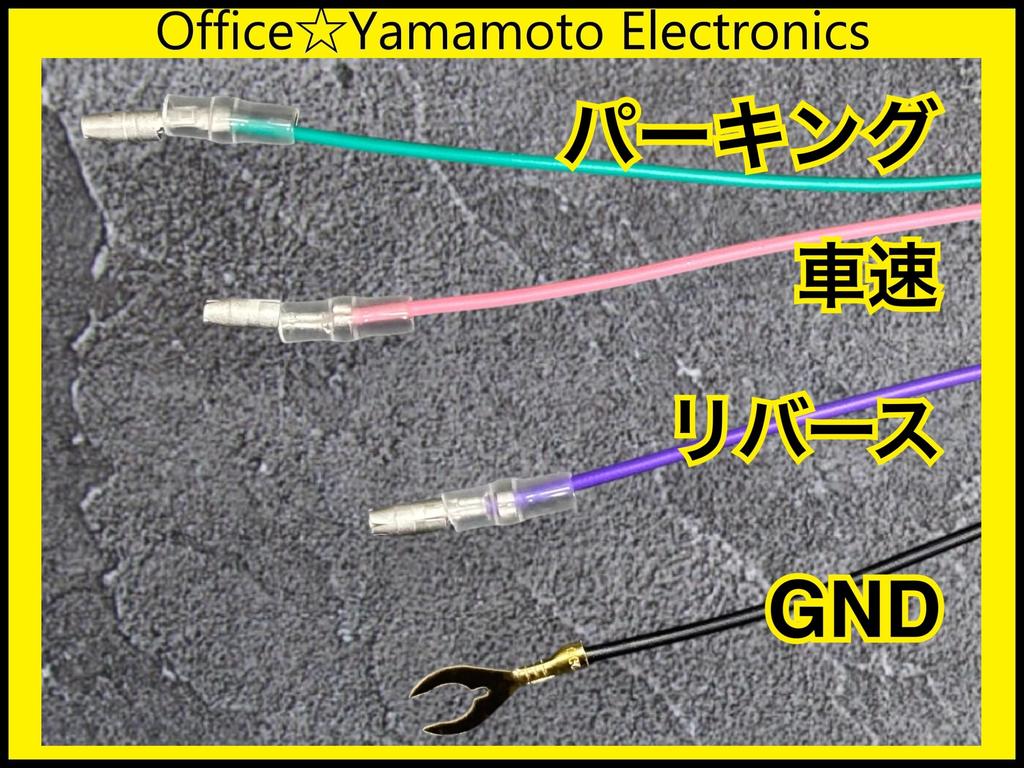

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------ Compatibility: 16-pin connector harness compatible with many Carrozzeria and Pioneer AVIC series navigation systems (CW/RW/RZ). Wiring specifications: Consists of 9 speaker wires (approx. 8cm), 3 power supply wires (14cm), and 4 wires (approx. 30cm) for ground, vehicle speed, parking, and reverse. Power Connection: Equipped with distribution wiring for ACC, illumination, and backup power, compatible with various in-vehicle systems. Color coding: Easy-to-identify color scheme including vehicle speed (pink), parking (green), reverse (purple), and earth (black). Speaker Connection: Supports front/rear left and right speaker wiring and antenna connection, allowing you to build a complete audio system. This is a 16-pin connector harness for Carrozzeria and Pioneer car audio and navigation systems. In addition to the main power wiring for ACC, illumination, and backup, it also includes signal wires for vehicle speed, parking, and reverse. The wiring lengths are approximately 30cm for the four main wires, approximately 14cm for the three power extraction wires, and approximately 8cm for the other nine wires. It is compatible with many Carrozzeria models, including the AVIC-CW series, RW series, and RZ series. Speaker wiring is provided for both front and rear left and right speakers, enabling efficient connection of the entire system. When installing, please ensure that the work is performed by someone with expert knowledge. The wiring is color-coded for easy identification: ACC (distribution), illumination (distribution), backup (distribution), vehicle speed (pink), parking (green), reverse (purple), and ground (black). Compatibility has been confirmed with models such as AVIC-CW902-M, AVIC-RW511, and AVIC-ZH0007.
