Model Number : Power Frequency Inverter Board
Output Power : 1 - 200KW
Type : DC/DC Converters
Weight : As Description
Size : As Description
Output Type : As Description
Brand Name : Aideepen
Origin : Mainland China
Certification : NONE
Condition : New
Type : Power Frequency Inverter Board
Key Word : Inverter Board
Dropship : Support

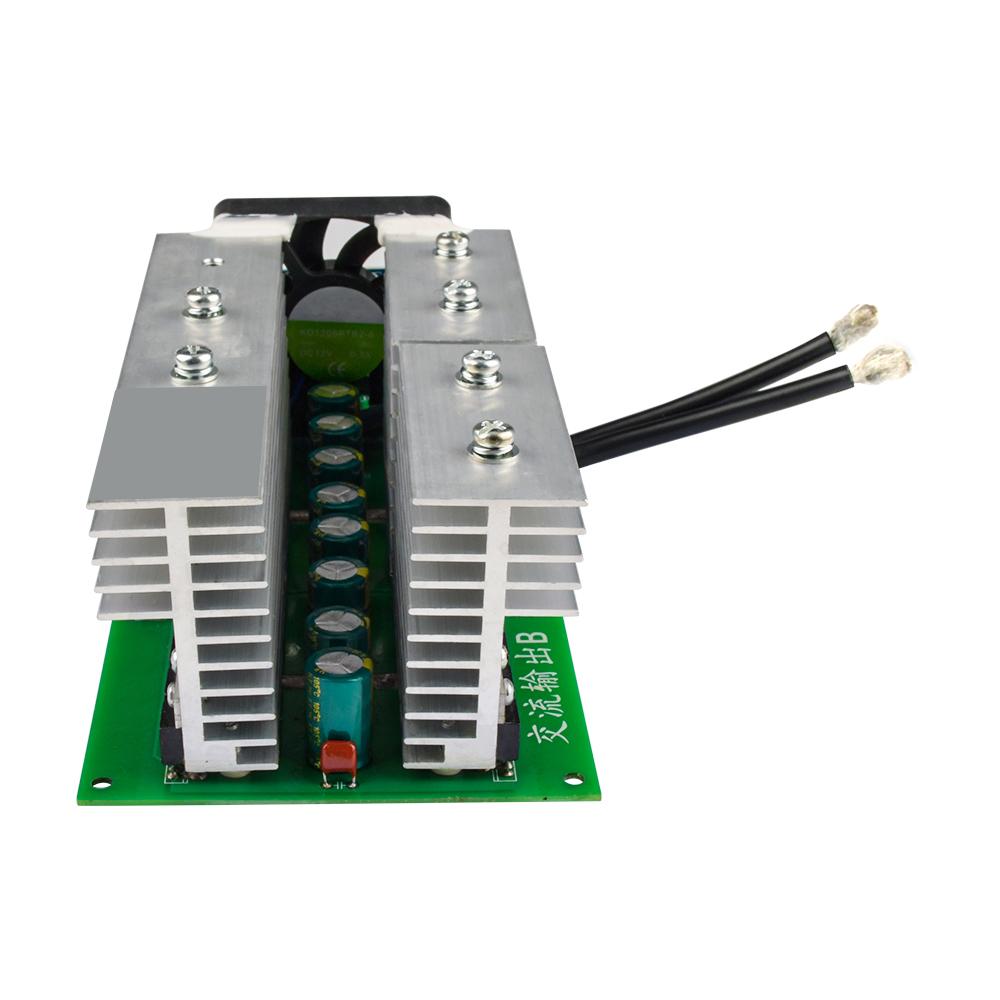

3000W Pure Sine Wave Power Frequency Inverter Board 24V 36V 48V 4000W 5000W Power Perfect Protection Power Supply
put voltage : DC12V/24V/36V/48V/60V/72V/96V
output voltage : AC220V
output power : 1500W/3000W/4000W/5000W/6000W/7500W/9000W
output frequency : 50Hz/60Hz 'adjustable'
Motherboard size: 240mm * 100mm * 65mm
Motherboard weight: about 0.82KG2.Transistors
12V 24V use HY1906
36V 48V use RIFB4710
60V use RIFB4710
72V use HY3215 HY3312
96V use HY1920
3.transformer
12V--use 6.5V to 220V transformer
24V--use 13V to 220V transformer48V--use 26V to 220V transformer36V--use 19V to 220V transformer60V--use 32V to 220V transformer72V--use 39V to 220V transformer96V--use 52V to 220V transformer4.Features
1.enough power
2.pure sine wave
3.circuit is high efficient and stable
4.small no-load current
5.the battery has undervoltage / overload / overheat protection
6.Simple installation
7.work with all kinds of power frequency transformers
5.Protection
1. Battery low voltage protection:
When
the battery voltage is lower than 10.5V per node, the inverter will
turn off the inverter (there is no AC voltage output) and the inverter
is in standby mode.
2. Battery over-voltage protection:
When the battery voltage is higher than 15V, the inverter will turn off the inverter and enter the standby mode.
3. The battery starts automatically:
When
the battery is under-voltage protection, when the solar or wind energy
charges the battery up to 13V per section, the inverter automatically
starts to output the AC voltage to power the load. Battery overvoltage
protection After the overvoltage protection and then restored to 15V per
section, the inverter also starts automatically.
4. Temperature control fan and over-temperature protection:
Fan
does not work during normal inverter operation, when the temperature is
too high, the fan automatically runs, when the temperature drops, the
fan automatically stops running. When the fan is damaged and the
temperature is too high, the inverter will turn off the inverter and
enter the standby mode.
When the temperature drops, it will automatically start the inverter and output AC power.
5 impact and short circuit protection:
The
inverter has real-time hardware by wave current limit protection, and
software delay (400mS) short-circuit protection plus power frequency
isolation transformer. Improves the impact resistance of the product The
reliability of the product.

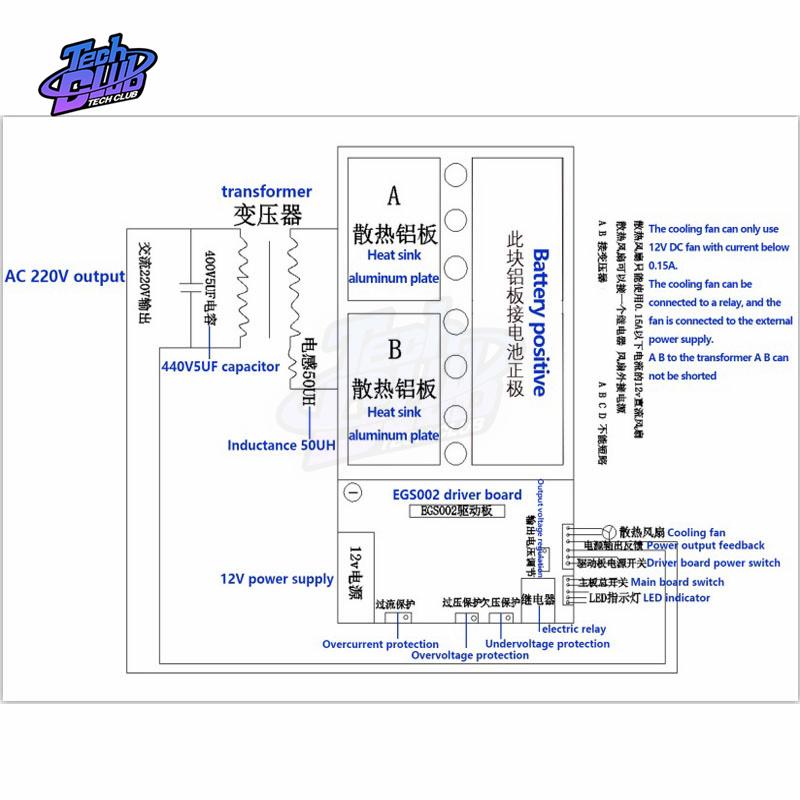

6.Driver board
The
default setting of the driver board jumper is JP5, P2, JP7, JP8 short
circuit, the corresponding function is 50Hz, 3S soft start, dead time
300ns,
Note: The same function jumper cannot be shorted at the same time!! If JP1 cannot be shorted with JP5 at the same time.
LED to determine the type of fault
1. Normal: always bright
2. Overcurrent: blink twice, off two seconds, has been circulating
3. Overvoltage: blinking three times, off two seconds, has been cycling
4. Undervoltage: blinking four times, off two seconds, has been circulating
7.Note
1.Dear
customer , if you have any technical problems , pls contact with
customer , we have specialist . thank you !Before shipment, we
have debugged, please rest assured to buy and use.
2.This link only has an inverter, other transformers need to be purchased separately.
8.Package

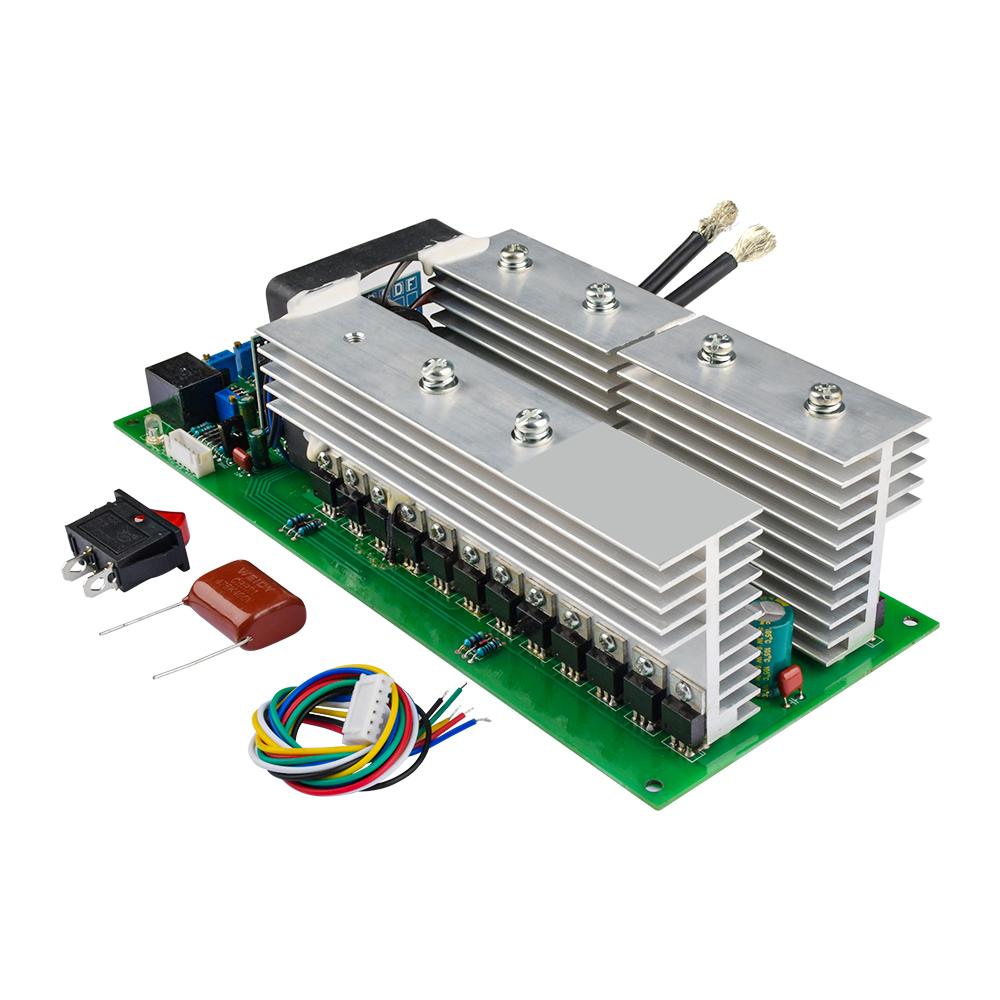

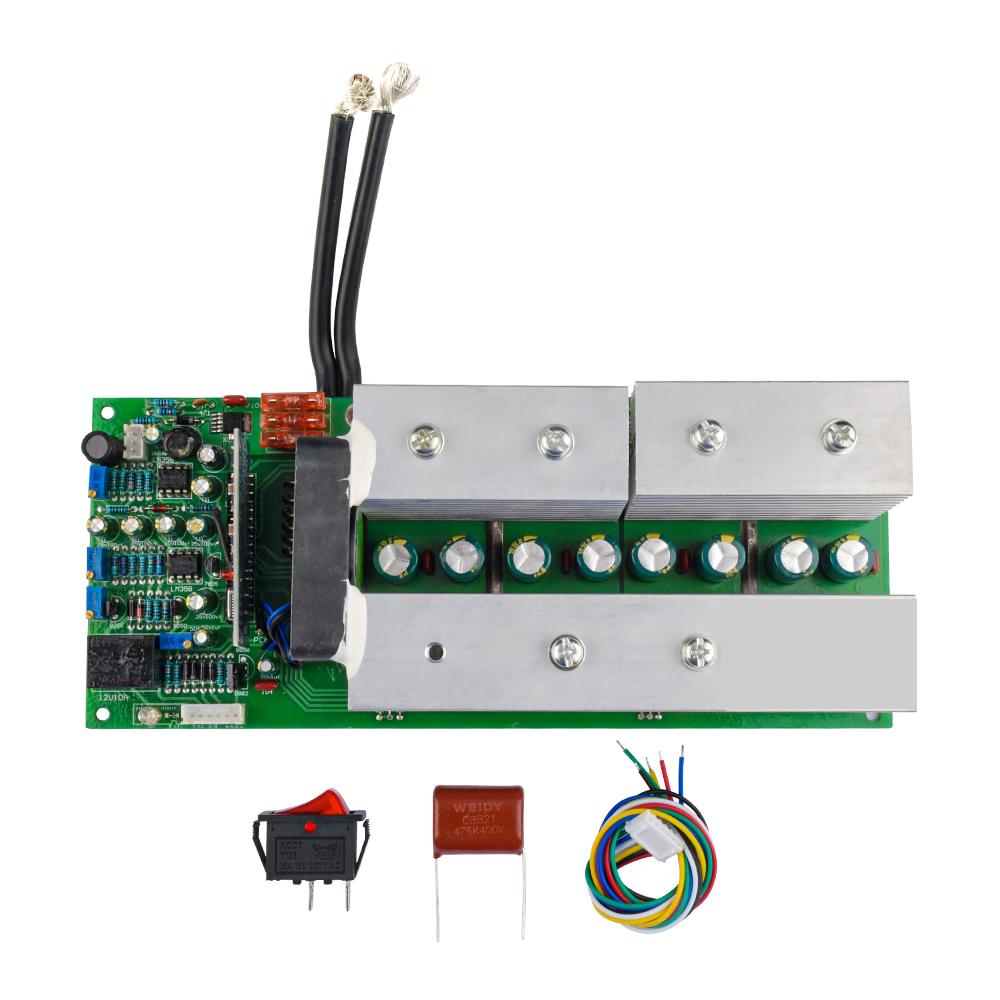

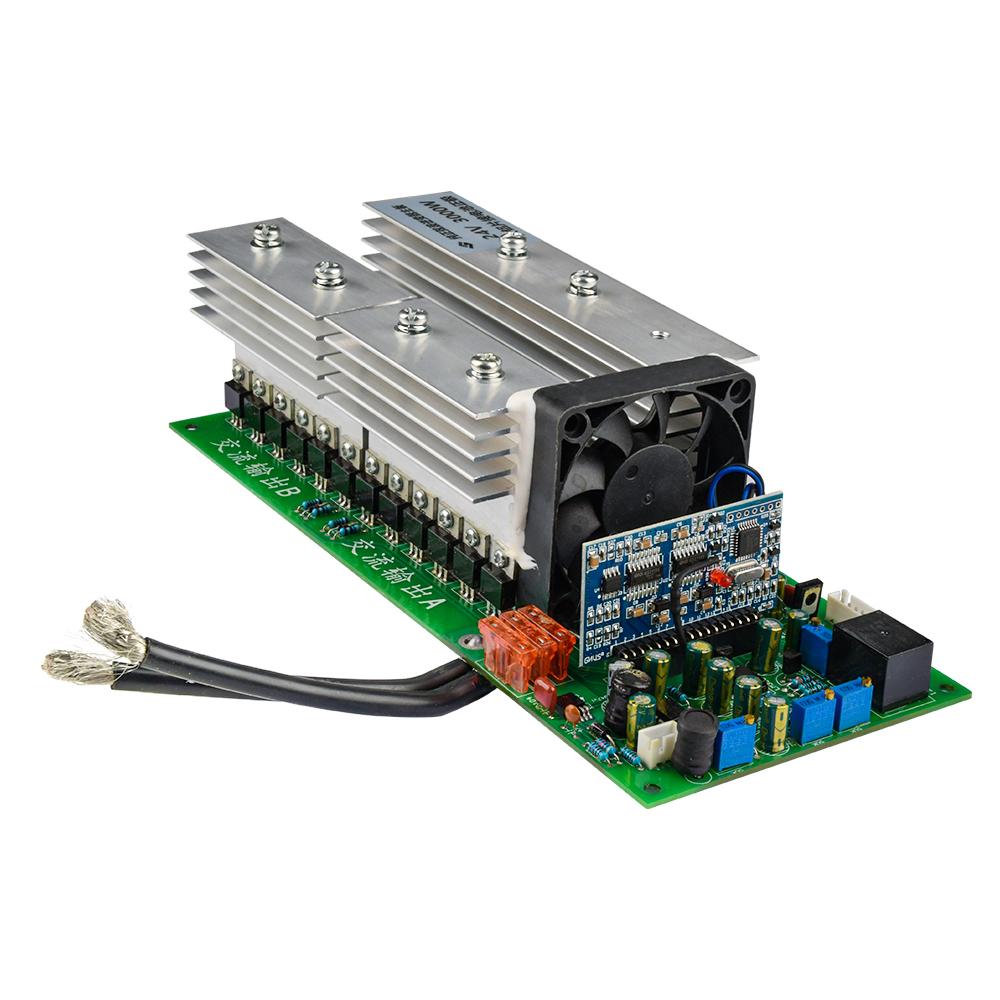

1pcs pure sine wave power frequency inverter board
label:yes
