High-concerned chemical : none
Communication method : Other
Brand Name : Shunmaii
Origin : Mainland China
Audio Module : Mini MP3 Player IO Trigger
Voice Playback Module : USB Download Flash Audio Board Module
2. Support The Magnification (Khz) : 8/11.025/12/16/22 05/24/32/44.1/48.
Type : Audio Player
Model : DY-SV17F

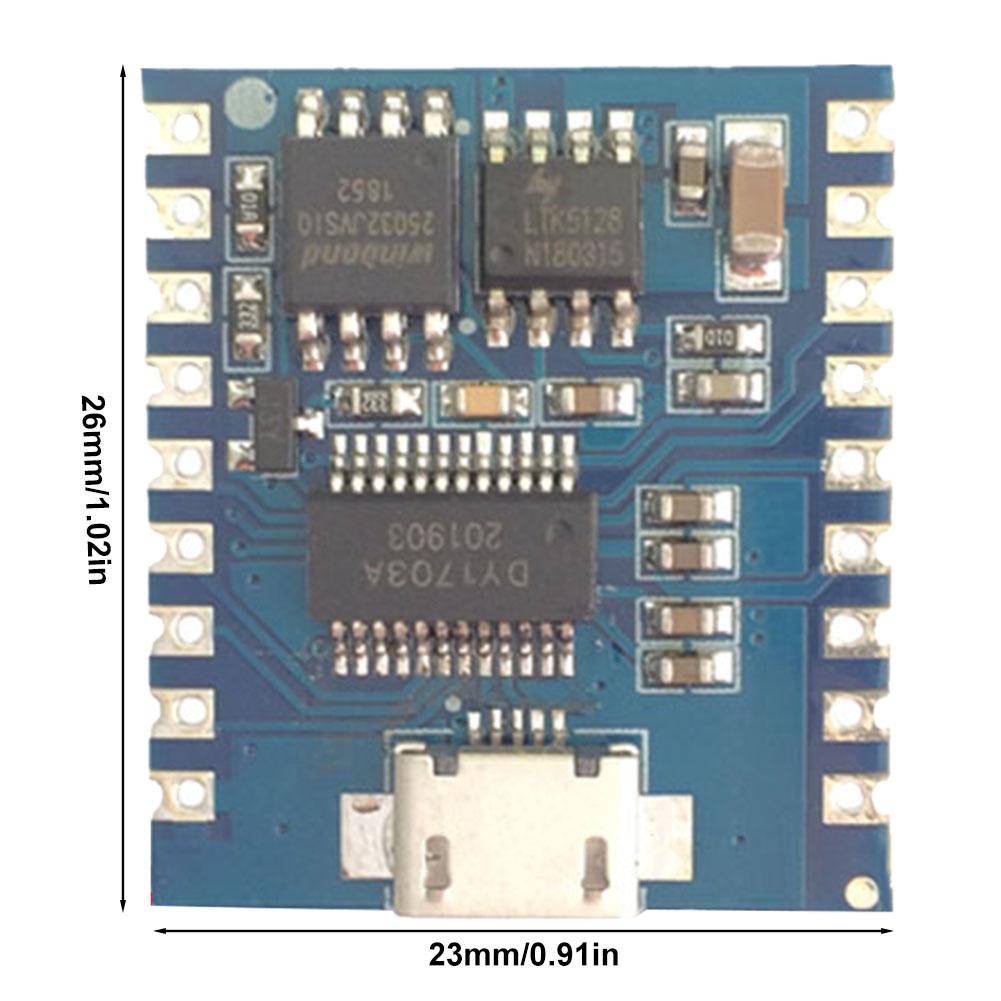

Product Size : 26.00 X 23.00 X 5.00 MM/1.02 X 0.91 X 0.2 Inch
Condition : New
DY-SV17F Mini MP3 Player IO Trigger USB Download Flash Voice Module 5 W USB Download Flash Audio Board Module 4 MB MP3 Player Voice Module
Feature:
1. Versatile Controls:The audio module offers 8-channel 10 control triggers that can play up to 255 songs, and UART control triggers that can play up to 65,535 songs. It also features OneLine single bus control for triggering playback, providing various ways of control for your convenience.
2. Onboard D-class Amplifier:Equipped with a 5W D-class amplifier, the mini MP3 player IO triggercan directly drive 4-8 ohm speakers, ensuring powerful and rich sound for your audio projects.
3. Large Onboard Memory:The voice playback modulecomes with 32 M-bit (4 Bytes) flash storage for storing audio files, offering ample space for a wide range of songs or sound effects.
4. USB Direct Copy:You can easily copy audio files directly through USB. The USB download flash audio board modulealso allows for specified song playback, giving you greater control and flexibility over your audio experience.
5. Compact and Compatible Design:With a board thickness of 0.8 mm and postage stamp holes for surface mount soldering, this mp3 player voice module is compatible with 2.54 mm pins. Its compact design makes it easy to integrate into your audio system.
Specification:
IO Control Can Play More Than 255 Songs, And UART Control Can Play A Maximum Of 65535 Songs.
Oneline Single-Line Control Triggers Playback, And The On-Board D Series 5w Power Amplifier Is Directly Connected To The 4-8 ohm Speaker.
On-Board 32m-Bit(4mbytes) Flash Memory Storage Audio Files, Usb Direct Copy Audio Files, Designated Song Playback, Board Thickness 0.8mm, Stamp Hole Can Be Soldered, Compatible With 2.54mm Pin.
133/5000
Integrated I/O Segment Trigger, Uart Serial Control, One_line Single Bus Serial Control, Standard Mp3 And Other 7 Working Modes; On-Board 5w Class D Power Amplifier, Can Directly Drive 4, 3-5w Loudspeakers;
1. Support Mp3, Wav Decoding Format, On-Board 32mbit (4mbyte) Flash Audio File Storage, Can Be Connected To The Computer Via Usb Data Cable To Update Audio Files.
2. Support The Magnification (Khz) : 8/11.025/12/16/22 05/24/32/44.1/48.
3.24-Bit Dac Output, Dynamic Range Support 90db, Snr Support 85db.
4. On-Board 32mbit(4mbyte) Flash Memory, Via Usb Connection Computer Update Audio Files.
5. Equipped With 5w D-Type Power Amplifier, Direct Drive 4 Ohms, 3-5 Speakers.
6. The Uart Serial Port Controls The Audio Playback Function, Including Playback, Pause, Selection, Volume Increase Or Decrease. It Can Play A Maximum Of 65535 Songs With A Baud Rate Of 9600bps.
7. Support 3 I/O Port Control, Can Choose 7 Working Modes.
Module Only, Does Not Include Other Accessories In The Picture Demo!
Attention:
"Key Combination Playback" Means That Io0-Io7 Outputs The Corresponding Level And Restores The Original High Level, Similar To The Key Triggered Once.
"Level Combination Playback" Means That The Io0-Io7 Outputs Of The Corresponding Level Remain At The Same Level.
The Difference Between "I/O Combination (Independent) Mode 0" And "I/O Combination (Independent) Mode 1" Is That The Former Continues To Play The Current Track Until The End After Releasing The Level, While The Latter Mode Immediately Plays The Track After Releasing The Level.
Type: Audio Player
Model: DY-SV17F
Product Size: 26.00 X 23.00 X 5.00 MM/1.02 X 0.91 X 0.2 Inch
Type: Module
Condition: New
Note:
Due To The Different Monitor And Light Effect, The Actual Color Of The Item Might Be Slightly Different From The Color Showed On The Pictures. Thank You!
Please Allow 1-2 CM Measuring Deviation Due To Manual Measurement.
1 X DY-SV17F MP3 Player Voice Module
