Feature:
1. MEASURING PARAMETER: This clamp meter can accurately measure the maximum 400A AC current, 600V AC DC voltage, resistance, capacitance, conductivity, temperature, diodes, etc.
2. LCD BACKLIGHT SCREEN: The clamp multimeter adopts a digital backlight LCD display screen and an LED flashlight, which can read clearly and intuitively in low light conditions.
3. MULTIPLE FUNCTIONS: With liquid and air conditioning port measurement, low battery indication, data retention, true RMS, automatic range, SEL function, 10 minute automatic shutdown and zero function.
4. EASY OPERATION: The non contact detector can easily and quickly determine whether there is voltage, without touching any wires, just press the NCV button, with VFD and LoZ modes.
5. PORTABLE DESIGN: The digital clamp multimeter is portable design, for comfortable grip, providing non contact AC voltage detection, with all round overload protection.
6. WIDE APPLICATIONS: This clamp meter has high resolution and accuracy, equipped with 2 test pens, and widely used for electrical testing in automobiles, industries, or homes.
Specification:
.Item Type: Clamp Meter
Model: HT207A
Material: ABS
Battery: 2 x 1.5V AAA Battery (battery not included)
DC Voltage Range
Resolution
Accuracy
200mV
0.1mV
+(0.5percent Reading+5 Words)
2V
0.001V
20V
0.01V
200V
0.1V
600V
1V
AC Voltage Range
Resolution
Accuracy
2V
0.001V
40500Hz: +(1.0percent Reading +5 Words)
Other: +(2.0percent Reading +5 Words)
20V
0.01V
200V
0.1V
600V
1V
AC Current Range
Resolution
Accuracy
2A
0.001A
4565Hz: +(2.5percent Reading+5 Words)
Other: +(3.0percent Reading+10 Words)
20A
0.01A
200400A
0.11A
Resistance Range
Resolution
Accuracy
200 Ohm
0.1 Ohm
+(1.0percent Reading +5 Words)
2k Ohm
0.001k Ohm
20k Ohm
0.01k Ohm
200k Ohm
0.1k Ohm
2M Ohm
0.001M Ohm
20M Ohm
0.01M Ohm
Package List:

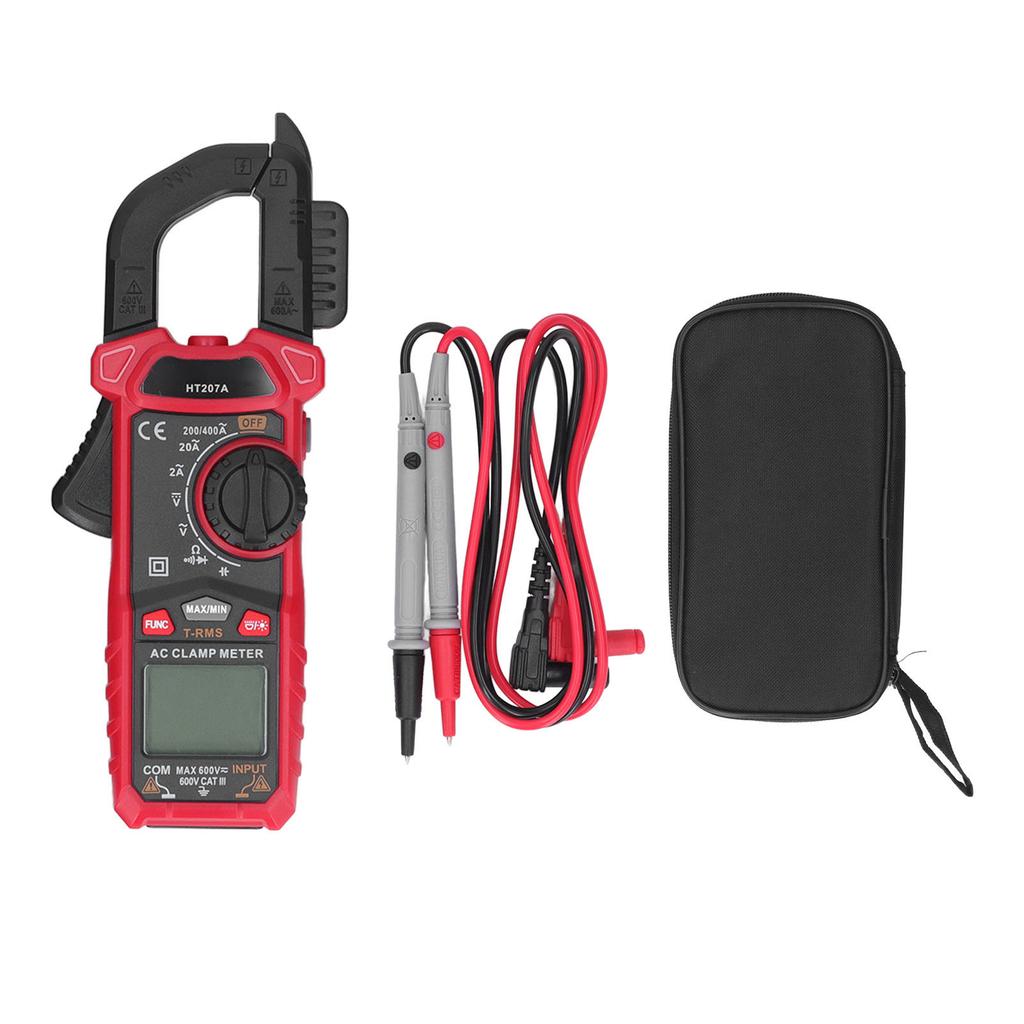

1 x Clamp Meter2 x Test Pens1 x User Manual1 x Storage BagMEASURING PARAMETER: This clamp meter can accurately measure the maximum 400A AC current, 600V AC DC voltage, resistance, capacitance, conductivity, temperature, diodes, etc.
LCD BACKLIGHT SCREEN: The clamp multimeter adopts a digital backlight LCD display screen and an LED flashlight, which can read clearly and intuitively in low light conditions.
MULTIPLE FUNCTIONS: With liquid and air conditioning port measurement, low battery indication, data retention, true RMS, automatic range, SEL function, 10 minute automatic shutdown and zero function.
EASY OPERATION: The non contact detector can easily and quickly determine whether there is voltage, without touching any wires, just press the NCV button, with VFD and LoZ modes.
PORTABLE DESIGN: The digital clamp multimeter is portable design, for comfortable grip, providing non contact AC voltage detection, with all round overload protection.
