Product Name: Tamiya 1/10 RC XM-01 Pro Chassis Kit
Brand: Tamiya
Model Number: 58738
Seller Classification: ラジコンTOP>カーキット
Manufacturer: Tamiya
Country of Origin: Japan
Product Description:

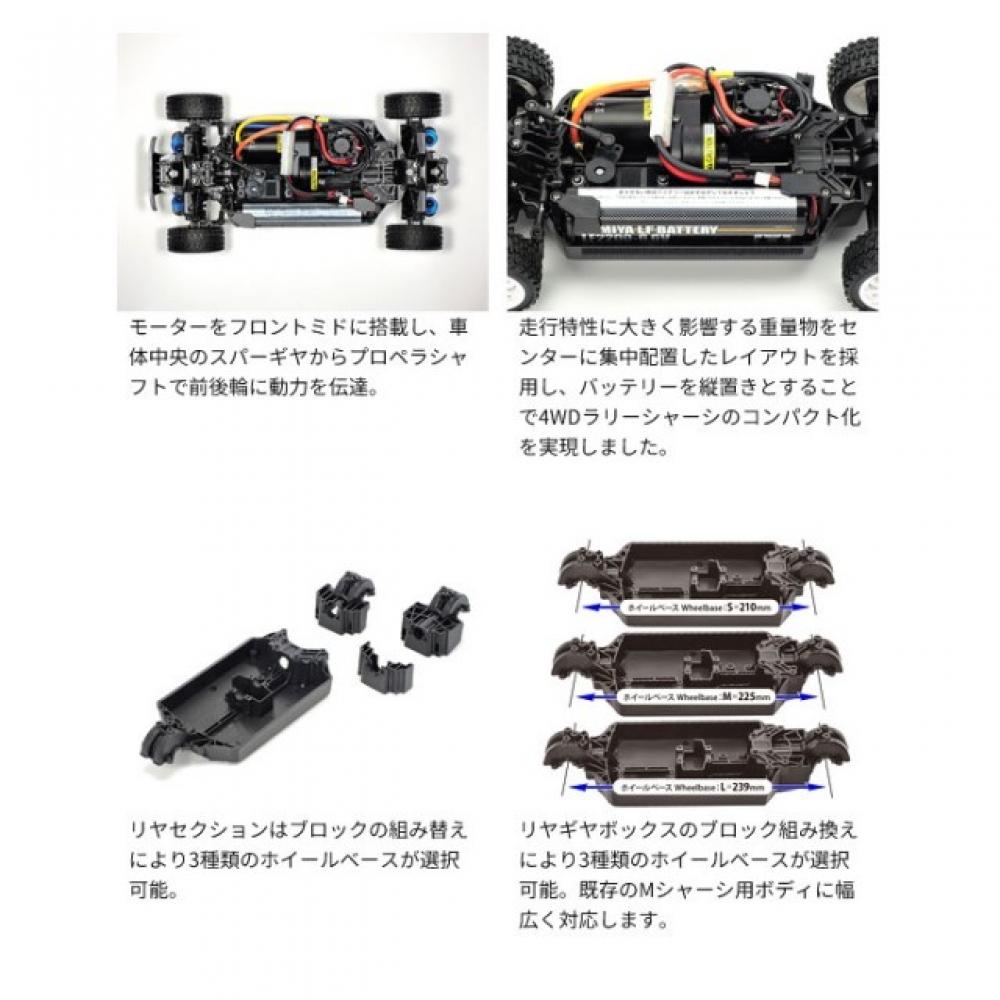

This compact rally chassis features a 4WD shaft system. It is an assembly kit for an electric RC car featuring a motor mounted in the front-mid, transmitting power to the front and rear wheels from the central spur gear via the propeller shaft.
The main frame allows the battery to be positioned vertically by rotating it 90 degrees to the left, concentrating heavy components towards the center.
By modifying the rear section, three types of wheelbases can be selected. The suspension is equipped with aluminum oil dampers and features a double-wishbone structure for independent four-wheel control.
The front caster angle is set to 5 degrees, and hub carriers/up rights are available for selecting from two different ride heights.
The front bumper is designed with a skid angle to minimize interference with the ground.
【Main Equipped Parts】

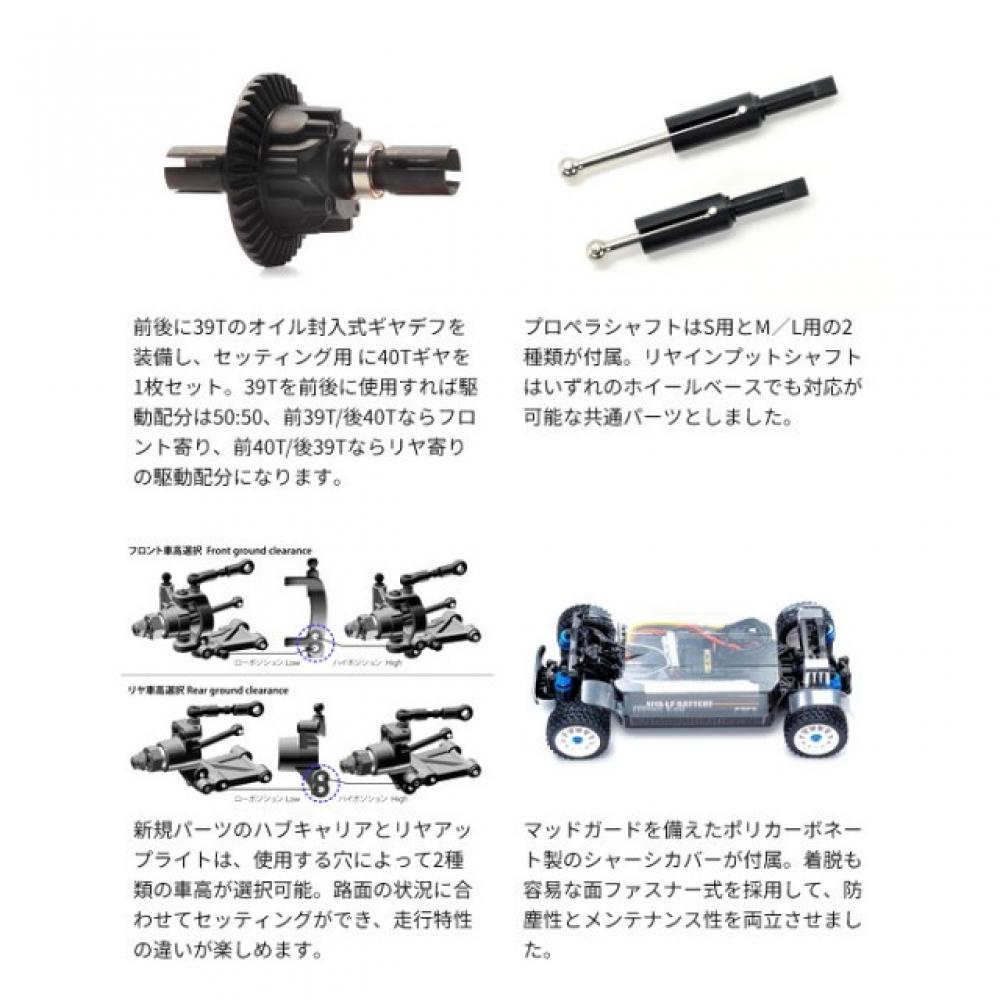

● Oil-filled gear differentials front and rear (set of 2 pieces 39T, 1 piece 40T) ● Universal drive shafts front and rear ● Aluminum oil dampers front and rear (touring car size) ● Ride height adjustable hub carriers, uprights ● Turnbuckle upper arms ● Full bearing specification ● High torque servo saver (black) ● Polycarbonate chassis cover
【Basic Specifications】
● Chassis Length: 308mm (with wheelbase of 225mm) ● Chassis Width: 165mm ● Wheelbase: selectable from 210mm, 225mm, 239mm (3 types) ● Frame: bathtub type ● Drive Method: Front midship motor, shaft drive 4WD ● Differential Gear: oil-filled gear differential front and rear ● Steering: 3-segment tie rod type ● Suspension: 4-wheel double wishbone ● Damper: aluminum cylinder oil damper ● Gear Ratio: 8.27:1 when using the kit's 22T pinion (combinations with sold separately pinions allow for 13 different gear ratios from 10.71:1 to 6.28:1) ● Speed Controller: ESC specification (sold separately)
【Items to Purchase Separately】
● Body for M chassis ● 540 type motor ● Tires ● RC Mechanisms: 2-channel proportional set (transmitter, receiver, ESC, low-profile servo recommended) ● Running battery, charger ● Power supply for transmitter. Note: Body, motor, RC units, and batteries are sold separately.
