Kawada M500gt3 Chassis Kit [m5103]

Product Name

KAWADA M500GT3 Chassis Kit [M5103]

Brand Introduction

KAWADA is a renowned Japanese manufacturer of RC cars and models, known for its innovative designs and technical prowess. The brand is loved by many hobbyists for its extensive range of RC products.

Product Description

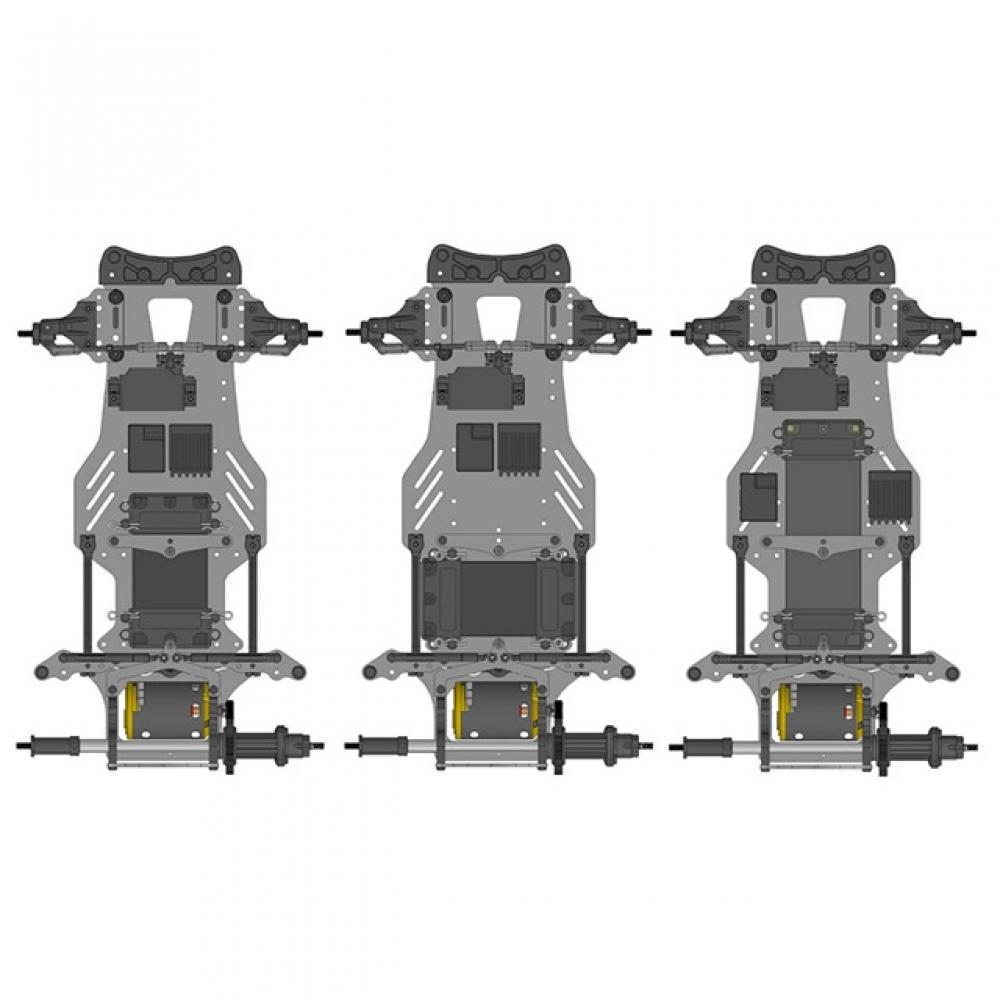

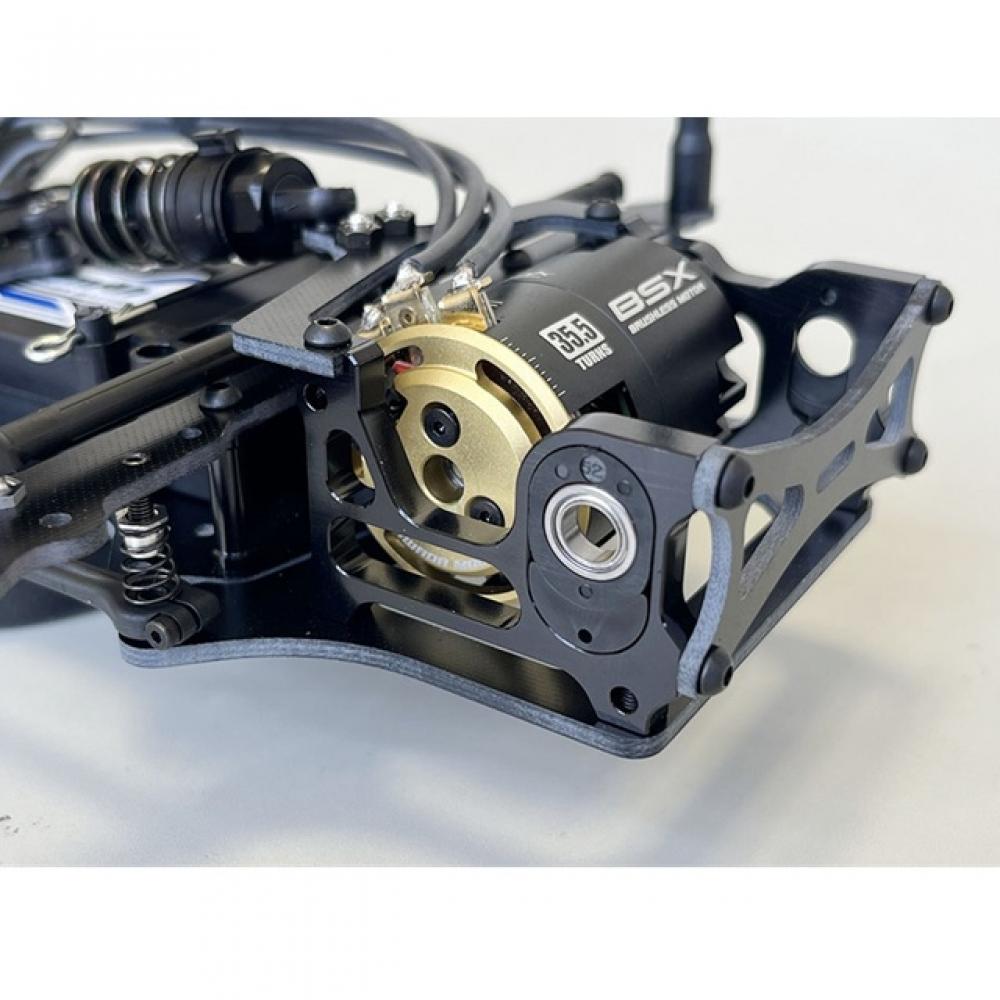

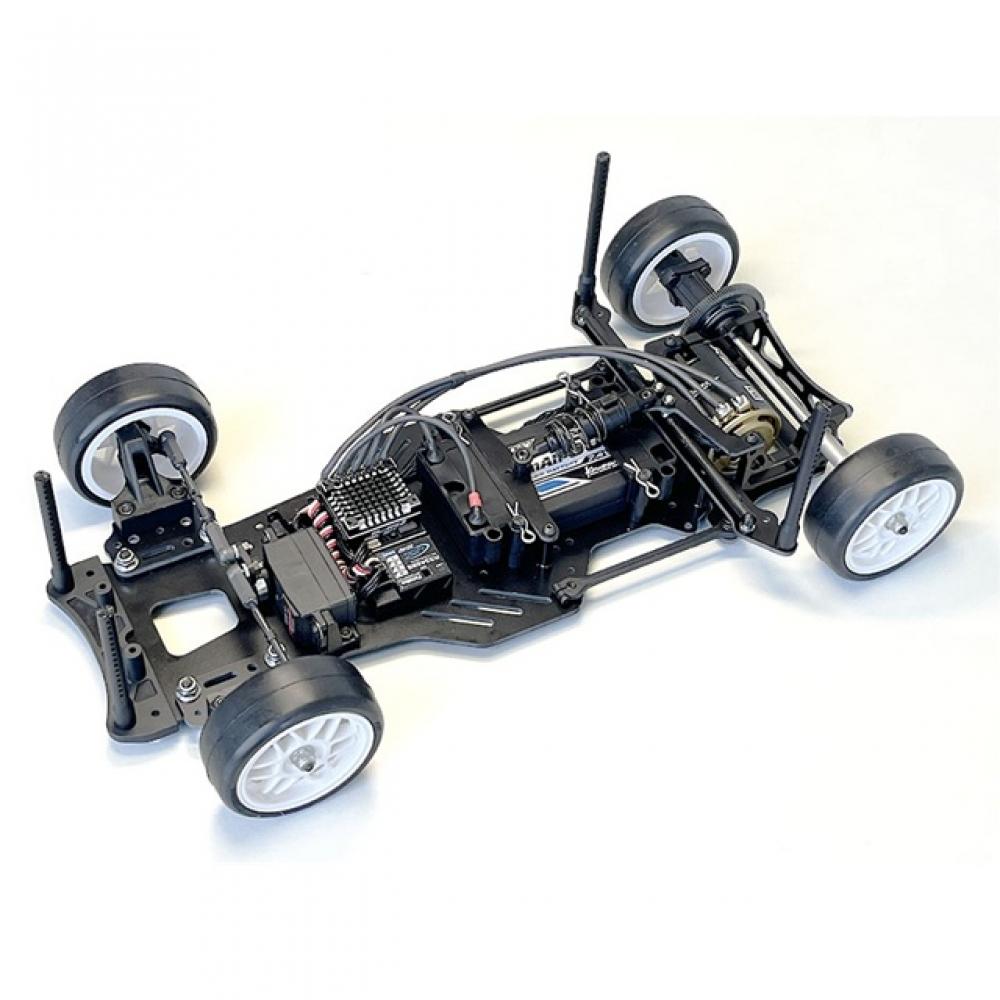

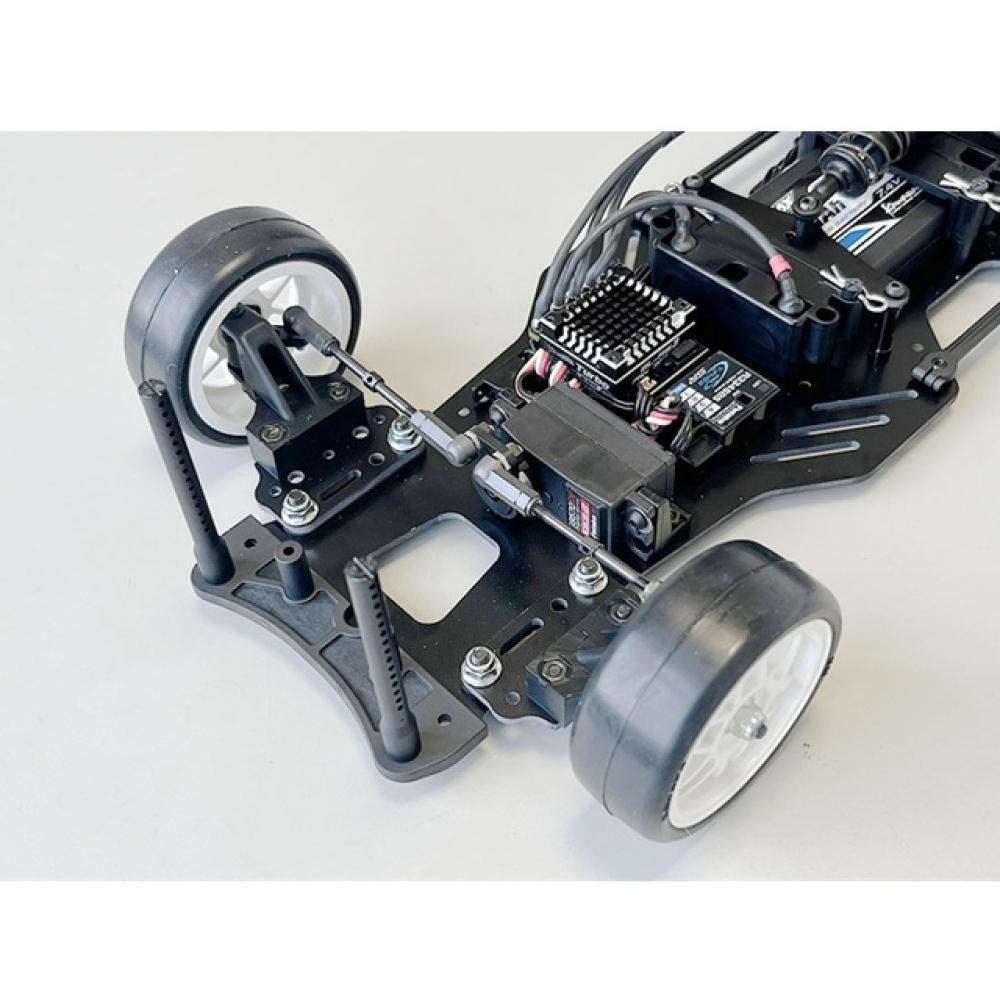

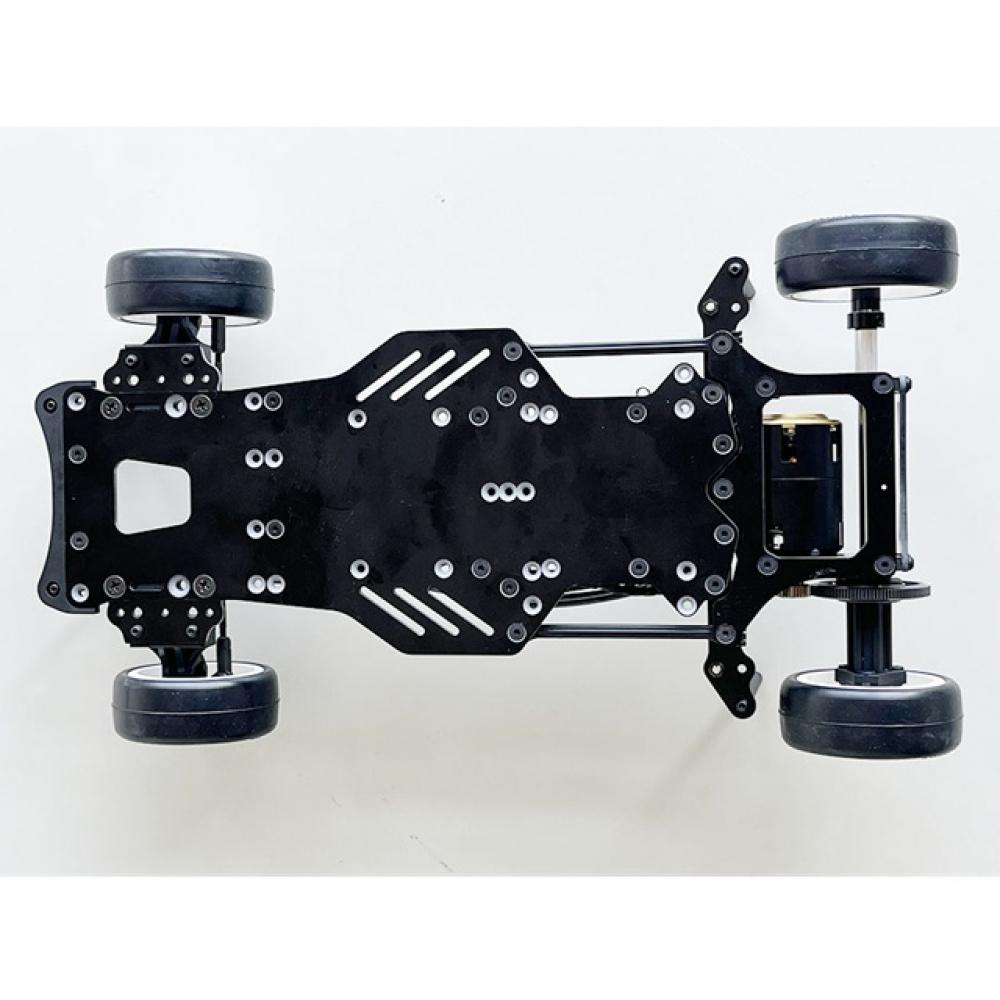

The KAWADA M500GT3 is an easier and innovative model, allowing for enjoyable light running of the direct drive car thanks to its TC rubber tires. The front suspension utilizes a simple Elliott suspension that requires no complicated settings. While the rear suspension maintains an excellent road tracking with a link system, it has newly adopted a long hole type ball seat. This adjustment allows assembly for smoother motion, making it accessible to anyone. The battery was traditionally fixed by glass tape, but now comes with a plastic battery holder for a safer and easier setup. Experience the evolved M500GT3 now!

Usage Instructions

The M500GT3 is a 1/10 scale model that can be assembled with various parts, requiring the following additional items:

- 2-channel prop set (including transmitter, receiver, speed controller, and servo)

- Running battery (thickness below 20mm)

- Battery charger

- 540 size motor (sold separately)

- Wheels and tires for 1/10 scale touring cars

- Running body (1/10 scale 190mm width)

- Silicone oil (#500, #30,000)

- Differential lubricant for ball diff

Specifications

Overall Length: 320mm

Overall Width: 188mm

Wheelbase: 260mm

Running Weight: 1.05kg (when equipped with 1S size Li-Po)

Differential Type: Ball Diff

Drive Type: Direct Drive

Suspension Type: Front: Elliott Suspension / Rear: Link Suspension

Motor: 540 Type (sold separately)

Cautions

- Tools required for assembly: 1.5mm, 2.0mm, 2.5mm hex wrenches, plus driver (large & small), hobby wrench (5.5mm, 7mm box wrench), nippers, radio pliers, cutter knife, φ3mm drill, calipers, and cleaner spray.

- The battery installation is based on a standard thickness of 20mm or less, but thicker batteries can also be accommodated with shim height adjustments.

To request a return or exchange, please note that it is mandatory to provide a video of the unpacking of the package.
