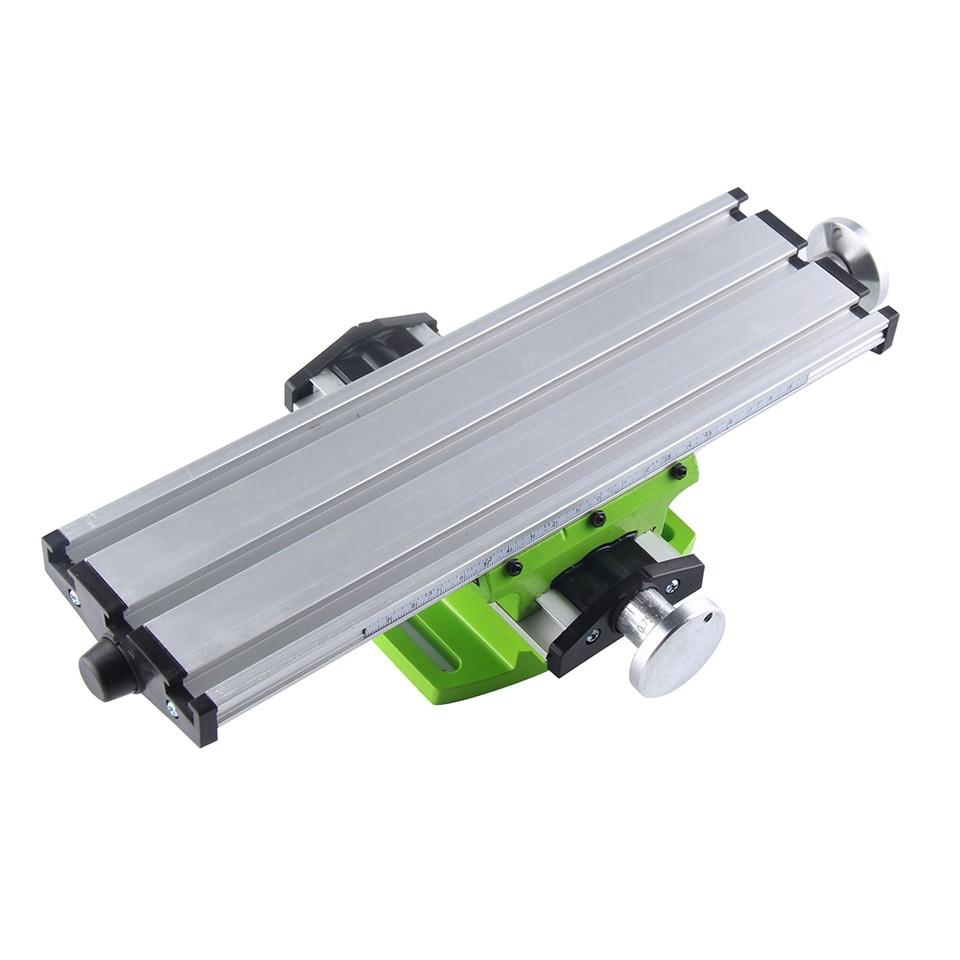

Mini Cross Slide Table Milling Machine Adjustable X-Y Axis for Bench Drill

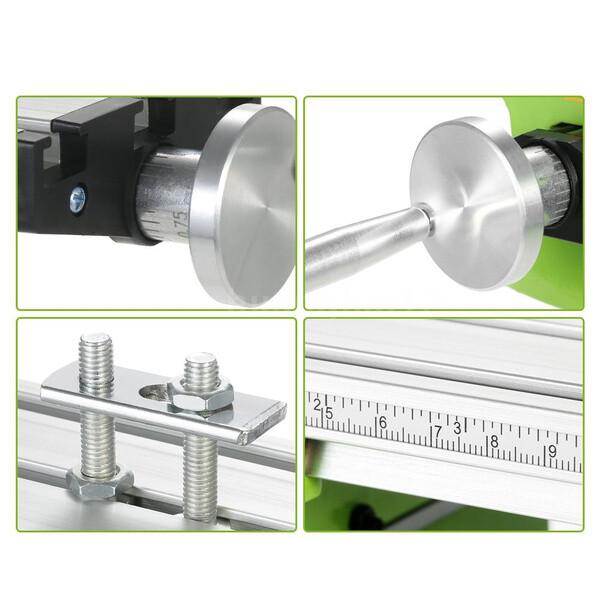

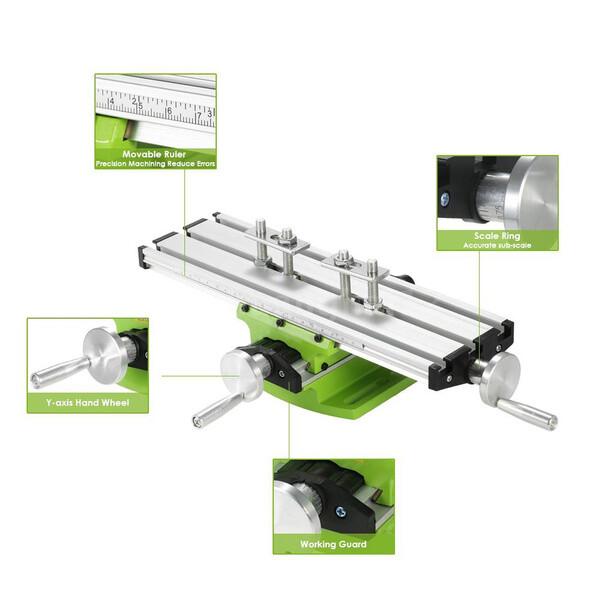

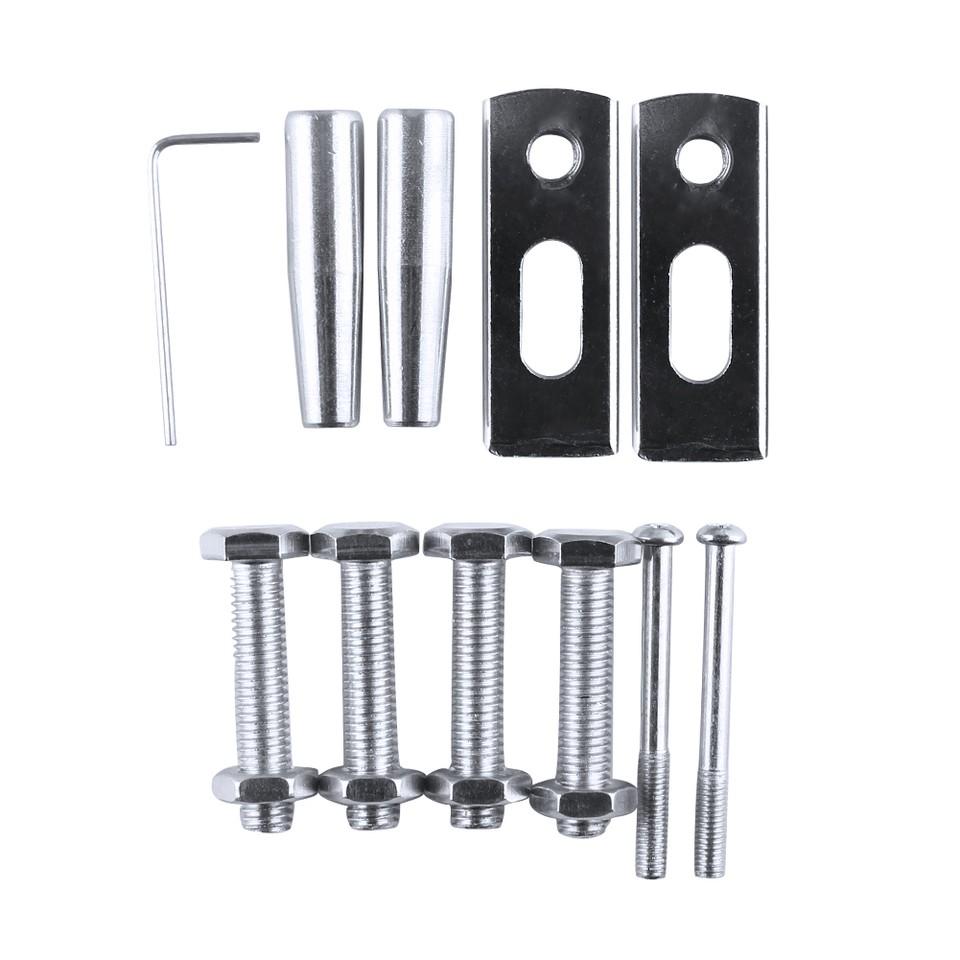

Description: 1. Mini compound bench BG6300.The mini compound bench is especially suitable for use with the drill stand BG6112,BG6109B and bench drill machine of the BG5158 series.It may also be used with other suitable machine.The table is made of aluminium with adjustable dovetail gibs,ensuring minimum play. 2. Three T-slots of the standard size 15x 8x 6mm are provided.The movable ruler scale eases the positioning of the table.Zero adjustable handwheels are calibrated to provide 1.25mm movement per revolution.One devision equals 0.05mm.Travel is 200mm on the X axis and 50mm on the Y axis.Table size is 310x 90mm with overall height 80mm.Two clamps are included.

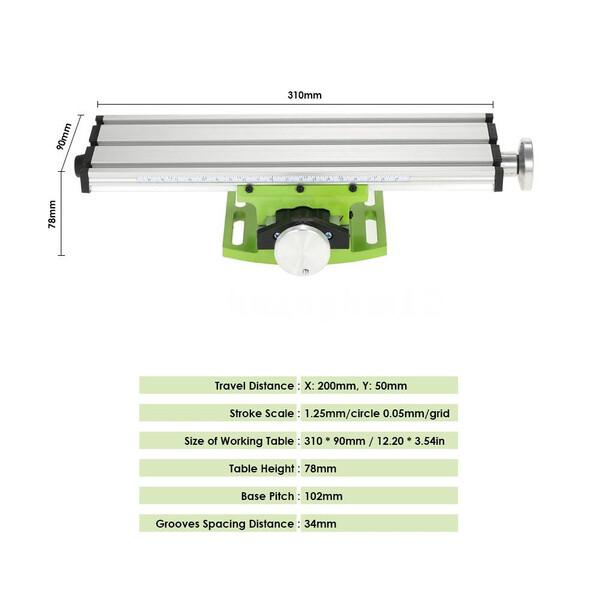

Parameter: Working desk: 310x 90mm X stroke: 200mm Y stroke: 50mm Groove clearance: 34mm

Package Included: 1 x Set of Compound bench.

Notes: 1. Please allow for a 1-3 cm variance due to manual measurement. 2. Should you have any queries, please do not hesitate to get in touch. We’ll be more than happy to assist you promptly. Thank you!
